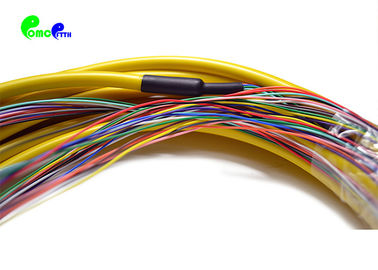

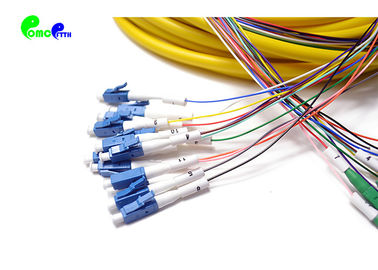

12F Pre-terminated patch cable LC APC - LC UPC G657A1 straight fanout 900um cable 3m LSZH

  • 12F Pre-terminated patch cable LC APC - LC UPC G657A1 straight fanout 900um cable 3m LSZH
  • 12F Pre-terminated patch cable LC APC - LC UPC G657A1 straight fanout 900um cable 3m LSZH
  • 12F Pre-terminated patch cable LC APC - LC UPC G657A1 straight fanout 900um cable 3m LSZH
  • 12F Pre-terminated patch cable LC APC - LC UPC G657A1 straight fanout 900um cable 3m LSZH
Place of Origin China
Brand Name OEM
Certification ROHS and ISO
Model Number 12F LC-LC Fiber Patch Cable
Minimum Order Quantity 5pcs
Price Negotiable
Packaging Details One piece in a plastic bag, several pieces in the carton of 54*39*35cm carton
Delivery Time 3-7days
Payment Terms Western Union, T/T
Supply Ability 10000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name LC APC-LC UPC 12F Fiber Patch Cable Polish Type UPC/APC
Fiber Mode OS2 9/125μm Wavelength 1310/1550nm
Fiber Count 12F Cable Jacket PVC/LSZH/OFNP
Insertion Loss ≤0.3 DB Return Loss UPC≥50 DB, APC≥60 DB
Breakout Diameter 0.9mm Operating Temperature -40~75°C
High Light

fiber optic jumpers

,

fibre optic patch leads
Leave a Message
Product Description

12F Pre-terminated Patch Cable LC APC - LC UPC G657A1 Straight Fanout 900um Cable 3m LSZH



Pre-terminated Patch cable also be called Bunch/Distribution patch cable or Mini breakout patch cable. It’s a installation cables that are suitable for laying in buildings, primarily in cable conduits and cable trays. They are designed for direct connector assembly with no need for splice connectors.



This 9/125 OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G/400G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.





OMC’s Patch cables are manufactured and tested in compliance with TIA 604 (FOCIS), IEC 61754 and YD/T industry standards. OM1, OM2, OM3, OM4, OM5 or OS2 fiber types to meet the demand of Gigabit Ethernet, 10 Gigabit Ethernet and high-speed Fiber Channel. Every termination through rigorous parameter test to ensure the highest in network performance.



Connector’s Standard:



LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.





Optical Specification



Connector LC Jacket OD(mm)

6.3mm
Fiber Mode 9/125μm Jacket Color

SM:Yellow/Blue/White
Polish UPC,APC Wavelength

SM:1310/1550nm
Cable Type Multi-fibers Breakout 0.9mm unit cable Jacket Material LSZH/PVC
Insertion loss ≤0.3dB(IEC Grade C) Insertion loss ≤0.12dB(IEC Grade B)
Return loss

SM UPC ≥ 50dB(min)

SM APC ≥ 60dB(min)

 Interchangeability &Vibration ≤0.2dB
Operating temperature -40~75°C Storage temperature -45~85°C





End-face Quality (SM)



Zone Range (μm) Scratches Defects Reference
A: Core 0 to 25 None None IEC 61300-3-35:2015
B: Cladding 25 to 115 None None
C: Adhesive 115 to 135 None None
D: Contact 135 to 250 None None
E: Rest of ferrule None None

Length Tolerance

12F Pre-terminated patch cable LC APC - LC UPC G657A1 straight fanout 900um cable 3m LSZH 0



Overall Length(L)(m) length of tolerance(cm)
0<L<1 +5/-0
1<L<10 +10/-0
10<L<40 +15/-0
40<L

+0.5% x L/-0



Company Information:



OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.

dustfree wrokshop.jpg


High Quality Fibre Optic Cable Guarantee



Comprehensive performance testing makes sure the cable work more securely and data transmission more reliable and stable in your network.

Quality contorl.jpg



Packaging


package-patch cord.jpg





Certification:

Our products are confirmed by these certifications

12F Pre-terminated patch cable LC APC - LC UPC G657A1 straight fanout 900um cable 3m LSZH 5




12F Pre-terminated patch cable LC APC - LC UPC G657A1 straight fanout 900um cable 3m LSZH 7


FAQ:



1. Are you the real factory?

Yes,we are the real factory more than 10 years



2. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.



3. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.



4. What is your delivery time?

Within 24 hours for normal kinds of fiber optic cable;

3~5 days for fiber optic patch cords with 10000 connectors.



5. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.



6. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.



7. Payment

For large orders: T/T, L/C

For small orders: T/T,Western Union and Paypal are acceptable
