Polarity Switchable Fiber Patch Cord Uniboot LC-LC Duplex with Push / Pull Tap SM Uni-tube 2.0mm Patch Cable

Place of Origin China
Brand Name OEM or OMC
Certification ROHS and ISO
Model Number Uniboot LC-LC Polarity Switchable Fiber Patch Cord
Minimum Order Quantity 10
Price Negotiable
Packaging Details One piece in a plastic bag, several pieces in the carton of 54*39*35cm carton
Delivery Time 3-7days
Payment Terms Western Union, T/T, Paypal
Supply Ability 100000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Products Uniboot LC-LC Polarity Switchable Fiber Patch Cord Polish Type UPC
Fiber Count Duplex Fiber Mode 1310/1550nm
Insertion Loss ≤0.3dB(IEC Grade C); ≤0.12dB(IEC Grade B) Return Loss SM UPC ≥ 50dB(min)
AB Polarity Switchable Available Cable Diameter 1.6mm, 1.8mm, 2.0mm,
Cable Jacket LSZH/PVC Operating Temperature -40-85℃
High Light

fiber optic patch cord


fiber optic jumpers

Leave a Message
Product Description

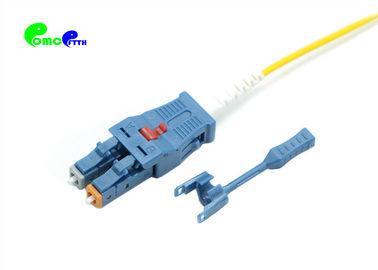

Polarity Switchable Fiber Patch Cord Uniboot LC-LC Duplex with Push / Pull Tap SM Uni-tube 2.0mm Patch Cable​



The Polarity Switchable uniboot LC connector With Push/Pull Tap is a Chinese independent intellectual property rights connector. It has a unique design that allows to switch polarity without using any tooling. The Push/Pull Tap is very easy to grab to Insert and pull out from LC adapter. One more Great design is that the tap can be removed after insertion. Makes the installation Job become easy and high efficient.


The Uni-boot LC patch cable utilizes a special “round duplex” cable that allows duplex transmission within a single 2mm cable ,cable materials including LSZH, Plenum and Riser.


Our Polarity Switchable uniboot LC fiber patch cable reduces cable management space by up to 68% compared to standard patch cables. It reduces cable management space comparing to standard patch cables. As a result of these features our uniboot patch cable offers improved airflow and visibility of equipment within a high density network en- vironment.


OMC's LC Uniboot cable assemblies offer the best solution for high-density applications, data centers, interconnect and cross connector, private networks and premise installations.


Products details.





Optical Specifications:


Fiber Connector

Push/Pull Tab Uniboot LC Duplex

Fiber Type


Cable OD&Jacket



Fiber Counts 2 Fibers
Insertion Loss

≤0.3dB(IEC Grade C)

≤0.12dB(IEC Grade B)

Return Loss SM UPC ≥ 50dB(min) SM APC ≥ 60dB(min) MM PC ≥ 35dB(min)
Pull-out Force 100N Durability 500 Cycles
AB Polarity Switchable Available Operating Temperature -40 to + 85°C


Polarity Switchable Fiber Patch Cord Uniboot LC-LC Duplex with Push / Pull Tap SM Uni-tube 2.0mm Patch Cable 1

Geometric Specification( if Customer requested)


Items Parameter
Polishing PC APC
ROC LC 7~ 25 5 ~ 12
Apex Offset ≤ 50
Fiber Spherical Height ±100
Angle ± 0.5 8 ± 0.5


End-face Quality (SM)

Polarity Switchable Fiber Patch Cord Uniboot LC-LC Duplex with Push / Pull Tap SM Uni-tube 2.0mm Patch Cable 2SM UPC


Zone Range (μm) Scratches Defects Reference
A: Core 0 to 25 None None



IEC 61300-3


B: Cladding 25 to 115 None None
C: Adhesive 115 to 135 None None
D: Contact 135 to 250 None None
E: Rest of ferrule None None


Length Tolerance


Overall Length(L)(m) length of tolerance(cm)
0<L<1 +5/-0
1<L<10 +10/-0
10<L<40 +15/-0
40<L +0.5% x L/-0


Product Highlights


Switchable + Uniboot LC Push/Pull tab patch Cable

The duplex LC connector for 2.0mm round cable, which allows the polarity to be switched from A-B to A-A



package-patch cord.jpg


High Quality Fibre Optic Cable Guarantee


Comprehensive performance testing makes sure the cable work more securely and data transmission more reliable and stable in your network.


dustfree wrokshop.jpg


Quality contorl.jpg


Company Information:


OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.







1. Are you the real factory?

Yes,we are the real factory more than 10 years


2. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.


3. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, RoHS raw material suppliers.


4. What is your delivery time?

Within 24 hours for normal kinds of fiber optic cable;

3~5 days for fiber optic patch cords with 10000 connectors.


5. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.


6. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.


7. Payment

For large orders: T/T, L/C

For small orders: T/T,Western Union and Paypal are acceptable.
