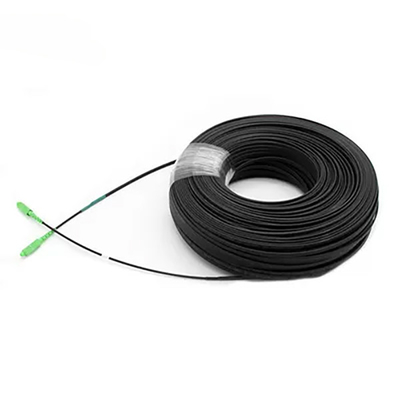

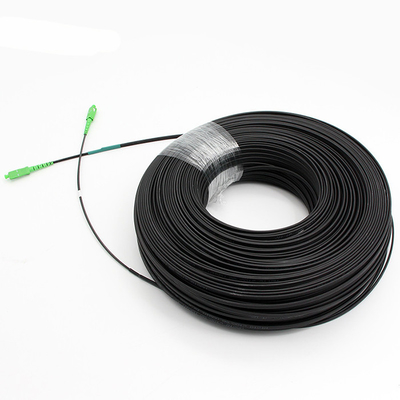

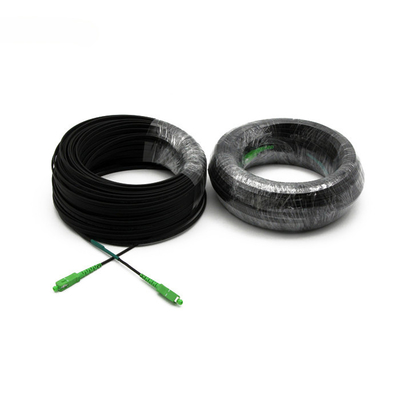

FTTH Outdoor Fiber Drop Patch Cable SC APC - SC APC G657A1 Self-Supporting Aerial Simplex Drop cable LSZH

Place of Origin China
Brand Name OEM or OMC
Certification ROHS and ISO
Model Number SC APC Single Mode Drop Cable Patch cord
Minimum Order Quantity 500m
Price Negotiable
Packaging Details One piece in a plastic bag, several pieces in the carton of 54*39*35cm carton
Delivery Time 2-4days
Payment Terms Western Union, T/T, Paypal
Supply Ability 1000000pcs per month
Product Details
Product Name FTTH Aerial Fiber Patch Cable SC APC - SC APC G657A1 Self-Supporting Aerial Simplex Drop Cable LSZH Jacket Outdoor Connertor SC APC
Fiber Count 1 Construction Self-supporting
Fiber Type Single Mode 9/125 Material LSZH Jacket
Insertion Loss ≤0.3dB Return Loss APC≥60dB
Size 2*5mm Application FTTH,CATV,
High Light

fiber optic patch cord

,

fibre optic patch leads

Leave a Message
Product Description

FTTH Aerial Fiber Patch Cable SC APC - SC APC G657A1 Self-Supporting Aerial Simplex Drop cable LSZH Jacket Outdoor usage





It’s a kind of patch cable but assembly with Self-supporting Aerial FTTH Drop Cable. This is a last cable in FTTH project. Used widely between Fact plate, terminal box, ONU tec. With easy accessibility to the fiber and simple installation, FTTH cable can be directly connected to the homes. It is suitable for connecting with communication equipment and used as access building cable in premises distribution system. The optical fibers are positioned in the center of cable and two parallel Fiber Reinforce Plastic (FRP/KFRP) strength members are placed at the two sides. Then, the cable is completed with LSZH sheath. Also, customers can specify your required connectors.

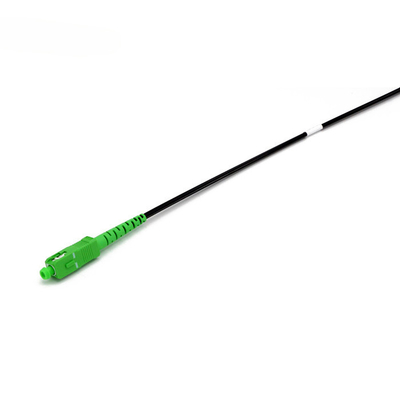

Connector’s Standard:



SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973.


Cable specification:

FTTH Outdoor Fiber Drop Patch Cable SC APC - SC APC G657A1 Self-Supporting Aerial Simplex Drop cable  LSZH 0

Cable Type FTTH Drop Cable Fiber Count 1 Fiber
Construction Self-supporting Fiber Type Singlemode G.657A
Outer Jacket Material LSZH (Black/White) Strength Member Material FRP/KFRP/ Solid Steel wire
Cable Diameter (2.0±0.2)×(5.0±0.2)mm Weight 20kg/km
Tensile Strength (long/short term) 100/200N Crush Load (long/short term) 300/1000 (N/100mm)
Bending Radius (long/short term) 10D/20D (mm) Operating/Storage Temperature -40 to +85 °C





Optical performance.



Cable Type FTTH outdoor/Indoor Pigtail Fiber Count Simplex
Connector SC APC  Jacket Material Low Smoke Zero Halogen
Cable Diameter 2.0x5.0mm Fiber Type Singlemode G657A1
Insertion Loss ≤0.3dB Return Loss ≥30dB
Strength Member Material FRP Tensile Strength (long/short term) 300/600N
Crush Load (long/short term) 1100/2200 (N/100mm) Bending Radius (long/short term) 10D/20D (mm)
Installation Temperature -10 to +60°C Operation Temperature -10 to +60°C

Test Item Test Condition Value(dB)
UPC APC
Optical Performance Insertion Loss 1310nm LED light source <0.3 <0.3
Return Loss 1310nm LED light source >50 >60
Environmental Performance (Max. Insertion Loss change) High temperature +85°C168 hours <0.2
Temperature Cycle -40-+75°C, 21 Cycles 168 hours <0.2
Humidity Aging +75°C, 95%R.H,168 hours <0.2
Humidity/Condensation Cycling -10°C-+65°C, 90%~100%RH, 14 cycles 168 hours <0.2
Mechanical Performance ( Max. Insertion Loss change) Vibration 10-55Hz, 1.5mm(p-p) <0.2
Flex 0.9kg,-90o~+90o repeat for 100 cycles <0.2
Torsion 1.35kg,90o~+90o ,10times <0.2
Withstand tensile 90N,10min <0.2
Drop H=1.5M,Total of 8 drops <0.2
Exchangeability Randomly <0.2
Durability 500 times <0.2



Main Mechanical and Environmental Performances



Items Test Standard Specified Value Requirements
Tension IEC 60794-1-2-E1 See Technical data

Additional attenuation:

≤0.4dB after test

Crush IEC 60794-1-2-E3 See Technical data

Additional attenuation:

≤0.4dB after test

Impact IEC 60794-1-2-E4

R=300mm, 10Nm,

one in 3 different places

Additional attenuation:

≤0.4dB after test

Repeated Bending IEC 60794-1-2-E6 R=30H

Additional attenuation:

≤0.4dB after test

Temperature Cycling IEC 60794-1-2-F1 -40°C ~+70°C

Attenuation change:

≤0.4dB/km after test



Ideal Solution by Using Self-supporting FTTH Drop Cable



A high-capacity FTTH network gives you opportunities to build a competitive advantage and maintain an eco-sustainable network that consumes less power. With simple structure and light weight, self-supporting FTTH drop cable is highly recommended for the connection of outdoor and indoor cabling.

FTTH Outdoor Fiber Drop Patch Cable SC APC - SC APC G657A1 Self-Supporting Aerial Simplex Drop cable  LSZH 1

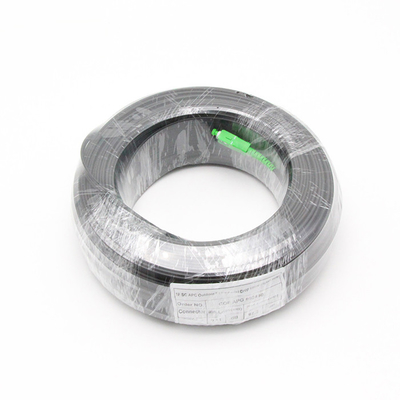

Packaging

This easily taken and well-protected fiber patch cable package has been labelled and marked by OMC as default .Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods Qty . Packing can be customized.


FTTH Outdoor Fiber Drop Patch Cable SC APC - SC APC G657A1 Self-Supporting Aerial Simplex Drop cable  LSZH 2

High Quality Fibre Optic Cable Guarantee



Comprehensive performance testing makes sure the cable work more securely and data transmission more reliable and stable in your network.

dustfree wrokshop.jpg
