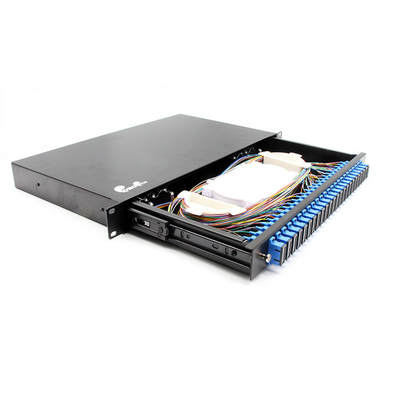

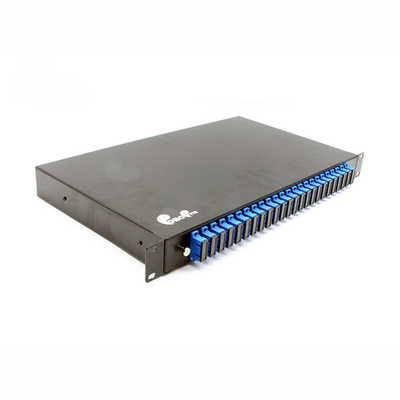

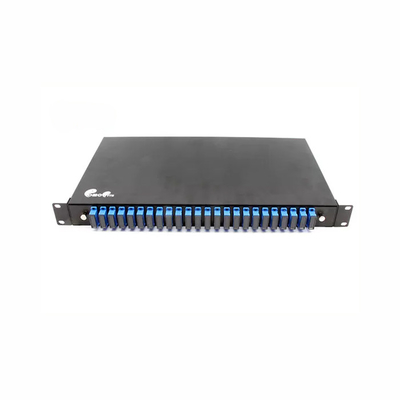

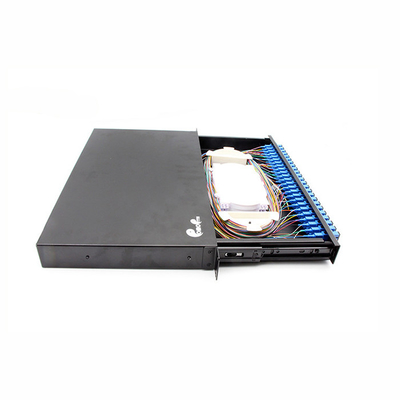

19" 1U 24 Ports 48 Fibers Rack Mount ODF Sliding Rail Optical Distribution Frame SC Duplex Patch Panel

Place of Origin China
Brand Name OEM or OMC
Certification ROHS and ISO
Model Number 19" 1U SC Sliding Rail Patch panel
Minimum Order Quantity 5pcs
Price Negotiable
Packaging Details One piece in a box, several pieces in the carton of 54*39*35cm carton
Delivery Time 3-7days
Payment Terms L/C, T/T, Western Union, MoneyGram
Supply Ability 1000000pcs per month
Product Details
Product Name 19" 1U 24 Ports 48 Fibers Rack Mount ODF Sliding Rail Optical Distribution Frame SC Duplex Patch Panel Fiber Mode SM 9/125μm
Adapter Type SC Duplex Return Loss SC APC≥60dB; SC PC ≥35dB
Insertion Loss SC≤0.3dB Dimensions (HxWxD) 44X482X253mm
Fibers SC 48F/LC 96F Color Black
High Light

Rack Mount Odf 24 Port

,

19" Odf Distribution Frame

,

Rack Mount Odf

Leave a Message
Product Description

19" 1U 24 Ports 48 Fibers Rack Mount ODF Sliding Rail Optical Distribution Frame SC Duplex Patch Panel



The Fiber Optic Patch panel is a kind of fiber optic management products used to distribute and protect the optical fiber links in FTTH Network. It is available for the distribution and terminal connection of various kinds of optical fiber system. These units are available in sizes that fit the most common distribution requirements.



OMC provide is a kind of high quality, micro sized fiber optical Patch panel made of quality cold-rolled steel sheet and undergoes static plastic spraying treatment, which can be used to mount SC/LC/FC/ST/ MPO/E2000 adapter, the box can be installed on the indoor wall and terrace.




Features and Advantages

Made of cold-rolling steel, static spreading-plastic, small dimension and exquisite and easy for operation

The box has a pothook, which is convenient to install and dismantle

The splice tray could be piled one upon another, flexible to turn; the curve radius of the coiled spear fibers should be guaranteed to be over 37.5mm in the splice tray

The box is of unique structure, reasonable layout, and has adequate room for operation

Adjustable clamp seal ring and reinforce configuration, which could adjust different sizes of cables flexibly to make sure the cables are clamp tightly

The indoor type is of excellent seal performance, which could prevent water from entering effectively

Can be installed with SC/LC/FC/ST adapter

Up to 48 cores splice capacity MAX in 1U patch panel

Rack Mount and Sliding drawer design both available



Dimension:



19" 1U 24 Ports 48 Fibers Rack Mount ODF Sliding Rail Optical Distribution Frame SC Duplex Patch Panel 0



Fiber optic patch panel not including the adapters and pigtails. If you need them be installed, please contact us for details

The Full loaded products include: Adapters and pigtails (for reference)



19" 1U 24 Ports 48 Fibers Rack Mount ODF Sliding Rail Optical Distribution Frame SC Duplex Patch Panel 1


Order info:



Panel Type Out port Out port No Loaded or not Panel color
R1-19‘ 1U rack mount patch panel 1-SC Simplex 1-6ports 0-unloaded 1-Grey
S1-19‘ 1U Sliding Drawer patch panel 2- SC Duplex 2-8ports 1-half loaded SM adapter 2-Black
R2-19‘ 2U rack mount patch panel 3- LC Duplex 3-12ports 2- half loaded MM adapter
S2-19‘ 2U Sliding Drawer patch panel 4- LC Quad 4-16ports 3- full loaded SM accessories
  5- FC Simplex 5-24ports 4- full loaded OM1 accessories
  6- ST Simplex 6-48ports 5- full loaded OM2 accessories
      6- full loaded OM3 accessories
      6- full loaded OM3 accessories
