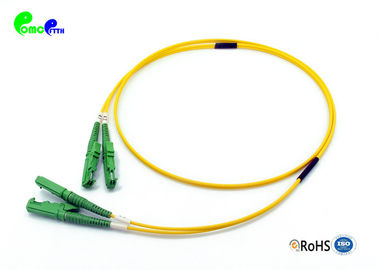

E2000 APC - E2000 APC 2.0mm Duplex Zipcord Patch Cord SM Customized Single Mode Fiber Optic Patch Cables
| Place of Origin | China |
|---|---|
| Brand Name | OEM or OMC |
| Certification | ROHS and ISO |
| Model Number | E2000 APC - E2000 APC DX SM 2.0mm |
| Minimum Order Quantity | 5pcs |
| Price | Negotiable |
| Packaging Details | One piece in a plastic bag, several pieces in the carton of 54*39*35cm carton |
| Delivery Time | 3-7days |
| Payment Terms | Western Union, T/T, Paypal |
| Supply Ability | 1000000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | E2000 APC - E2000 APC DX SM 2.0mm Optical Patch Cord | Insertion Loss | ≤0.3dB(Low Loss) |
|---|---|---|---|
| Return Loss | ≥60dB | Cable OD | 2.0mm |
| Fiber Type | Single Mode 9/125 | Material | PVC/LSZH Jacket |
| Certification | IEC-61754-7; JIS C5982; TIA-604-5(FOCIS5); Telcordia GR-1435-CORE | Polish Type | APC |
| Wavelength | 1310/1550nm | Storage Temperature | -45~85°C |
| High Light | fiber optic jumpers,fibre optic patch leads |
||
Product Description
E2000 APC - E2000 APC 2.0mm Duplex Zipcord Patch Cord SM Customized Single Mode Fiber Optic Patch Cables
Patch Cords are used to provide optical connection for fiber optic electronics. The use of the patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices. The patch cord can be used in interconnect or cross-connect path connecting the incoming fibers to the electronic equipment and providing patching within the fiber paths. Patch Cords include simplex, duplex and Multi-fibers assemblies.
OMC’s Patch cables are manufactured and tested in compliance with TIA 604 (FOCIS), IEC 61754 and YD/T industry standards. OM1, OM2, OM3, OM4, OM5 or OS2 fiber types to meet the demand of Gigabit Ethernet, 10 Gigabit
Ethernet and high speed Fiber Channel. Every termination through rigorous parameter test to ensure the highest in network performance.
This 9/125 OS2 single mode fiber optic cable is ideal for connecting 1G/10G/40G/100G/400G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.
Connector’s Standard
E2000: IEC61754-15
Description
Premium Performance Fiber Optic Cable
Fiber optic cables are used for connections to data center, CATV, fiber test equipment, LAN, telecommunication networks, FTTx, communication rooms, fiber optic communication system, defense combat readiness, etc.
APC (8-Degree Angle)
The angled end face of the APC connector causes reflected light to reflect at an angle into the cladding. APC connectors are Preferred for RF video signal transport and FTTx applications.
Customized Jacket Material and Cable Diameter
MPO patch cord’s Specification:
| Connector | E2000 | Jacket OD(mm) |
2.0x4.1 |
| Fiber Mode | 9/125μm | Jacket Color |
SM:Yellow/Blue/White; |
| Polish | APC | Wavelength |
SM:1310/1550nm |
| Cable Type | Zip-cord Duplex (Fig 8 Duplex) | Jacket Material | LSZH/PVC/OFNR/OFNP |
| Insertion loss | ≤0.3dB(IEC Grade C) | Insertion loss | ≤0.12dB(IEC Grade B) |
| Return loss |
SM APC ≥ 60dB(min) |
Interchangeability &Vibration | ≤0.2dB |
| Operating temperature | -40~75°C | Storage temperature | -45~85°C |
High Quality Fibre Optic Cable Guarantee
Comprehensive performance testing makes sure the cable work more securely and data transmission more reliable and stable in your network.
Packaging & Delivery:
Packaging Details
1. Fumigation of wood drum, plywooden drum or wooden drum
2. carton box
3. customized
Port: Shenzhen
Application:
1. CATV
2. Active dvice termination
3. Telecommunication networks
4. Metro
5. Local Area Networks(LANs)
6. Data Processing networks
7. Test Equipment
Packaging
This easily taken and well-protected fiber patch cable package has been labelled and marked by OMC as default
.Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods
Qty . Packing can be customized.
1. self-seal PE bag 2. Bubble bag 3. Paper carton 4 .fumig-free Pallet
Company Information:
OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.
FAQ:
1. Are you the real factory?
Yes,we are the real factory more than 10 years
2. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;
Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.
3. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
4. What is your delivery time?
Within 24 hours for normal kinds of fiber optic cable;
3~5 days for fiber optic patch cords with 10000 connectors.
5. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.
6. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.
7. Payment
For large orders: T/T, L/C
For small orders: T/T,Western Union and Paypal are acceptable
