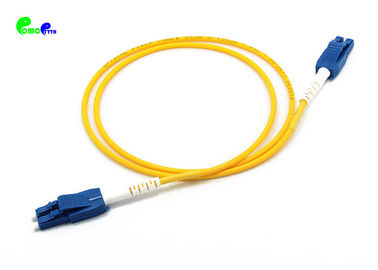

Polarity Switchable Blue Color Uniboot LC / UPC - LC / UPC SM Dual Duplex 3.0 mm Fiber Optic Patch Cord
|Place of Origin||China|
|Certification||ROHS and ISO|
|Model Number||Blue Uniboot LC UPC-LC UPC SM DX 3.0mm|
|Minimum Order Quantity||1pcs|
|Packaging Details||one piece per PE bag, Several pieces in a carton of 54*39*35cm Other size of carton also available|
|Delivery Time||5-8 working days|
|Payment Terms||L/C, T/T, Western Union|
|Supply Ability||100000 pcs per month|
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Product Name||Blue Uniboot LC UPC-LC UPC SM DX 3.0mm Optical Patch Cord||Quality Level||IEC Grade C And IEC Grade B|
|Insertion Loss||<0.2dB(Typical), 0.3dB (Max)||Return Loss||>50dB|
|100% 3D Interference Tested||Available||Clean End Face Ferrule||100% Clean,no Dust, No Water,no Scratch|
|Standard||Telcordia GR-326.Core||Company Certification||ISO 9001:2008|
|Cable||G652D, G655, G657, OM1, OM2, OM3, OM4 Etc.||Cable Size||0.9mm, 1.2mm, 1.6mm, 2.0mm, And 2.8mm|
fiber optic patch cord,
fiber optic jumpers
Uni-boot LC-LC Duplex Fiber Patch Cord V2
Pull Tab Uniboot LC to Pull Tab Uniboot LC
|2.0mm/3.0mm/3.5mm PVC/ LSZH||
≤0.3dB(IEC Grade C)
≤0.12dB(IEC Grade B)
|SM UPC ≥ 50dB(min) SM APC ≥ 60dB(min)|
|Pull-out Force||100N||Durability||500 Cycles|
|AB Polarity Switchable||Available||Operating Temperature||-40 to + 85°C|
Geometric Specification( if Customer requested)
|ROC||LC||7~ 25||5 ~ 12|
|Apex Offset||≤ 50|
|Fiber Spherical Height||±100|
|Angle||± 0.5||8 ± 0.5|
Connect Insertion Loss
End-face Quality (SM)
|A: Core||0 to 25||None||None||
|B: Cladding||25 to 115||None||None|
|C: Adhesive||115 to 135||None||None|
|D: Contact||135 to 250||None||None|
|E: Rest of ferrule||None||None|
|Overall Length(L)(m)||length of tolerance(cm)|
|40<L||+0.5% x L/-0|
High-Quality & More Compact- 60% Increase in Density
Uniboot Cable VS. Standard Cable
Uniboot cable has thinner body and can reduce more surface area than standard cable.
This easily taken and well-protected fiber patch cable package has been labelled and marked by OMC as de-
fault .Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods Qty . Packing can be customized.
OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.
High Quality Fibre Optic Cable Guarantee
Comprehensive performance testing makes sure the cable work more securely and data transmission more reliable and stable in your network.
1. Are you the real factory?
Yes,we are the real factory more than 10 years
2. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;
Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.
3. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
4. What is your delivery time?
Within 24 hours for normal kinds of fiber optic cable;
3~5 days for fiber optic patch cords with 10000 connectors.
5. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.
6. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.
For large orders: T/T, L/C
For small orders: T/T,Western Union and Paypal are acceptable.
