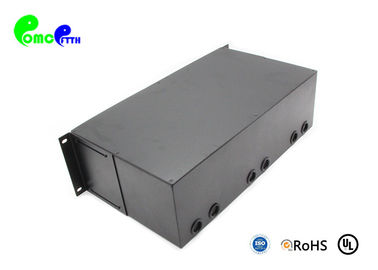

Max Capacity 144F ODF Patch Panel With Cold Rolling Steel Material

Place of Origin China
Brand Name OMC or OEM
Certification ISO9001:2008,ROHS
Model Number OMC-JJ-SC24S-3U
Minimum Order Quantity 10 units
Price Negotiation
Packaging Details Carton or customized
Delivery Time 5~8 work days
Payment Terms T/T, Western Union, MoneyGram, L/C Paypal
Supply Ability 100000
Product Details
Material Cold-rolling Steel Max Capacity 144 Cores
Connector Type SC/LC/FC/ST Type Rack Mount Or Sliding
Color Black Or White Dimension 480*250*133.5
Service OEM
High Light

ODF fiber optic patch panel

,

ODF optical fiber distribution frame

,

144F ODF Patch Panel

Leave a Message
Product Description

Max Capacity 144F ODF Patch Panel With Cold Rolling Steel Material



Product Description



The Fiber Optic Patch panel is a kind of fiber optic management products used to distribute and protect the optical fiber links in FTTH Network. It is available for the distribution and terminal connection of various kinds of optical fiber system. These units are available in sizes that fit the most common distribution requirements.



OMC provide is a kind of high quality, micro sized fiber optical Patch panel made of quality cold-rolled steel sheet and undergoes static plastic spraying treatment, which can be used to mount SC/LC/FC/ST adapter, the box can be installed on the indoor wall and terrace.

Features

Ø  Made of cold-rolling steel, static spreading-plastic, small dimension and exquisite and easy for operation

Ø  The box has a pothook, which is convenient to install and dismantle

Ø  The splice tray could be piled one upon another, flexible to turn; the curve radius of the coiled spear fibers should be guaranteed to be over 37.5mm in the splice tray

Ø  The box is of unique structure, reasonable layout, and has adequate room for operation

Ø  Adjustable clamp seal ring and reinforce configuration, which could adjust different sizes of cables flexibly to make sure the cables are clamp tightly

Ø  The indoor type is of excellent seal performance, which could prevent water from entering effectively

Ø  Can be installed with LC adapter

Ø  Up to 144 cores splice capacity MAX

Ø  Rack Mount and Sliding design both available

Detailed Images

 Max Capacity 144F ODF Patch Panel With Cold Rolling Steel Material 0

Full loaded product

 Max Capacity 144F ODF Patch Panel With Cold Rolling Steel Material 1

Order info



Part No.

Dimension(mm)

Max capacity(cores)

Remark

OMC-JJ-SC24S-3U

480*250*133.5

480*300*133.5

72

Adopt SC Simplex adaptor, Rack Mount

OMC-CL-SC24S-3U

480*250*133.5

480*300*133.5

72

Adopt SC Simplex adaptor, Sliding design

OMC-JJ-SC24D-3U

480*250*133.5

480*300*133.5

144

Adopt SC Duplex adaptor, Rack Mount

OMC-CL-SC24D-3U

480*250*133.5

480*300*133.5

144

Adopt SC Duplex adaptor, Sliding design

Kind reminder



Fiber optic patch panel not including the adapters and pigtails. If you need them be installed, please contact us for details, we can make it for you with reasonable price. Thank you!
