Water - Proof Fiber Optic Cable Joint Closure For Fusion / Mechanical Splice

China Water - Proof Fiber Optic Cable Joint Closure For Fusion / Mechanical Splice supplier
Water - Proof Fiber Optic Cable Joint Closure For Fusion / Mechanical Splice supplier Water - Proof Fiber Optic Cable Joint Closure For Fusion / Mechanical Splice supplier

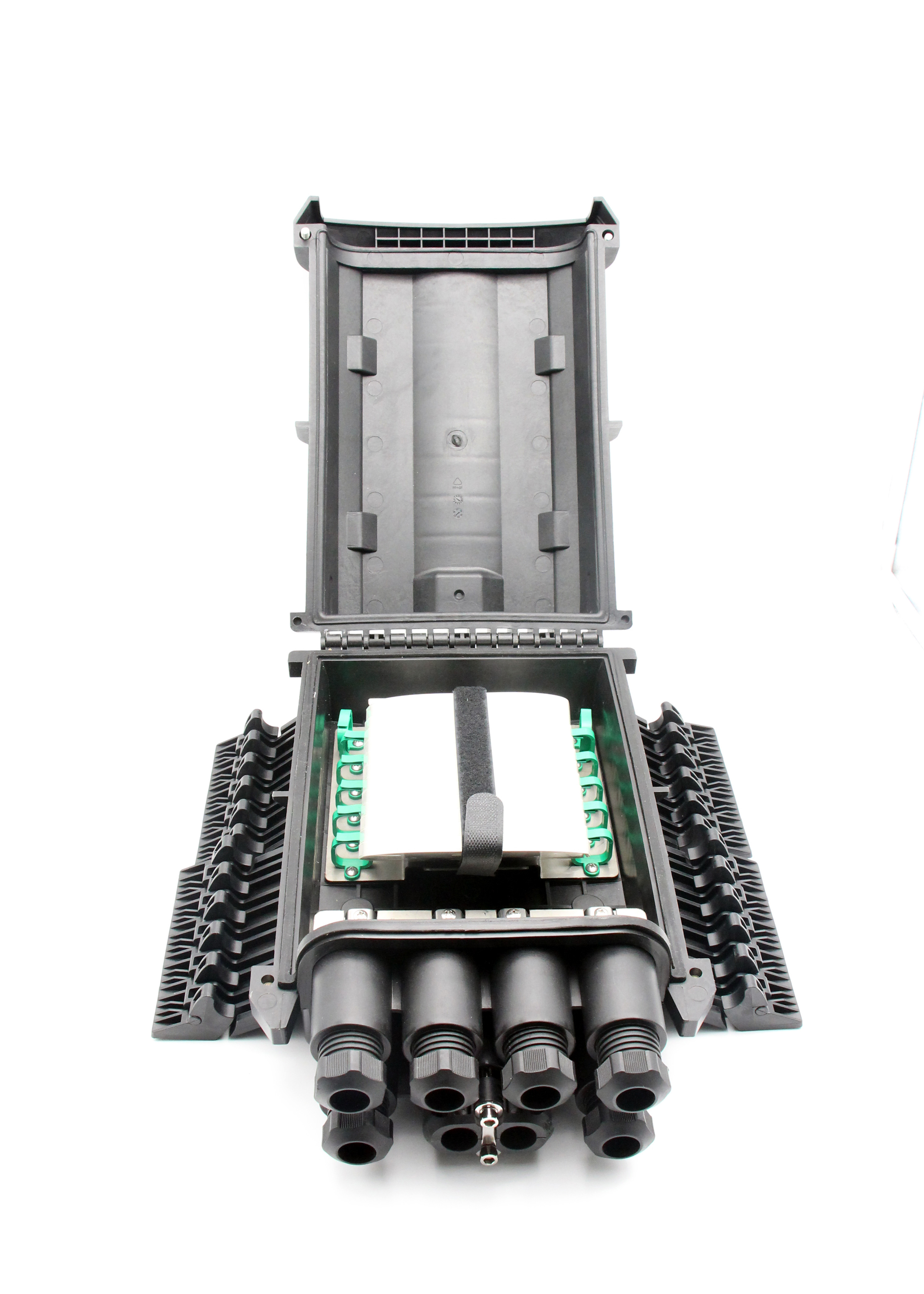

Large Image :  Water - Proof Fiber Optic Cable Joint Closure For Fusion / Mechanical Splice

Product Details:

Place of Origin: China
Brand Name: OMC
Model Number: Fiber Optic Closure

Payment & Shipping Terms:

Minimum Order Quantity: 10 pieces
Contact Now
Detailed Product Description

Fiber optic splice&splitter Closure



Fiber optic splice&splitter Closure, which made of Modified polymer plastic, It is able to hold up to 16/24 subscribers and 96 splicing points as closure. Itis used as a splicing closure and a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box. Features with ruggedness, which is tested under harsh conditions and stand up to even the most severe condition of moisture, vibration and extreme temperatures. Humanized design helps user get better experience and safer operating environment.   FATC-24B.png

Features:

· Water-proof design with IP-68 Protection level.

· Integrated with flap-up splice cassette and adaptor holder.

· Impact test:IK10,Pull Force:100N,Full rugged design

· All stainless metal plate and anti-rusting bolts,nuts.

· Fiber bend radius control more than 40mm.

· Suitable for the fusion splice or mechanical splice.

· Mechanical sealing structure and mid-span cable entry.





  Specification



Model

FATC-24A

FATC-16A

FATC-24B

Adapter

24pcs of SC

16pcs of SC

24pcs of SC

Cable Ports

1 uncut port

1 uncut port

2 round ports

1 uncut port

2 round ports

Applicable cable OD

10-17.5mm

10-17.5mm

8-17.5mm

10-17.5mm

8-17.5mm

Drop cable ports

24 ports

16 ports

24 ports

Applicable cable OD

2x3mm FTTH Drop cable, 2x5mm Figure 8 FTTH drop cable

Dimension

385*245*130mm

385*245*155mm

Material

Modified polymer plastic

Color

Black

Max Splicing Capacity

96Fibers(4Trays, 24Fibers/Tray)

Applicable Splitter

1pcs of 1x16 PLC splitter or 2pcs of 1x8 PLC splitter

IP Grade

IP 68

Impact test

K10

Pull Force

100N

Midspan Entry

YES

Storage(Tube/Micro cable)

YES

Net weight (Kg)

4kg

Gross weigth (Kg)

5kg

Packing

540*410*375mm (4pcs per carton)



Standard Accessories

Splice cassette and cable management tool, installation nuts and bolts, protection sleeves, hose clamp, cable tube, wreach, cover holder, rubber seal for cable entrance.
