144F Rack Mount Optical Fiber Distribution Frame Unique Structure Reasonable Layout

  • 144F Rack Mount Optical Fiber Distribution Frame Unique Structure Reasonable Layout
  • 144F Rack Mount Optical Fiber Distribution Frame Unique Structure Reasonable Layout
  • 144F Rack Mount Optical Fiber Distribution Frame Unique Structure Reasonable Layout
Place of Origin China
Brand Name OMC or OEM
Certification ISO 9001:2008
Model Number 3U ,19' 72 ports
Minimum Order Quantity 5 pcs
Price Negotiable
Packaging Details paper box, 2 pcs per big box
Delivery Time 5-8 working day
Payment Terms T/T, Western Union, MoneyGram,credit card, paypal,alibaba
Supply Ability 1000pcs per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material 1.2mm Cold Rolled Steel Dimension 245*483*3U
Adapter Type SC SX / LC DX No.of Adapter/Port 72 Ports
Color Black/Grey Fiber Count 72 Fibers SC / 144 Fibers LC
Open&Install Stype Rack Mounted OEM&ODM Available
High Light

144F fiber optic distribution unit

,

ODF fiber optic patch panel

,

ODF Distribution Frame
Leave a Message
Product Description

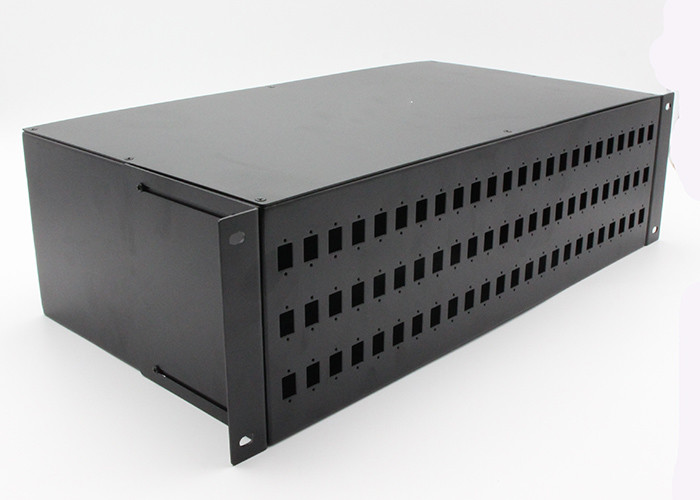

144F Rack Mount Optical Fiber Distribution Frame Unique Structure Reasonable Layout



3U LC 144F Rack Mount Unloaded Optical Fiber Distribution Frame Unique Structure Reasonable Layout



The Fiber Optic Patch panel is a kind of fiber optic management products used to distribute and protect the optical fiber links in FTTH Network. It is available for the distribution and terminal connection of various kinds of optical fiber system. These units are available in sizes that fit the most common distribution requirements.



OMC provide is a kind of high quality, micro sized fiber optical Patch panel made of quality cold-rolled steel sheet and undergoes static plastic spraying treatment, which can be used to mount SC/LC adapter, the box can be installed on the indoor wall and terrace.



Features and Advantages

  • Made of cold-rolling steel, static spreading-plastic, small dimension and exquisite and easy for operation
  • The box has a pothook, which is convenient to install and dismantle
  • The splice tray could be piled one upon another, flexible to turn; the curve radius of the coiled spear fibers should be guaranteed to be over 37.5mm in the splice tray
  • The box is of unique structure, reasonable layout, and has adequate room for operation
  • Adjustable clamp seal ring and reinforce configuration, which could adjust different sizes of cables flexibly to make sure the cables are clamp tightly
  • The indoor type is of excellent seal performance, which could prevent water from entering effectively
  • Can be installed with SC DX/LC Quad adapter
  • Up to 192 cores splice capacity MAX in 2U patch panel
  • Rack Mount and Sliding drawer design both available



The Full loaded products include: Adapters and pigtails (1U for reference)

144F Rack Mount Optical Fiber Distribution Frame Unique Structure Reasonable Layout 0



Kind Reminder



Fiber optic patch panel not including the adapters and pigtails. If you need them be installed, please contact us for details at sales1@omcftth.com, we can make it for you with reasonable price. Thank you!



Order info:



Panel Type Out port Out port No Loaded or not Fiber Mode Panel color
R1-19‘ 1U rack mount patch panel 1-SC Simplex 1-6ports 0-unloaded 0-unloaded 1-Grey
S1-19‘ 1U Sliding Drawer patch panel 2- SC Duplex 2-8ports 1-half loaded 1-G652D 2-Black
R2-19‘ 2U rack mount patch panel 3- LC Duplex 3-12ports 2-full loaded 2-G657A
S2-19‘ 2U Sliding Drawer patch panel 4- LC Quad 4-16ports   3-OM1
  5- FC Simplex 5-24ports   4-OM2
  6- ST Simplex 6-48ports   5-OM3
        6-OM4
R3-19‘ 3U rack mount patch panel 3- LC Duplex       2-Black



For example:S113002

Kind Reminder:

We can make any patch panel according to your drawing. 2U,3U,4U are available
