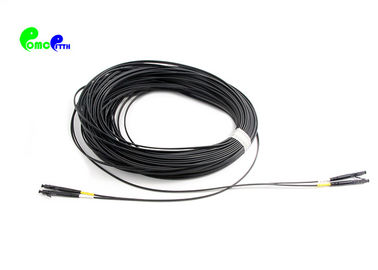

OM4 LC - LC 50 / 125 Fiber Optic Patch Cable Duplex 2.0mm With Black Connector and Black OFNP Cable
|Place of Origin||China|
|Brand Name||OMC or OEM|
|Certification||ROHS and ISO|
|Model Number||Black OM4 LC PC - LC PC 50 / 125 Duplex 2.0mm|
|Minimum Order Quantity||5 pcs|
|Packaging Details||One piece in a plastic bag, several pieces in the carton of 54*39*35cm carton|
|Delivery Time||3-5 days after payment confirmed|
|Payment Terms||Western Union, L/C, T/T, Paypal, Credit Card|
|Supply Ability||300000 pcs per month|
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Product Name||Black OM4 LC PC - LC PC 50 / 125 Duplex 2.0mm Fiber Optic Patch Cable||Wavelength||850/1300nm|
|Connector||LC To LC||Insertion Loss||<0.3dB|
|Clean End Face Ferrule||100% Clean, No Dust, No Water, No Scratch||Polish Type||UPC To UPC|
fiber optic patch cord,
fiber optic jumpers
Black OM4 LC PC - LC PC 50 / 125 Duplex 2.0mm Fiber Optic Patch Cable With Black Connector and Black OFNP Cable
Patch Cords are used to provide optical connection for fiber optic electronics. The use of the patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices.
The 50/125μm OM4 multimode bend insensitive fiber optic cable is less attenuation when bent or twisted compared with traditional optical fiber cables and this will make the installation and maintenance of the fiber optic cables more efficient. It can also save more space for your high density cabling in data centers, enterprise networks, telecom room, server farms, cloud storage networks, and any places fiber patch cables are needed.
This 50/125 OM4 multimode fiber optic cable is ideal for connecting 40G BIDI SR, 10G SR, QSFP+, SFP+ transceivers etc. for 10G/40G/100G Ethernet connections and is the preferred fiber specification for 40G/100G applications
LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.
|Connector Type||LC to LC||Polish Type||PC to PC|
|Fiber Mode||OM4 50/125μm||Wavelength||850/1300nm|
|40G Ethernet Distance||150m at 850nm||100G Ethernet Distance||100m at 850nm|
|Insertion Loss||≤0.3dB||Return Loss||≥30dB|
|Fiber Grade||Bend Insensitive||Minimum Bend Radius||7.5mm|
|Attenuation at 850nm||3.0 dB/km||Attenuation at 1300nm||1.0 dB/km|
|Fiber Count||Duplex||Cable Diameter||2.0mm|
|Cable Jacket||OFNP||Polarity||A(Tx) to B(Rx)|
|Operating Temperature||-20~70°C||Storage Temperature||-40~80°C|
End-face Quality (MM)
|A: Core||0 to 65||None||None||
|B: Cladding||65 to 115||None||None|
|C: Adhesive||115 to 135||None||None|
|D: Contact||135 to 250||None||None|
|E: Rest of ferrule||None||None
Bend Insensitive Fiber Optic Cable Structure
A unique refractive trench with low refractive index glass layer in BIF, which reduces in light dispersion upon twisting and bending, ensuring network transmission stably and fast.
Telecommunications, Cable TV
LAN, WAN, MAN
Medical instrumentation and measurement techniques
YOFC bend insensitive fiber
7.5mm minimum bend radius
Insertion loss and return loss testing
3D interferometer test
|Overall Length(L)(m)||length of tolerance(cm)|
|40<L||+0.5% x L/-0|
