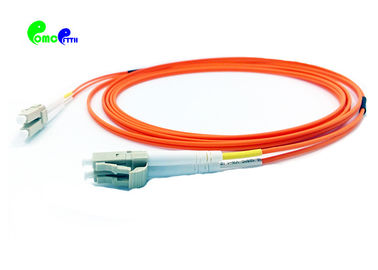

3M Orange Multimode LC - LC Fiber Optic Patch Cable OM2 50 / 125 Duplex 2mm LSZH For HD optical cabling solution

China 3M Orange Multimode LC - LC Fiber Optic Patch Cable OM2 50 / 125 Duplex 2mm LSZH  For HD optical cabling solution supplier
3M Orange Multimode LC - LC Fiber Optic Patch Cable OM2 50 / 125 Duplex 2mm LSZH  For HD optical cabling solution supplier 3M Orange Multimode LC - LC Fiber Optic Patch Cable OM2 50 / 125 Duplex 2mm LSZH  For HD optical cabling solution supplier 3M Orange Multimode LC - LC Fiber Optic Patch Cable OM2 50 / 125 Duplex 2mm LSZH  For HD optical cabling solution supplier 3M Orange Multimode LC - LC Fiber Optic Patch Cable OM2 50 / 125 Duplex 2mm LSZH  For HD optical cabling solution supplier

Large Image :  3M Orange Multimode LC - LC Fiber Optic Patch Cable OM2 50 / 125 Duplex 2mm LSZH For HD optical cabling solution

Product Details:

Place of Origin: China
Brand Name: OEM
Certification: ROHS and ISO
Model Number: OM2 Duplex LC - LC Optical Patch Cord

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: Negotiable
Packaging Details: One piece in a plastic bag, several pieces in the carton of 54*39*35cm carton
Delivery Time: 3-7days
Payment Terms: Western Union, T/T
Supply Ability: 1000000pcs per month
Contact Now
Detailed Product Description
Connector: LC - LC Fiber Mode: OM2 50/125
Insertion Loss: ≤0.3dB(max) Return Loss: ≥30dB(min)
Color: Orange Length: 3m
Jacket OD: 2.0mm Fiber Type: Duplex
Jacket Material: LSZH Product Name: OM2 Duplex LC - LC Fiber Optic Patch Cord
High Light:

fiber optic jumpers

,

fibre optic patch leads

3M Orange Multimode LC - LC Fiber Optic Patch Cord OM1 OM2 50/125 Duplex 2mm LSZH cable assemblies





Multimode LC - LC Fiber Optic Patch Cord are used to provide optical connection for fiber optic electronics. The use of the patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices.



The patch cord can be used in interconnect or cross-connect path connecting the incoming fibers to the electronic equipment and providing patching within the fiber paths.



The 50/125 multimode fiber patch cord meets RoHS compliant, and all cables are 100% optically tested for insertion loss to ensure high quality, it is very cost-effective for network cabling



Connector's Standard:

LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.





Product Info:



Connector Type LC to LC Polish Type UPC to UPC
Fiber Count Duplex Fiber Mode OM2 50/125μm
Wavelength 850/1300nm 1G Ethernet Distance 550m at 850nm
Insertion Loss ≤0.3dB Return Loss ≥30dB
Fiber Grade Bend Insensitive Minimum Bend Radius 7.5mm
Attenuation at 850nm 3.0 dB/km Attenuation at 1300nm 1.0 dB/km
Cable Jacket PVC Cable Diameter 2.0mm
Polarity A(Tx) to B(Rx) Operating Temperature -20~70°C





Geometric Specification (For special request)



Items Connector PC End-face APC End-face
Radius of Curvature SC/FC/ST 10~25 mm 5~12 mm
LC/MU 7~25 mm 5~15 mm
Apex Offset ≤50 um
Fiber Spherical Height +/- 100 nm
Angular Offset ------

8°± 0.5°





End-face Quality (MM)



3M Orange Multimode LC - LC Fiber Optic Patch Cable OM2 50 / 125 Duplex 2mm LSZH  For HD optical cabling solution MM PC



Zone Range (μm) Scratches Defects Reference
A: Core 0 to 65 None None





IEC 61300-3

-35:2015

B: Cladding 65 to 115 None None
C: Adhesive 115 to 135 None None
D: Contact 135 to 250 None None
E: Rest of ferrule None None




Bend Insensitive Fiber Optic Cable Structure

A unique refractive trench with low refractive index glass layer in BIF, which reduces in light dispersion upon twisting and bending, ensuring network transmission stably and fast.

3M Orange Multimode LC - LC Fiber Optic Patch Cable OM2 50 / 125 Duplex 2mm LSZH  For HD optical cabling solution



Features



1. 100% pre-terminated and tested in factory to ensure transfer performance.

2. Rapid configuration and networking, reduce installation time.

3. Supports 40G and 100G network applications.

4. Low insertion loss and added loss.

5. Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized products are available.

6. High back loss, small volume, light weight.

7. End-face geometry and quality superior than IEC and Telcordia standards.

8. LSZH, OFNP, OFNR cable jacket.

9. Mechanical performance: IEC 61754-20 standard.

10. RoHS and REACH materials compliant.





How to Choose The Right Fiber Optic Cable Type?



Designation Fiber Dia.(μm) Type Fast Ethernet 100BASE-FX 1 Gigabit Ethernet 1000BASE-SX 1 Gigabit Ethernet 1000BASE-LX 10Gbps Ethernet 10GBASE 40Gbps Ethernet 40GBASE SR4 100Gbps Ethernet 100GBASE SR4
OM1 62.5/125 Multimode 2000 Meters 275 Meters 550 Meters 33 Meters Not supported Not supported
OM2 50/125 Multimode 2000 Meters 550 Meters 550 Meters 82 Meters Not supported Not supported
OM3(Laser Optimized) 50/125 Multimode 2000 Meters 550 Meters 550 Meters 300 Meters 100 Meters(SR4) 100 Meters(SR4)
OM4(Laser Optimized) 50/125 Multimode 2000 Meters 550 Meters 550 Meters 400 Meters 150 Meters(SR4) 150 Meters(SR4)
Singlemode 9/125 Singlemode 2000 Meters 5km at 1310nm 5km at 1310nm 10km at 1310nm N/A N/A



PS:The difference of OM4 and OM3 fiber mode as the following
1. OM4 was developed specifically for VSCEL laser transmission and allows 10 Gig / second link distances of up to 550 Meters (compared to 300M with OM3).
2. The effective modal bandwidth for OM4 is more than double that of OM3.
3. For OM4 patch cable it is 4700 MHz.km while for OM3 it is 2000 MHz.km.





package-patch cord



High Quality Fibre Optic Patch Cable Guarantee

13



Quality contorl.jpg


Certification:

Our products are confirmed by these certifications

3M Orange Multimode LC - LC Fiber Optic Patch Cable OM2 50 / 125 Duplex 2mm LSZH  For HD optical cabling solution





3M Orange Multimode LC - LC Fiber Optic Patch Cable OM2 50 / 125 Duplex 2mm LSZH  For HD optical cabling solution


FAQ:



1. Are you the real factory?

Yes,we are the real factory more than 10 years



2. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.



3. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.



4. What is your delivery time?

Within 24 hours for normal kinds of fiber optic cable;

3~5 days for fiber optic patch cords with 10000 connectors.



5. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.



6. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.



7. Payment

For large orders: T/T, L/C
