1 x 2 Fiber Optic Coupler Dual Window SM 1310 / 1550nm Without Connector Coupling Ratio 30:70
1.Fiber Optic FBT splitter is a type of optical power management device that is fabricated using Fused Biconical Tape technology.
2. It features small size, high reliability, cheap cost and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.
3.Rollball provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE
4.Rollball offers both tree and star type inline couplers/splitters with Rack mount box.

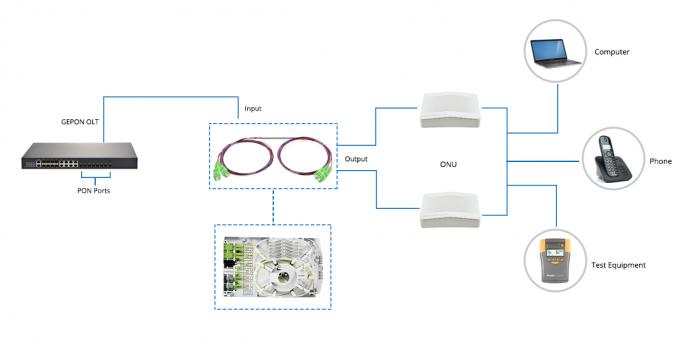

5. They provide a reliable solution to split/combine signals. The splitting ratio ranges from 1x2 to 1x32 ports for tree couplers, and from 2x2 up to 2x32 for star couplers. Available in single, dual, and tripple wavelength windows(1310/1490/1550nm).
CATV Systems & Fiber Optic Sensors
Local Area Network
Low Excess loss
Good Thermal Stability
|Excess Loss||≤0.1dB(0.05dB typ.)|
|Typ. Insertion Loss(Db)||3.05||4.2/2.4||5.4/1.8||7.1/1.1|
|Max. Insertion Loss(dB)||3.4||4.4/2.5||5.6/1.8||7.4/1.1|
|Directivity||(1*2) ≥55dB, (2*2)≥60dB|
|Operating temperature||-40 ~ +80 °C for package A,B|
|-20 ~ +70 °C for package C,D|
|Thermal Stability||≤0.1dB over -40 ~ +80 °C|
|Lead Length||1m, others on request|
|Lead Type||Bare fiber, 0.9mm , 2.0mm, 3.0mm|
|Package type||A: Φ3.0mm*52mm||B: Φ3.5mm*70mm|
|C: 90mm*16mm*9mm||C: 106mm*79mm*10mm|
The relation picture of Insertion Loss & Wavelength,Temperature
Package Dimensions & Pigtail Style
|Package D:||3mm x 45mm stainless steel tube|
|Package E:||3mm x 54mm stainless steel tube|
|Package F:||3mm x 60mm stainless steel tube|
|Package G:||10mm x 20mm x 90mm case|
|Package D,E:||250um bare fiber|
|Package F||250um bare fiber or 900um loose tube|
|Package G:||2mm,3mm cable or 900um loose tube|
|A||Port Number||12=1 x 2…………….|
|22=2 x 2…………….|
|Dual Windows:850nm/1310nm, 1310nm/1490nm, 1310nm/1550nm, 1310nm/1490nm,|
|Wide wavelength: 1260nm to 1620nm|
|C||Coupling Ration(01~50)||1/99 ~ 50/50|
|D||Pigtail Type||1=250um Bare Fiber|
|2=900um Loose Tube|
|F||Pigtail Length(for each port)||1=1m|

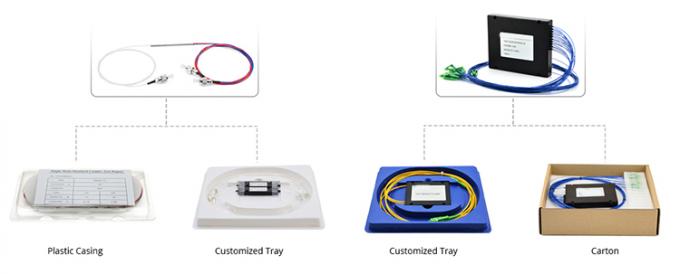

Packaging & OEM
Plastic casing is suitable for all types of FBT Coupler, carton package is designed specifically for ABS Box FBT Coupler, and tray type could be cuotomized for various size, even in a lower price.
This easy to take and well-protected coupler package has been labelled.
Customized label or package solutions are available as request.
