SC APC To LC UPC SM 9/125 Fiber Optic Patch Cables Yellow LSZH Duplex 2.0mm Fiber Patch Cord
|Place of Origin||China|
|Certification||ROHS and ISO|
|Model Number||SC APC To LC UPC 2.0mm SM DX LSZH|
|Minimum Order Quantity||5pcs|
|Packaging Details||One piece in a plastic bag, several pieces in the carton of 54*39*35cm carton|
|Payment Terms||Western Union, T/T, L/C, Western Union, MoneyGram|
|Supply Ability||1000000pcs per month|
|Product Name||SC APC To LC UPC 2.0mm SM DX LSZH Optical Patch Cord||Insertion Loss||<0.2dB (Typical), 0.3dB (Max)|
|Jacket OD||2.0mm||Connector||SC APC To LC UPC|
fiber optic patch cord,
fiber optic jumpers

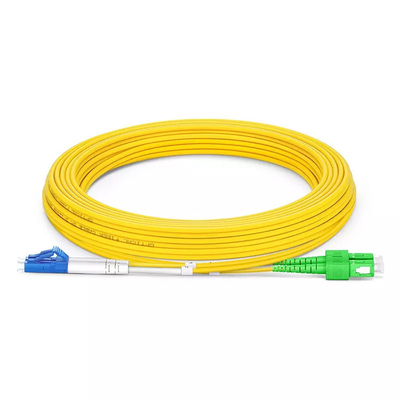

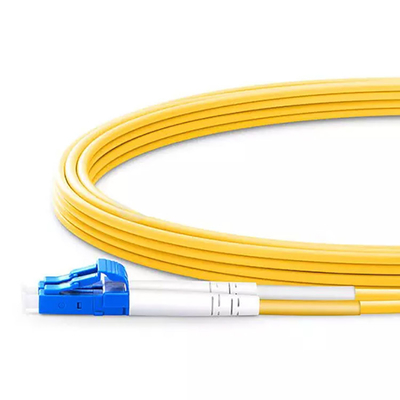

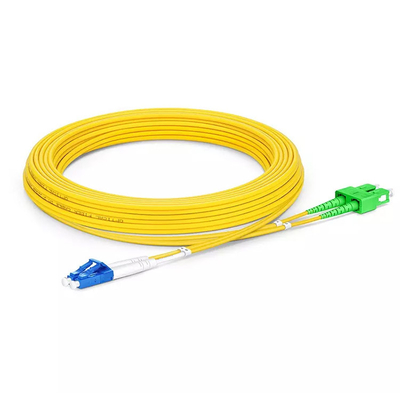

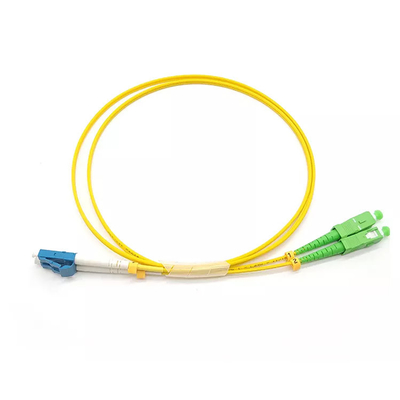

SC APC To LC UPC 2.0mm SM 9/125 Fiber Optic Patch Cables Yellow LSZH Duplex Fiber Patch Cord
Patch Cords are used to provide optical connection for fiber optic electronics. The use of the patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices.
The patch cord can be used in interconnect or cross-connect path connecting the incoming fibers to the electronic equipment and providing patching within the fiber paths.
The 9/125μm single mode fiber patch cord meets RoHS compliant, and all cables are 100% optically tested for insertion loss to ensure high quality, it is very cost-effective for network cabling
|Connector||SC to LC||Jacket OD||2.0mm|
|Fiber Mode||9/125μm||Jacket Color||Yellow|
|Polish||APC to UPC||Wavelength||1310/1550nm|
|Fiber Type||Duplex||Jacket Material||LSZH|
|Polarity||A(Tx) to B(Rx)||Fiber Grade||G652D|
How to Choose The Right Fiber Optic Cable Type?
PS: The difference of OM4 and OM3 fiber mode as the following
1. OM4 was developed specifically for VSCEL laser transmission and allows 10 Gig / second link distances of up to 550 Meters (compared to 300M with OM3).
2. The effective modal bandwidth for OM4 is more than double that of OM3.
3. For OM4 patch cable it is 4700 MHz.km while for OM3 it is 2000 MHz.km.
|Designation||Fiber Dia.(μm)||Type||Fast Ethernet 100BASE-FX||1 Gigabit Ethernet 1000BASE-SX||1 Gigabit Ethernet 1000BASE-LX||10Gbps Ethernet 10GBASE||40Gbps Ethernet 40GBASE SR4||
100Gbps Ethernet 100GBASE SR4
|OM1||62.5/125||Multimode||2000 Meters||275 Meters||550 Meters||33 Meters||Not supported||Not supported|
|OM2||50/125||Multimode||2000 Meters||550 Meters||550 Meters||82 Meters||Not supported||Not supported|
|OM3(Laser Optimized)||50/125||Multimode||2000 Meters||550 Meters||550 Meters||300 Meters||100 Meters(SR4)||100 Meters(SR4)|
|OM4(Laser Optimized)||50/125||Multimode||2000 Meters||550 Meters||550 Meters||400 Meters||150 Meters(SR4)||150 Meters(SR4)|
|Singlemode||9/125||Singlemode||2000 Meters||5km at 1310nm||5km at 1310nm||10km at 1310nm||N/A||N/A|
How to correctly choose between PVC, LSZH and OFNP?
Fiber patch cables are now widely used for indoor applications like buildings, factories, office parks ,campuses and so on. Whether you choose PVC, LSZH or OFNP jacket depends on where you're going to run the cable
This easily taken and well-protected fiber patch cable package has been labelled and marked by OMC as default
.Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods
Qty . Packing can be customized.
OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.
1. Are you the real factory?
Yes,we are the real factory more than 10 years
2. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;
Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.
3. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
4. What is your delivery time?
Within 24 hours for normal kinds of fiber optic cable;
3~5 days for fiber optic patch cords with 10000 connectors.
5. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.
6. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.
For large orders: T/T, L/C
For small orders: T/T,Western Union and Paypal are acceptable
