|Place Of Origin::||Guangdong, China (Mainland)||Brand Name::||OMC Or OEM|
|Material::||PC, ABS, PPR||Warranty::||3 Years|
|Cable Size::||Φ8 —Φ16 (mm)||Capacity::||Bunchy: 12-96 (Cores)|
|Cable Port::||4 Pieces|

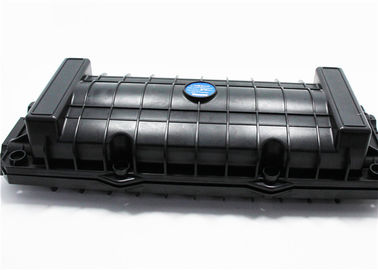

H018 Inline type 4 port Black IP65-68 Plastic Fiber Optic Joint Closure
FOSC is a device which have function of optical transmission link, providing several of fiber optical cable through, branching and related connecting protection. IP safety rate is IP65-68. Some of them can be installed 1x2:32 PLC splitter or 2X2:16 PLC splitter. The product is excellent in sealing performance, easy for installation, wide application. It's your best choice for fiber connection.
1. Scope of application
This Installation Manual is suit for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation.
The scope of application is: aerial, underground, wall-mounting, duct-mounting, hand hole-mounting. The ambient temperature ranges from -40℃ to +65℃.
2. Basic structure and configuration
Dimension and capacity
|Outside dimension (LxWxH)||413x160x88 (mm)|
|Weight (excluding outside box)||1580g-2100g|
|Number of inlet/outlet ports||2 (pieces) on each side (total 4 pieces)|
|Diameter of fiber cable||Φ8—Φ16(mm)|
|Capacity of FOSC||
Bunchy: 12—96 (Cores)
3. Necessary tools for installation(to be provided by operator)
|Name of tools||Usage|
|Fiber cutter||Cutting off fibers|
|Fiber stripper||Strip off protective coat of fiber cable|
|Band tape||Measuring fiber cable|
|Metal wrench||Tightening nut of reinforced core|
