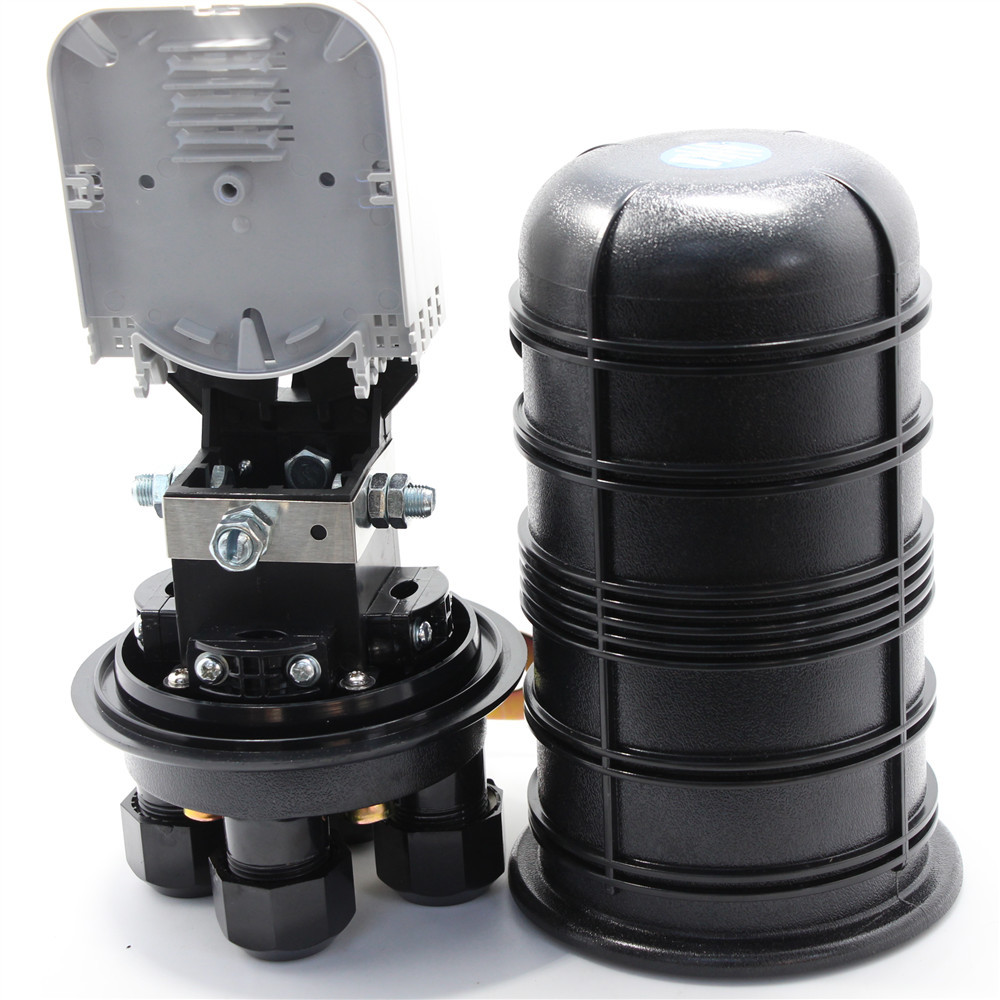

48F 4 Port Fiber Dome Closure Small Size

China 48F 4 Port Fiber Dome Closure Small Size supplier
48F 4 Port Fiber Dome Closure Small Size supplier 48F 4 Port Fiber Dome Closure Small Size supplier 48F 4 Port Fiber Dome Closure Small Size supplier 48F 4 Port Fiber Dome Closure Small Size supplier

Large Image :  48F 4 Port Fiber Dome Closure Small Size

Product Details:

Place of Origin: China
Brand Name: OMC or OEM
Model Number: D013 dome type 48F 4 port fiber closure

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: One piece in a paper carton
Delivery Time: 3 days
Payment Terms: T/T, Western Union
Supply Ability: 100000 per month
Contact Now
Detailed Product Description
Place Of Origin:: Guangdong, China (Mainland) Brand Name:: OMC Or OEM
Model Number:: Dome D013 Application:: Telecom
Certification:: RoHS Color:: Black
Material:: PC, ABS, PPR Warranty:: 3 Years
Dimension:: 288mm*178mm Weight:: 1800g-1910g
Cable Size:: 8mm~16 Mm Capacity:: Bunchy: 4-48 (cores)
Cable Port:: 4 Pieces

1. Scope of application



This Installation Manual suits for the Fiber Optic Splice Closure (Hereafter abbreviated as FOSC), as the guidance of proper installation.



The scope of application is: aerial, underground, pipeline, hand-holes. The ambient temperature ranges from -40℃ to 65℃.



2. Basic structure and configuration



2.1 Dimension and capacity



Outside dimension (Height x Diameter) 288mm×178mm
Weight (excluding outside box) 1800g—1910g
Number of inlet/outlet ports 4 pieces
Diameter of fiber cable Φ8mm~Φ16 mm
Capacity of FOSC Bunchy: 4-48 (cores)



2.2 Main components



No. Name of components Quantity Usage Remarks
1 FOSC cover 1 piece Protecting fiber cable splices in whole

Height x Diameter

208mm x 132mm

2 Fiber optic splice tray (FOST) Max. 4 trays (bunchy) Fixing heat shrinkable protective sleeve and holding fibers Suitable for: Bunchy:4,6,8,12,(cores)
3 Fiber holding tray 1 pcs Holding fibers with protective coat
4 Base 1set Fixing internal and external structure
5 Plastic hoop 1 set Fixing between FOSC cover and base
6 Seal fitting 1 piece Sealing between FOSC cover and base
7 Pressure testing valve 1 set After inject air, it is used for pressure testing and sealing testing Configuration as per requirement
8 Earthing deriving device 1 set Deriving metal parts of fiber cables in FOSC for earthing connection Configuration as per requirement



2.3 Main accessories and special tools



No. Name of accessories Quantity Usage Remarks
1 Heat shrinkable protective sleeve   Protecting fiber splices Configuration as per capacity
2 Nylon tie   Fixing fiber with protective coat Configuration as per capacity
3 Earthing wire 1 piece Putting through between earthing devices To put through as per actual requirement
4 Abrasive cloth 1 piece Scratching fiber cables
5 Labeling paper 1 piece Labeling fibers
6 Special wrench 2 pieces Installing and tightening nut of reinforced core and nut (plastic) of inlet/outlet tube
7 Measuring paper 1 piece To measure perimeter, of which its diameter is enlarged with seal tape To measure perimeter with the corresponding measuring paper
8 Seal tape 1 ring Enlarging diameter of fiber cable which fits in with gasket ring. Configuration as per specification
9 Insulation tape 1 ring Enlarging diameter of fiber cable for easy fixing
10 Metal hoop 1 set For wall mounting and pole hugging
11

Buffer tube



decided by customers Hitched to fibers and fixed with FOST, managing buffer. Configuration as per requirement
12 Desiccant 1 bag Put into FOSC before sealing for desiccating air



3. Necessary tools for installation



3.1 Supplementary materials (to be provided by operator)



Name of materials Usage
Scotch tape Labeling, temporarily fixing
Ethyl alcohol Cleaning
Gauze Cleaning



3.2 Special tools (to be provided by operator)



Name of tools Usage
Fiber cutter Cutting off fiber cable
Fiber stripper Strip off protective coat of fiber cable
Combo tools Assembling FOSC



3.3 Universal tools(to be provided by operator)



Name of tools Usage and specification
Band tape Measuring fiber cable
Pipe cutter Cutting fiber cable
Electrical cutter Take off protective coat of fiber cable
Combination pliers Cutting off reinforced core
Screwdriver Crossing/Paralleling screwdriver
Scissor
Waterproof cover Waterproof, dustproof
Metal wrench Tightening nut of reinforced core



3.4 Splicing and testing instruments (to be provided by operator)



Name of instruments Usage and specification
Fusion Splicing Machine Fiber splicing
OT DR Splicing testing
Provisional splicing tools Provisional testing



Notice: The above-mentioned tools and testing instruments should be provided by the operators themselves.
