|Quality Level:||IEC Grade C And IEC Grade B||Insertion Loss:||<0.2dB (Typical), 0.3dB (Max)|
|Return Loss:||UPC>50dB||100% 3D Interference Tested:||Available|
|Clean End Face Ferrule:||100% Clean, No Dust, No Water, No Scratch||OEM Service:||OEM Is Available|

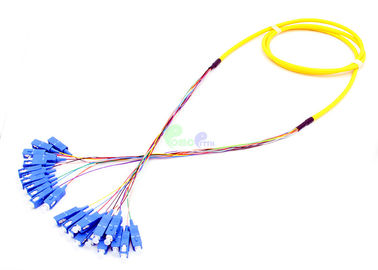

Mini breakoout Fiber patch cable SC UPC - SC UPC12 cores OS2 Fanout 0.9mm 2M Patch Cord LSZH Yellow ,Indoor multi-fiber breakout cable is a low-cost, pre-assembled cable designed primarily for indoor interconnection between transmission equipment and patch panels or similar fixed routes. The fiber optic cable has industry standard flammability rating jacket and the connector meets EIA/TIA 604-2 for high speed cabling networks
Patch Cords are used to provide optical connection for fiber optic electronics. The use of the patch cord provides a quick
and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices.
The patch cord can be used in interconnect or cross-connect path connecting the incoming fibers to the electronic equipment and providing patching within the fiber paths.
OMC’s Breakout fiber patch cord can be used as a building backbone or horizontal distribution, and they are operating in an uncontrolled or harsh environment.
|Fiber count||12||Fiber Mode||9/125μm|
|Connector Type1||SC/UPC||Connector Type2||SC/UPC|
|fanout cable OD||900μm||Breakout length||0.5m|
|Operating temperature||-40~75°C||Storage temperature||-45~85°C|
Geometric Specification (only for 3D interferometer tested)
|Test items||Connectors||PC End-face||APC End-face|
|Radius of Curvature||SC/FC/ST||10~25 mm||5~12 mm|
|LC/MU||7~25 mm||5~15 mm|
|Apex Offset||≤50 um|
|Fiber Spherical Height||+/- 50 nm|
|Angular Offset||------||8°± 0.2°|
OMC also provides a full set of OEM services, such as fiber connector, length, color, fiber grade, specification, material, package etc.
Length tolerance: 0-5M: +5cm/-0cm ; 5-100m:+10cm/-0cm
Packaging & Labeling
This easy to take and well-protected fiber optical cable package has been labelled and marked by OMC as default.
How to Choose The Right Fiber Optic Cable Type?
PS:The difference of OM4 and OM3 fiber mode as the following
1. OM4 was developed specifically for VSCEL laser transmission and allows 10 Gig / second link distances of up to 550 Meters (compared to 300M with OM3).
2. The effective modal bandwidth for OM4 is more than double that of OM3.
3. For OM4 patch cable it is 4700 MHz.km while for OM3 it is 2000 MHz.km.
|Designation||Fiber Dia.(μm)||Type||Fast Ethernet 100BASE-FX||1 Gigabit Ethernet 1000BASE-SX||1 Gigabit Ethernet 1000BASE-LX||10Gbps Ethernet 10GBASE||40Gbps Ethernet 40GBASE SR4||100Gbps Ethernet 100GBASE SR4|
|OM1||62.5/125||Multimode||2000 Meters||275 Meters||550 Meters||33 Meters||Not supported||Not supported|
|OM2||50/125||Multimode||2000 Meters||550 Meters||550 Meters||82 Meters||Not supported||Not supported|
|OM3(Laser Optimized)||50/125||Multimode||2000 Meters||550 Meters||550 Meters||300 Meters||100 Meters(SR4)||100 Meters(SR4)|
|OM4(Laser Optimized)||50/125||Multimode||2000 Meters||550 Meters||550 Meters||400 Meters||150 Meters(SR4)||150 Meters(SR4)|
|Singlemode||9/125||Singlemode||2000 Meters||5km at 1310nm||5km at 1310nm||10km at 1310nm||N/A||N/A|
How to correctly choose between PVC, LSZH and OFNP?
Fiber patch cables are now widely used for indoor applications like buildings, factories, office parks ,campuses and so on. Whether you choose PVC, LSZH or OFNP jacket depends on where you're going to run the cable.
