IP45 4 Port FTTH Products Face Plate Fiber Indoor Wall Outlet Box

Place of Origin China
Brand Name OMC or OEM
Certification RoHS,SGS,ISO
Model Number 4 port SC Fiber Socket
Minimum Order Quantity 50
Price US $ 0.9-1
Packaging Details 54*40*35cm
Payment Terms L/C, T/T,Paypal
Supply Ability 300000 Piece/Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name 4 Port SC Fiber Socket Material PC Or ABS
Dimension 100*80*29 Max. Capacity 4-8 Fibers
Remark Wall Mount Or Inside FTTH Box Protection Level IP45
High Light

IP45 4 Port FTTH Products


IP45 FTTO FTTH Products


IP45 Indoor Wall Outlet Box

Leave a Message
Product Description

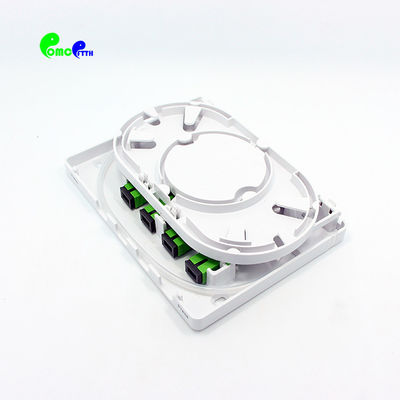

IP45 4 Port FTTH Products Face Plate Fiber Indoor Wall Outlet Box


4 port SC Fiber Socket Fiber Optic Face Plate Fiber Indoor Wall Outlet Box Plastic Box Fiber Termianl Box

Fiber socket is an outlet that could be offer four, Eight fiber channel signals. It is used as a termination point for the drop cable to connect with patch cord in FTTH indoor application. It integrates fiber splice, termination storage and cable connection in one solid protection box.

IP45 4 Port FTTH Products Face Plate Fiber Indoor Wall Outlet Box 0IP45 4 Port FTTH Products Face Plate Fiber Indoor Wall Outlet Box 1


1. Material: ABS

2. It’s applicable for FTTH, FTTO and FTTD.

3. The clasp design of the cover reduces the installation strength.

4. Dust-proof design with IP45 Protection level

5. Compatible adapter: SC. FC. LC

6. The big-diameter wrapping trap in the socket guarantees the cable bending radius.



ITEM# Dimension(L×W×H mm) Max. capacity Remark
FS-4B 100*80*29 4-8F Wall mount or inside FTTH media box application

Standard accessories: heat-shrink splice sleeves, nylon tie, expansion screws.


Optional Accessories: SC/FC adaptor


The fiber route and main components of the box

IP45 4 Port FTTH Products Face Plate Fiber Indoor Wall Outlet Box 2


Application in FTTX.

1. In FTTO, fiber socket can installed in wall, on desk.

2. In FTTH, Fiber Socket can install in Family multimedia box.
