1F 2F 4F 6F 8F 12F Ftth Drop Fiber Optic Cable G657A1 G657A2
| Place of Origin | China |
|---|---|
| Brand Name | OMC or OEM |
| Certification | ROHS and ISO |
| Model Number | SC FTTH Drop Cable patch cord&Pigtail |
| Minimum Order Quantity | 5pcs |
| Price | Negotiable |
| Packaging Details | Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm |
| Delivery Time | 3-7days |
| Payment Terms | T/T, Western Union, Western Union,paypal,credit card |
| Supply Ability | 100000 pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | SC FTTH Drop Cable Patch Cord&Pigtail | Connector Type | SC/APC;SC/UPC;LC/APC;LC/UPC |
|---|---|---|---|
| Outdoor Drop Cable | 2x5mm Self-supporting Aerial FTTH Drop Cable | Indoor Drop Cable | 2x3mm Butterfly Flat Indoor FTTH Drop Cable |
| Insertion Loss | APC<0.3dB,UPC<0.3dB | Return Loss | APC>60dB,UPC>50dB |
| Fiber Count | 1,2,4,6,8,12F | Strength Member | FRP,KFRP, Steel Wire |
| Operating Temperature Range | -40°C ~+70°C | Application | FTTH FTTB FTTX Network |
| High Light | Ftth Drop Fiber Optic Cable,G657A1 Ftth Drop Fiber Optic Cable,G657A2 fiber optic drop wire |
||
Product Description
1F 2F 4F 6F 8F 12F Ftth Drop Fiber Optic Cable G657A1 G657A2

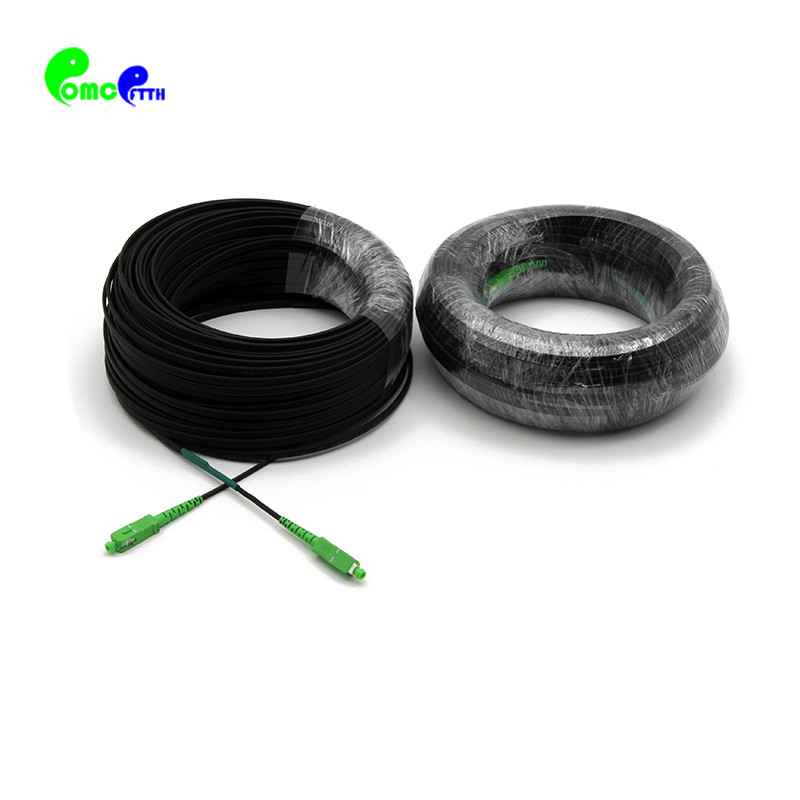

1F 2F 4F 6F 8F 12F FTTH Drop Cable with SC APC and SC/UPC SM 9 / 125 G657A1 G657A2 cable for Outdoor / Indoor FTTH project
FTTH Drop cable patch cord&Pigtail It’s a kind of patch cable but assembly with FTTH Drop Cable. This is a last cable in FTTH project. Used widely between Fact plate, terminal box, ONU tec. With easy accessibility to the fiber and simple installation, FTTH cable can be directly connected to the homes. It is suitable for connecting with communication equipment and used as access building cable in premises distribution system. The optical fibers are positioned in the center of cable and two parallel Fiber Reinforce Plastic (FRP/KFRP/Steel wire) strength members are placed at the two sides. Then, the cable is completed with LSZH sheath. Also,customers can specify your required connectors.
Feature:
Good mechanical and environmental characteristic
Simple structure, light weight and high practicability
Low smoke zero halogen and flame retardant sheath
Novel flute design, easily strip and splice, simple installation and maintenance
Two parallel FRP strength members ensure good performance of anti-electromagnetic and crush resistance
Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property
Optical performance.
|
Test Item |
Test Condition |
Value(dB) | ||
| UPC | APC | |||
| Optical Perfor- mance | Insertion Loss | 1310nm LED light source | <0.3 | <0.3 |
| Return Loss | 1310nm LED light source | >50 | >60 | |
|
Environmental Performance (Max. Insertion Loss change) |
High temperature | +85°C168 hours | <0.2 | |
| Temperature Cycle | -40-+75°C, 21 Cycles 168 hours | <0.2 | ||
| Humidity Aging | +75°C, 95%R.H,168 hours | <0.2 | ||
| Humidity/ Condensation Cycling |
-10°C-+65°C, 90%~100%RH, 14 cycles 168 hours |
<0.2 | ||
|
Mechanical Per- formance ( Max. Insertion Loss change) |
Vibration | 10-55Hz, 1.5mm(p-p) | <0.2 | |
| Flex |
0.9kg,-90o~+90o repeat for 100 cycles |
<0.2 | ||
| Torsion | 1.35kg,90o~+90o ,10times | <0.2 | ||
| Withstand tensile | 90N,10min | <0.2 | ||
| Drop | H=1.5M,Total of 8 drops | <0.2 | ||
| Exchangeability | Randomly | <0.2 | ||
| Durability | 500 times | <0.2 | ||
End-face Quality (SM)
SM APC SM UPC
| Zone | Range (μm) | Scratches | Defects | Reference |
| A: Core | 0 to 25 | None | None |
IEC 61300-3- 35:2015 |
| B: Cladding | 25 to 115 | None | None | |
| C: Adhesive | 115 to 135 | None | None | |
| D: Contact | 135 to 250 | None | None | |
| E: Rest of ferrule | None | None | ||
Products details-Butterfly flat FTTH drop cable-1-12 cores
| Fiber Count | 1F | 2F/4F | 6F-12F |
| Strength member | FRP/KFRP/ Solid Steel wire | ||
| 0.45-0.52mm | 0.45-0.52mm | 0.45-0.52mm | |
| Cable diameter(mm) Approx. | 2.0(±0.1)*3.0(±0.2) | 2.0(±0.1)*3.0(±0.2) | 2.0(±0.1)*4.0(±0.2) |
| Cable weight(kg/km) Approx | 7/10 | 7.5/10.5 | 8.5/11.5 |
| Tensile Strength Short/ Long Term (N) |
200/100 for steel wire strength member 80/40 for KFRP wire strength member |
||
| Crush resistance short/long term (N/100mm) | 1000/500 | ||
| Operating temperature range(°C) | -40°C ~+70°C | ||
Products details-Aerial Self-support FTTH Drop cable-1-12 cores
| Fiber Count | 1F | 2F | 4F | 6F | 8F-12F |
|
Self-supporting Strength member |
Solid Steel wire/ Stranded Steel wire | ||||
| 1.0mm | 1.2mm | ||||
| Strength member | FRP/KFRP/Solid Steel wire | ||||
| 0.45-0.52mm | 0.45-0.52mm | ||||
| Cable diameter(mm) Approx. (±0.1) | 2.0*5.0 | 2.0*5.0 | 2.0*5.2 | 2.3*6.0 | 2.8*6.3 |
| Cable weight(kg/km) Approx | 18.5/20 | 19/20.5 | 20/21.5 | 21/22.5 | 34/35 |
| Tensile Strength Short/ Long Term(N) | 600/300 | 600/300 | 650/350 | 800/400 | 800/400 |
| Crush resistance short/long term (N/100mm) | 2000/1000 | 2000/1000 | 2000/1000 | 2200/1000 | 2200/1000 |
| Operating temperature range(°C) | -40°C ~+70°C | ||||
Products details-Connector
SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973.
LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.
Products details-Ceramic Ferrule
High quality SM Ceramic ferrule, Good concentricity<0.5um
Application
Access Networks
LAN (Local Area Network)
Fiber Optic Communication System
FTTH (Fiber to The Home) Indoor Building
Optical fiber connected and transmitted equipment
Ideal Solution by FTTH Indoor Fiber Patch Cable
A high-capacity FTTH network gives you opportunities to build a competitive advantage and maintain an eco-sustainable network that consumes less power. With simple structure and light weight, self-supporting FTTH drop cable is highly recommended for the connection of outdoor and indoor cabling.
Packaging
This easily taken and well-protected fiber patch cable package has been labelled and marked by OMC as default .Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on goods Qty . Packing can be customized.
FAQ:
1. Are you the real factory?
Yes,we are the real factory more than 10 years
2. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;
Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.
3. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
4. What is your delivery time?
Within 24 hours for normal kinds of fiber optic cable;
3~5 days for fiber optic patch cords with 10000 connectors.
5. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.
6. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.
7. Payment
For large orders: T/T, L/C
For small orders: T/T,Western Union and Paypal are acceptable
