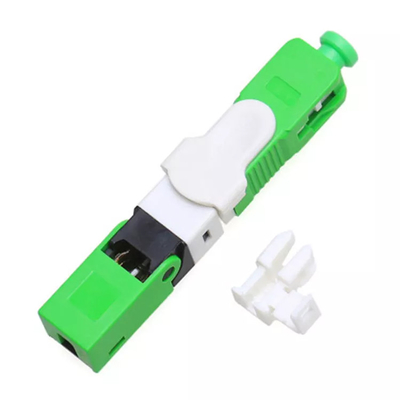

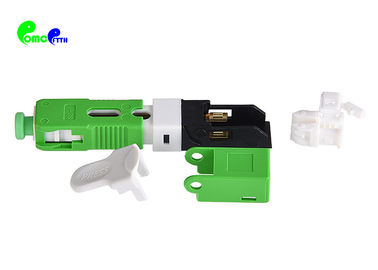

ESC250D FTTH Optical Fiber Fast Connector SC APC SX 9 / 125μm Field Assembly Quick Connector

Place of Origin China
Brand Name OEM or OMC
Certification ROHS and ISO
Model Number SC APC Fast Connector
Minimum Order Quantity 5pcs
Price Negotiable
Packaging Details One piece in a plastic bag, several pieces in the carton of 54*39*35cm carton
Delivery Time 3-7days
Payment Terms Western Union, T/T, Paypal
Supply Ability 100000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Products ESC250D FTTH Optical Fiber Fast Connector SC APC SX 9 / 125μm Field Assembly Quick Connector Insertion Loss ≤0.3dB
Return Loss ≥60dB Polish Type APC
Fiber Count Simplex Fiber Mode 9 / 125μm Single Mode
Operating Temperature -20~70°C Cable Diameters 0.9 / 2.0 / 3.0mm
High Light

simplex fiber optic connector

,

quick connect fiber optic connectors

Leave a Message
Product Description

ESC250D FTTH Optical Fiber Fast Connector SC APC SX 9 / 125μm Field Assembly Quick Connector



Field installation connector also be called Fast install connector is a new kind of connector that could be used in FTTH project scene. They don’t need to polishing, no epoxy. They could be installed in the field and make connection less than two minutes. Of course, It don’t need fused the fiber. Just some little tools enough, so it could save time and cost.



The Field Assembly Connector products have been factory-polished, eliminating the need for any polishing materials, thereby enabling the preparation and termination of optical fibers in a fraction of the time of other conventional methods. The connector also uses V-groove mechanical splice principals and therefore the use of an epoxy is not required for the termination of the connector. This Fast Connector offers convenience in assembling and strong stability. It allows simple optical core connection without any additional practices, or adhesives. It does not require a working space by connecting itself in the challenging environments such as a telephone pole and a manhole. It reconnects the cables and reduces the connection defect rate by an installer error in the field.



Fast Connector Specifications



Connector Type SC Polishing APC
Ferrule Ceramic Fiber Mode 9/125μm Single mode
Cable Diameters

0.9/2.0/3.0mm Simplex cable

2x3 FTTH Drop Cable

Dimension 50/53/60mm
Insertion Loss

≤0.3dB(typical)

≤0.5dB(Max)

Return Loss APC≥55dB
Tension Strength ≥50N Operating Temperature -40°C~+75°C

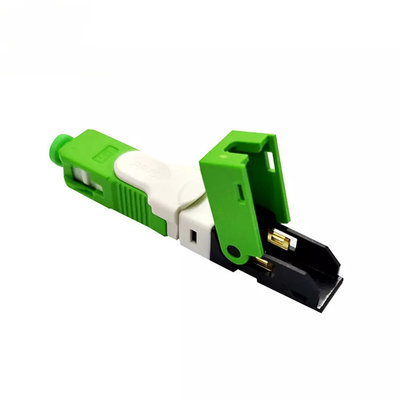

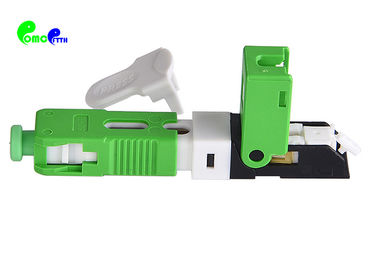

ESC250D FTTH Optical Fiber Fast Connector SC APC SX 9 / 125μm Field Assembly Quick Connector 0

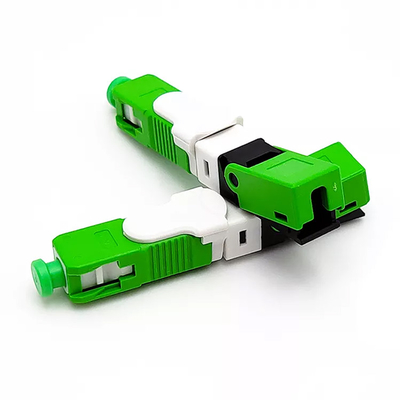

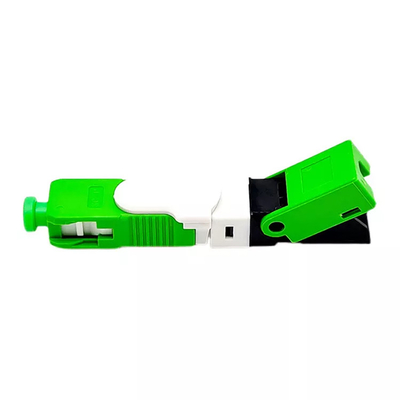

ESC250D FTTH Optical Fiber Fast Connector SC APC SX 9 / 125μm Field Assembly Quick Connector 1




Connector’s Standard:



SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973.




Packaging & Delivery:



Packaging Details

1. Fumigation of wood drum, plywooden drum or wooden drum
2. carton box
3. customized

Port: Shenzhen




Description:



The Field Assembly Connector series are already a popular solution for optical wiring inside buildings and floors for LAN & CCTV applications and with the expansion of FTTH, is already proving itself to be the connector of choice by incumbents, municipalities, utilities & alternative carriers. Our Field Assembly Optical Connector series are now available in SC, LC, or FC variants, catering for 250um to 900um, and 2.0mm, 3.0mm diameter single mode and multimode fiber types, including Multi-mode 62.5/125um and Multi-mode 50/125um. The single-mode versions are available with SPC or APC ferrules.






Feature:



• No epoxy and polishing required

• Quick and easy fiber termination

• Precision mechanical alignment insures low insertion loss

• Superior optical performance

• Streamlined component design, convenient operation

• Pre-installed, on-site assembly without end face grinding and consideration

• Uses proven, molded v-groove technologies
