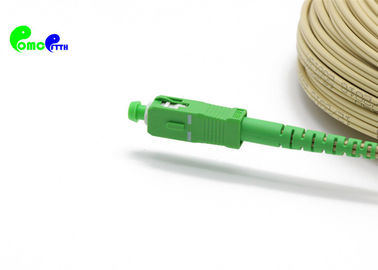

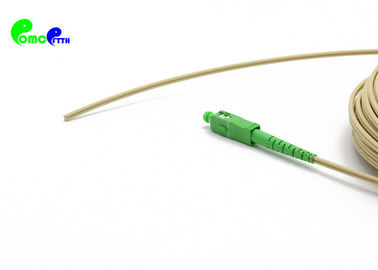

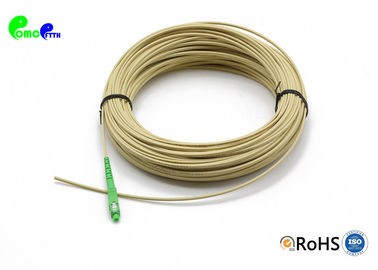

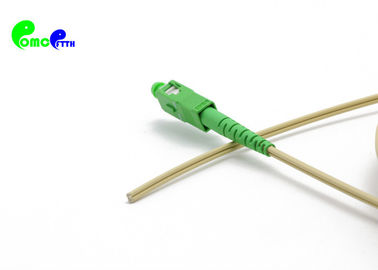

FTTH Drop cable Fiber Pigtail SC APC Simplex G657A1 SM 9 / 125μm 2.0 x 3.0mm With LSZH For FTTH project

China FTTH Drop cable Fiber Pigtail SC APC Simplex G657A1 SM  9 / 125μm 2.0 x 3.0mm With LSZH  For FTTH project supplier
FTTH Drop cable Fiber Pigtail SC APC Simplex G657A1 SM  9 / 125μm 2.0 x 3.0mm With LSZH  For FTTH project supplier FTTH Drop cable Fiber Pigtail SC APC Simplex G657A1 SM  9 / 125μm 2.0 x 3.0mm With LSZH  For FTTH project supplier FTTH Drop cable Fiber Pigtail SC APC Simplex G657A1 SM  9 / 125μm 2.0 x 3.0mm With LSZH  For FTTH project supplier FTTH Drop cable Fiber Pigtail SC APC Simplex G657A1 SM  9 / 125μm 2.0 x 3.0mm With LSZH  For FTTH project supplier

Large Image :  FTTH Drop cable Fiber Pigtail SC APC Simplex G657A1 SM 9 / 125μm 2.0 x 3.0mm With LSZH For FTTH project

Product Details:

Place of Origin: Shenzhen,China
Brand Name: OMC
Certification: RoSH
Model Number: SC APC Simplex 50 / 125μm LSZH Slate Jacket

Payment & Shipping Terms:

Minimum Order Quantity: ≥1
Price: Negotiable
Packaging Details: one piece in a plastic bag. Several bags in a larger plastic bag. hundreds of bags in a cartoon of 54*35*39cm. other size carton is available too.
Delivery Time: 7 work days
Payment Terms: T/T, Western Union,PAYPAL
Supply Ability: 100000+piece+per week
Contact Now
Detailed Product Description
Products: Optical Fiber Pigtail SC APC Simplex 50 / 125μm With LSZH Slate Jacket Insertion Loss: ≤0.3dB
Return Loss: APC≥60dB Fiber Mode: 50/125um
Connector Type: SC/APC Cable OD: 2.0x3.0mm
Wavelength: 1310/1550nm Operating Temperature: -40~75°C

FTTH Drop cable Fiber Pigtail SC APC Simplex G657A1 SM 9 / 125μm 2.0 x 3.0mm With LSZH For FTTH project





SC APC FTTH Drop cable pigtail is a kind of patch cord but assembly with ftth drop cable. This is last 100m cable in FTTH project. Used widely in Fact plate, terminal box, ONU tec.



Pigtail are used to provide optical connection for fiber optic electronics. The use of the patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices.



The pigtail can be used in interconnect or cross-connect path connecting the incoming fibers to the electronic equipment and providing patching within the fiber paths.



OMC’s FTTH Drop cable pigtail can be used as a building backbone or horizontal distribution, and they are operating in an uncontrolled or harsh environment.



Products info



Fiber count

 Simplex

Fiber Mode

9/125μm

Connector Type1

SC/APC

Cable OD

2.0x3.0mm

Wavelength

1310/1550nm

Jacket Material

LSZH

Insertion loss

≤0.3dB

Interchangeability

≤0.2dB

Return loss

APC≥60dB

Vibration

≤0.2dB

Operating temperature

-40~75°C

Storage temperature

-45~85°C



Application



1.Optical fiber communication systems engineering.

2.Fiber optic data communication network.

3.Fiber CATV engineering.

4.Other optical technology tests.



Environmental Performance (Max. Insertion Loss change)



High temperature

+85°C168 hours

<0.2

Temperature Cycle

-40-+75°C, 21 Cycles 168 hours

<0.2

Humidity Aging

+75°C, 95%R.H,168 hours

<0.2

Humidity/Condensation Cycling

-10°C-+65°C, 90%~100%RH, 14 cycles 168 hours

<0.2



Mechanical Performance ( Max. Insertion Loss change)



Vibration

10-55Hz, 1.5mm(p-p)

<0.2

Flex

0.9kg,-90o~+90o repeat for 100 cycles

<0.2

Torsion

1.35kg,90o~+90o  ,10times

<0.2

Withstand tensile

90N,10min

<0.2

Drop

H=1.5M,Total of 8 drops

<0.2

Exchangeability

Randomly

<0.2

Durability

500 times

<0.2



Length Tolerance



Overall Length(L)(m) length of tolerance(cm)
0<L<1 +5/-0
1<L<10 +10/-0
10<L<40 +15/-0
40<L +0.5% x L/-0



Two Important Methods for Fiber Optic Pigtail Splicing



Fiber optic pigtail assemblies are utilized in terminating fiber optic cables via fusion or mechanical splicing.



FTTH Drop cable Fiber Pigtail SC APC Simplex G657A1 SM  9 / 125μm 2.0 x 3.0mm With LSZH  For FTTH project



Packaging


This easily taken and well-protected fiber optical cable package has been labelled and marked by OMC as default
.Standard carton size : 34*22*15 cm; 44*34*24 cm ; 54*39*34 cm . Which carton to be used depends on
goods Qty . Packing can be customized.

FTTH Drop cable Fiber Pigtail SC APC Simplex G657A1 SM  9 / 125μm 2.0 x 3.0mm With LSZH  For FTTH project



CUSTOM option



OMC also provides a full set of OEM services, such as fiber connector, length, color, fiber grade, specification, material, package etc.



Company Information:



OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.



dustfree wrokshop.jpg


Quality contorl.jpg


FTTH Drop cable Fiber Pigtail SC APC Simplex G657A1 SM  9 / 125μm 2.0 x 3.0mm With LSZH  For FTTH project

FTTH Drop cable Fiber Pigtail SC APC Simplex G657A1 SM  9 / 125μm 2.0 x 3.0mm With LSZH  For FTTH project
