High Speed MPO MTP Cassette , Small Design Metallic Shell Fiber Optic Cassette

China High Speed MPO MTP Cassette , Small Design Metallic Shell Fiber Optic Cassette supplier
High Speed MPO MTP Cassette , Small Design Metallic Shell Fiber Optic Cassette supplier High Speed MPO MTP Cassette , Small Design Metallic Shell Fiber Optic Cassette supplier High Speed MPO MTP Cassette , Small Design Metallic Shell Fiber Optic Cassette supplier High Speed MPO MTP Cassette , Small Design Metallic Shell Fiber Optic Cassette supplier

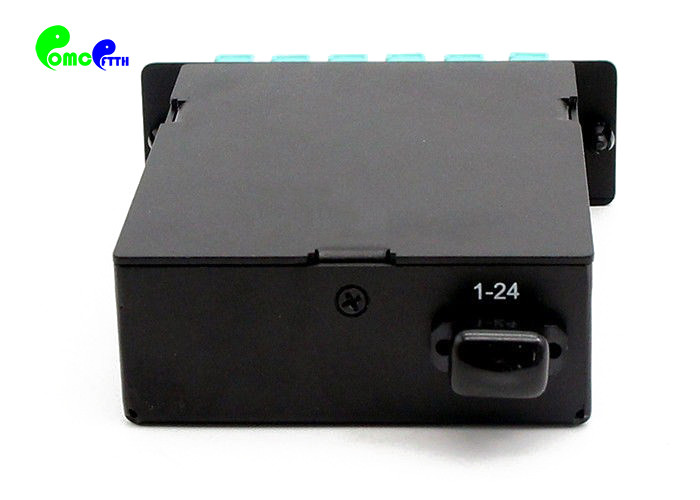

Large Image :  High Speed MPO MTP Cassette , Small Design Metallic Shell Fiber Optic Cassette

Product Details:

Place of Origin: China
Brand Name: OMC or OEM
Model Number: 1 x MTP male -12 x LC Duplex 24F OM3 50/125 Type A /Type AF

Payment & Shipping Terms:

Minimum Order Quantity: 10 pcs
Price: Negotiable
Packaging Details: one piece in a paper carton, several in a larger carton
Delivery Time: 1 week
Payment Terms: T/T, Western Union,paypal, alipay, credit
Supply Ability: 10000 pcs per month
Contact Now
Detailed Product Description
Cassette Material: CRS Metal Products: 1 X MTP Male -12 X LC Duplex 24F OM4 50/125
IL: MTP≤0.35dB, LC≤0.3dB Polarity: Type A /Type AF
Desgined For: 10G/40G Application:: Data Center FTTH FTTB FTTX Network
Fiber Mode: OM4 50/125 Dimension: 35x109x118mm

24F MTP - LC LGX box 1 x MTP male -12 x LC Duplex 24F OM4 50/125 Type A /Type AF, For 1U MPO 4 slots patch panel



Type A and AF are used as a pair in a two cassette method A link. 0.35dB IL Full loaded 2x MTP Male to 12 LC Duplex Plug-Play module is designed for 10G/40G Ethernet, fiber channel and high speed data center.


MTP/MPO Breakout Cassette module feature 2/1 rear 24-fiber MTP/MPO ports connection and 12 duplex LC ports in front. This Base- 24 cassette is designed to upgrade existing LC links to SR4 parallel optics without wasting any of the fibers inside the cable, and it is ideal to deploy a Base-8 connectivity solution for use in main, horizontal and equipment distribution areas.

MPO/MTP Breakout Cassette modules is made of cold rolled steel sheet or Aluminum, MPO/MTP Cassette Modules provide secure transition between MPO/MTP and LC or SC discrete connectors. They are used to interconnect MPO/MTP backbones with LC or SC patching.

MTP/MPO Breakout Cassette module is the kind of module that allows for rapid deployment of high-density data center infrastructure as well as improved troubleshooting and reconfiguration during moves, adds and changes. Which is proved to be time and energy saving as well as cost-efficient? Moreover, it enables users to take the fibers brought by a trunk cable and distribute them to a duplex cable.

MTP/MPO cassette features optimized performance with low insertion losses and power penalties, high-density and MTP/MPO interface of superior optical and mechanical properties.





Features:



  • Design for MPO/MTP SYSTEM, for quickly network deploy and quick-fix solution
  • High-density and small design;
  • 8 and 12 and 24 fiber versions – 4/6/12 LC (Duplex) / SC (Simplex) optical parts
  • Available Multimode (62.5/125, Standard 50/125 and OM3,OM4) and Single mode(OS1/2) fiber.
  • Factory-terminated and -tested cable and apparatus for instant field connections with guaranteed quality and performance
  • Metallic shell with high strength protect the inner fibers effectively
  • Supports easy reconfiguration for moves, adds, and changes
  • Available for the installation of LC/SC adapter.




Optical Performance:



Fiber Count 24F MPO/MTP Adapter Key up to Key down
Front Connector Type



12xLC Dx OM3



Rear Connector Type

1x MTP UPC Base-12/24 (male)

Insertion Loss MTP≤0.35dB, LC≤0.3dB Return Loss MTP≥20dB, LC≥35dB
RoHS Compliance Applicability Dimension(HxWxD) 35x109x118mm
Operating Temperature 0°C to 70°C (32°F to 158°F) Storage and Shipping Temperature

-40°C to +75°C

(-40°F to 167°F)





Drawing:

High Speed MPO MTP Cassette , Small Design Metallic Shell Fiber Optic Cassette

High Speed MPO MTP Cassette , Small Design Metallic Shell Fiber Optic Cassette







OEM service is available too.

High Speed MPO MTP Cassette , Small Design Metallic Shell Fiber Optic Cassette
