FBT Splitter ABS box type optional 1x2 Ratio Splitter 50:50~99:1 FBT Coupler

Place of Origin China
Brand Name OEM or OMC
Certification RoHS,SGS,ISO
Model Number 1x2 FBT coupler SC
Minimum Order Quantity 10
Price Negotiable
Packaging Details 54*40*35cm
Delivery Time 5-8 working days
Payment Terms L/C, T/T,Paypal
Supply Ability 100000 Piece/Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 1x2 FBT Coupler SC Coupling Ratio 50/50
Excess Loss 0.15dB Maximum Lnsertion Loss 3.8dB
Uniformity 1.0dB Polarization Sensitivity 0.2dB
Operating Wavelength 1310/1550±40 Port Configuration 1×2
High Light

1x2 FTTH Products

,

1x2 PLC Splitters

,

1x2 Fiber Optic Splitter

Leave a Message
Product Description

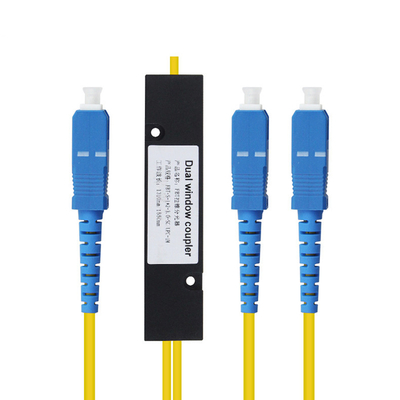

1x2 Fused Biconic Taper Coupler SC FTTH Products Fiber Optic Splitter



High quality 1x2 FBT coupler 2 way PLC splitters 1x2 fiber optic splitter



Fused Biconic Taper (FBT) coupler, also be called FBT splitter, based on the traditional technology, it is to bundle together two or more optical fibers, and then pull the cone machine melt stretching, and real-time monitoring the change of the ratio, spectral ratio requirements after melt stretching, one side retain a single fiber (the rest of the cut) as input, the other end is a multi-channel output.

As one of the key components for GPON FTTx networks, optical splitters can be placed in the Central Office or in one of the distribution points (outdoor or indoor) because the FBT coupler are highly stable for multiport optical signal splitting with low insertion loss. FBT couplers are designed for power splitting and tapping in telecommunication equipment, CATV network, and test equipment

FBT Splitter ABS box type optional 1x2 Ratio Splitter 50:50~99:1 FBT Coupler 0



Key Features

Low insertion loss

Low polarization dependent loss

High Return Loss Optional

Split Ratio 20/80, 40/60. (50/50 as default.)

Compact for small application areas like in closure or splice trays

Wide Operating Temperature and Wavelength

Excellent Environmental & Mechanical Stability

Qualified under Telcordia GR-1221 and GR-1209 High Quality Plastic ABS Box

FBT Splitter ABS box type optional 1x2 Ratio Splitter 50:50~99:1 FBT Coupler 1



Applications

FTTX (FTTP, FTTH, FTTN, FTTC)

Passive Optical Networks (PON)

Local Area Networks (LAN)

CATV Systems Amplifying,

Monitoring System



Performance Specifications

Singlemode Dual Window Wideband Couplers
Grade Premium A Grade
Coupling Ratio(%) 50/50 50/50
Excess Loss (Typical)(dB) 0.1 0.15
Maximum lnsertion loss(dB) 3.6 3.8
Uniformity (Max.)(dB) 0.7 1.0
Polarization Sensitivity (dB) 0.15 0.2
Operating Wavelength(nm) 1310/1550±40 or custom wavelength



Coupling Ratio/insertion Loss Conversion Chart

Coupling Ratio lnsertion Loss
Premium A Grade
40/60 4.7/2.7 5.0/2.9
30/70 6.0/2.0 6.4/2.2
20/80 7.9/1.5 8.5/1.7
10/90 11.3/0.65 12.0/0.8
5/95 14.8/0.4 15.3/0.55
1/99 22.5/0.3 23.0/0.35
Coupling Ratio(%) 1~50
Directivity (dB) >55
Operating Temperature(℃) -20~+80
Storage Temperature(℃) -40~+85
Fiber Type Corning singlemode SMF-28
Fiber Pigtail Length(m) 1
Port Configuration 1×2 or 2×2
Dimensions (mm) Package D,E,F,G

The relation picture of Insertion Loss & Wavelength,Temperature
