OMCFS 118 FTTH Fiber Fusion Splicer Fiber Optic Splicing Machine

Basic Information
Place of Origin: Shenzhen China
Brand Name: OEM or OMC
Certification: RoHS,SGS,ISO
Model Number: OMCFS-118 Fiber Fusion Splicer
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: 54*40*35cm
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T,Paypal
Supply Ability: 10000 Piece/Pieces per Month
Product Name: OMCFS-118 Fiber Fusion Splicer Splicing Type: SM, MM, DS, NZDS Fiber&Cables
Splicing Loss: 0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS) Splicing Time: ≤9s
Heat Time: ≤30s Cleaved Length: 8~16mm
Weight: 1.98KG Dimension (LxWxH): 135mm(L)×158mm(W)×155mm(H)
High Light:

FTTH Fiber Fusion Splicer

,

OMCFS 118 Fiber Optic Splicing Machine

,

OMCFS 118 Fiber Splicing Machine

OMCFS 118 FTTH Fiber Fusion Splicer Fiber Optic Splicing Machine



Fiber Fusion Splicer High Precision FTTH Fiber Fusion Splicer OMCFS-118 Fiber Optic Splicing Machine



OMCFS-118 Handhold Fusion Splicer, with high performance price ratio, is the main product of OMC Company. With SAMLL& smart appearance, reliable quality, OMCFS-118 is a special design for the installation, operation and maintenance of optical fiber specially design a precision, durable, convenient optical fiber construction instrument. Widely used in the construction, inspection, maintenance of FTTX project.



Features

Used for FTTH and ordinary fiber project

Core to core alignment by PAS technology

8 sec splicing time and 30 sec heat time

300 X or Y view, 150 X and Y view

5 inch 4:3 digital high-quality LCD screen, observe X and Y view at same time

Three in one fixture, splicing single fiber, cable indoor and pigtail

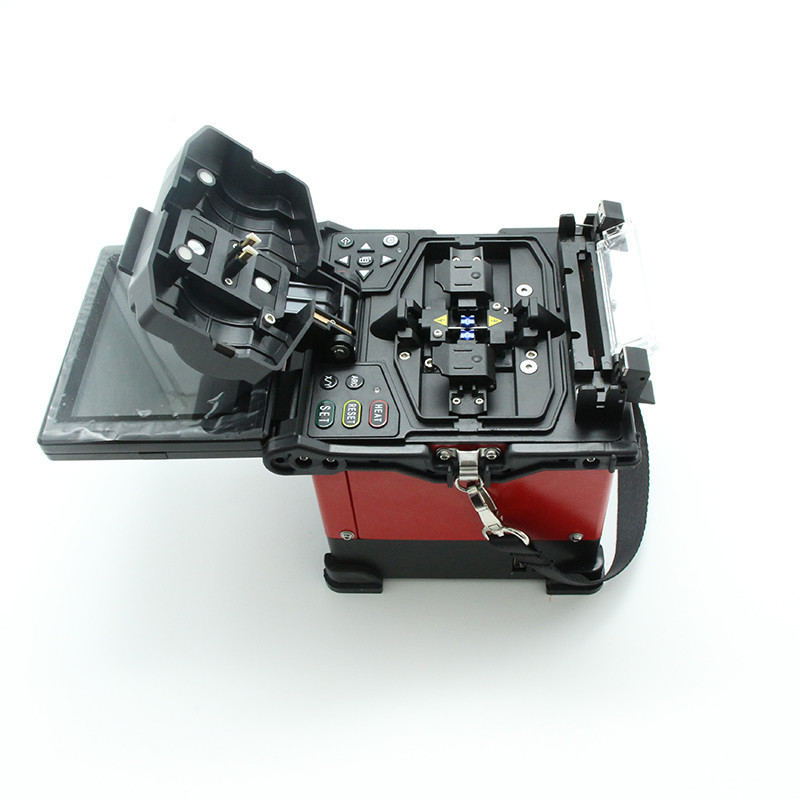

OMCFS 118 FTTH Fiber Fusion Splicer Fiber Optic Splicing Machine 0





Available: OEM SERVICE.

Available language: English, Russian, Spanish, Portuguese, Italian, French, German

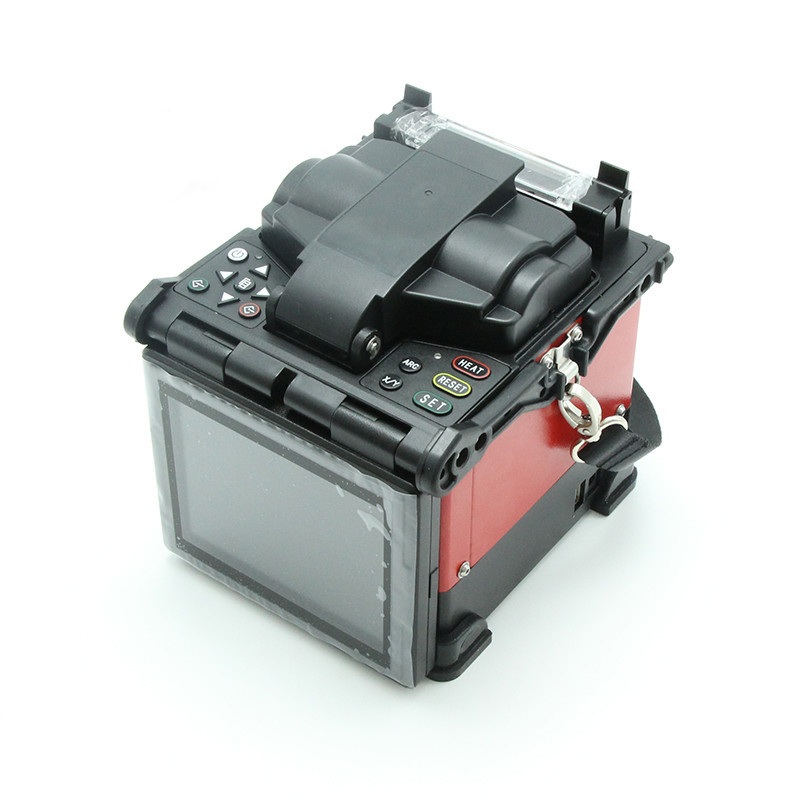

OMCFS 118 FTTH Fiber Fusion Splicer Fiber Optic Splicing Machine 1

Specification

Model OMCFS-118-1 OMCFS-118-2
Splicing Type SM, MM, DS, NZDS Fiber&Cables SM, MM, DS, NZDS Fiber&Cables and SC Fusion splice-on Connector
Splicing Loss 0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS)
Available language English, Russian, Spanish, Portuguese, Italian, French, German
Splicing Mode Manual, Half Auto, Auto
Fiber Alignment Core to Core Alignment by PAS technology
Applicable Fiber Cable indoor and 0.25mm,0.9mm fiber, SC connector(option)
Splicing Time ≤9s
Heat Time ≤30s
Cleaved Length 8~16mm
Fiber Image/ Magnification 300/150
View Display 5 inch digital high quality LCD screen
Tension Test Standard 2N (option)
Heat Shrinkable Sleeve 60mm, 40mm and serials heat Shrinkable Sleeve
Battery Capacity

300 cycles splicing and heating, 3 hours charging time

(splicing and charging at same time)

Battery Life Cycling charge 300-500 times, easy to replace battery
Electrodes Life 3000, easy to replace electrodes
Power Source ≤20W
Interface USB Convenient data download and software update
Construction Lighting Built in high brightness, wide range of lights, easy to operate at night
Power supply Built in lithium battery 5200mAh 11.1V; external adapter, input: AC100-240V, output: DC13.5V/4.5A
Operating Condition

0-5000m above sea level, Temperature: -10-60℃,

Humidity:0~95%RH (No dew)

Weight 1.6KG (including battery), 1.98KG (excluding battery)
Dimension (LxWxH) 135mm(L)×158mm(W)×155mm(H)
