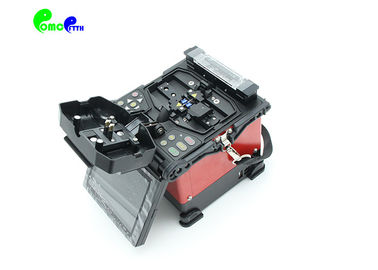

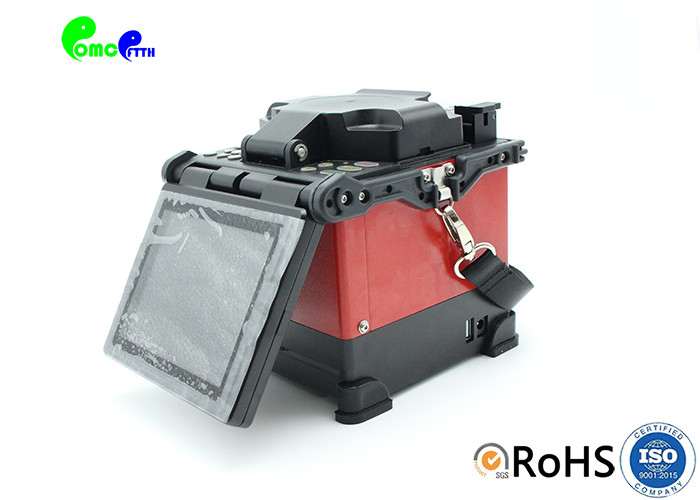

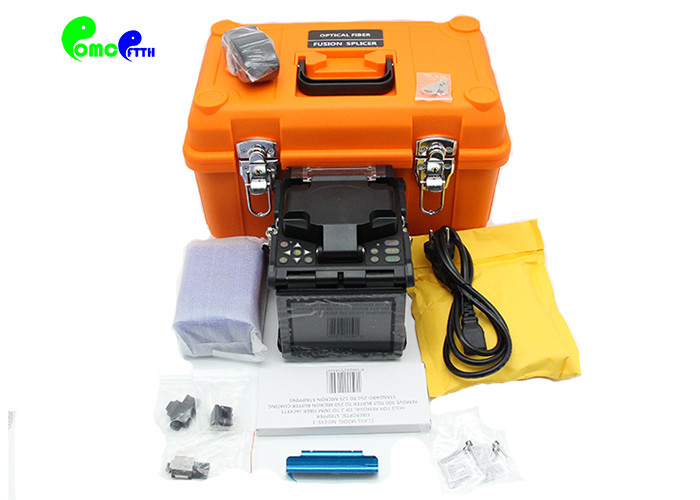

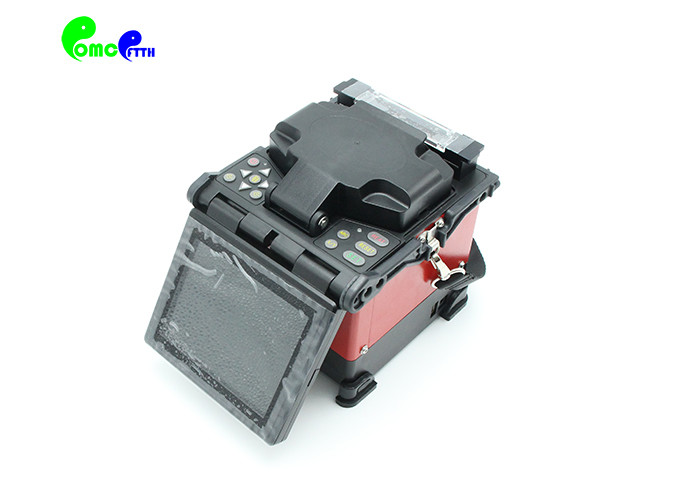

Handhold Fiber Optic Tools FTTX Small Fusion Splicer Mini Machine OMCFS 117

Place of Origin China
Brand Name OMC or OEM
Certification ROHS and ISO
Model Number OMCFS-117
Minimum Order Quantity 1pcs
Price Negotiable
Packaging Details one peace in box, several pieces in cartoon
Delivery Time 3-7 work days
Payment Terms L/C, T/T, Western Union, Paypal
Supply Ability 20000 per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Handhold Fiber Optic Tools FTTX Small Fusion Splicer Mini Machine OMCFS 117 Fiber Cleaved Length 8-22mm
Return Loss ≥60dB Protection Sleeve Length 20mm, 40mm, 60mm
Applicable Fibers SM, MM Language English, Chinese, Russian, Spanish, Portuguese
Sizs 135mmx158mmx155mm Vendor OMC
High Light

fiber optic splicing tools

,

fiber optic hand tools

Leave a Message
Product Description

Handhold Fiber Optic Tools FTTX Small Fusion Splicer Mini Machine OMCFS 117



ftth toolsftth toolsftth toolsftth toolsftth toolsftth toolsftth toolsftth toolsftth toolsftth toolsftth toolsftth toolsftth toolsftth tools

OMCFS-117 Handhold Fusion Splicer, with high performance price ratio, is the main product of OMC Company. With SAMLL& smart appearance, reliable quality, OMCFS-117 is a special design for the installation, operation and maintenance of optical fiber specially design a precision, durable, convenient optical fiber construction instrument. Widely used in the construction, inspection, maintenance of FTTX project.

ftth toolsftth toolsftth toolsftth toolsftth toolsftth toolsftth toolsftth toolsftth toolsftth toolsftth toolsftth toolsftth toolsftth tools

Specification.



Model OMCFS-117 Handhold Fusion Splicer
Splicing Type SM, MM, DS, NZDS
Splicing Loss 0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS)
Return Loss >60dB
Splicing Mode Manual, Half Auto, Auto
Fiber Alignment Core to Core Alignment by PAS technology
Applicable Fiber Cable indoor and 0.25mm,0.9mm fiber, SC connector(option)
Splicing Time ≤9s
Heat Time ≤30s
Cleaved Length 8~16mm
Fiber Image/ Magnification 300/150
View Display 4.3 inch digital high quality LCD screen
Tension Test Standard 2N (option)
Heat Shrinkable Sleeve 60mm, 40mm and serials heat Shrinkable Sleeve
Battery Capacity

300 cycles splicing and heating, 3 hours charging time

( splicing and charging at same time)

Battery Life Cycling charge 300-500 times, easy to replace battery
Electrodes Life 3000, easy to replace electrodes
Power Source ≤20W
Interface USB Convenient data download and software update
Construction Lighting Built in high brightness, wide range of lights, easy to operate at night
Power supply Built in lithium battery 5200mAh 11.1V; external adapter, input: AC100-240V, output: DC13.5V/4.5A
Operating Condition

0-5000m above sea level, Temperature: -10-60℃,

Humidity:0~95%RH (No dew)

Weight 2KG (including battery), 1.1KG (excluding battery)
Dimension (LxWxH) 135mm(L)×158mm(W)×155mm(H)





ftth toolsftth toolsftth toolsftth toolsftth toolsftth toolsftth toolsftth toolsftth toolsftth toolsftth toolsftth toolsftth toolsftth tools



































Features



Used for FTTH and ordinary fiber project

Core to core alignment by PAS technology

8 sec splicing time and 30 sec heat time

300 X or Y view, 150 X and Y view

4.3 inch 16:9 digital high-quality LCD screen, observe X and Y view at same time

Three in one fixture, splicing single fiber, cable indoor and pigtail



Available: OEM SERVICE.



Available language: English, Russian, Spanish, Portuguese, Italian, French, German



Product Dimension




ftth toolsftth toolsftth toolsftth toolsftth toolsftth toolsftth toolsftth toolsftth toolsftth toolsftth toolsftth toolsftth toolsftth tools

Related products:




High precision fiber cleaver



Power meter+VFL.jpg



Power meter+VFL



OTDR AOR500.jpg



OTDR- AOR500



Company Information:



OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.
