UPC Duplex Single Mode LSZH Fiber Optic Splitter For 400G Data Center

Product Details:
Place of Origin: China
Brand Name: OMC or OEM
Certification: RoHS,SGS,ISO
Model Number: Higher Density CS-LC Fiber Patch Cord
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: US $ 4-6
Packaging Details: 54*40*35cm
Delivery Time: 3-7 working days
Payment Terms: L/C, T/T,Paypal
Supply Ability: 100000 Piece/Pieces per Month

Detail Information

Product Name: Higher Density CS-LC Fiber Patch Cord Fiber Type: 9/125um
Insertion Loss: <0.2dB(Typical), 0.3dB (Max) Return Loss: >35dB
Quality Level: IEC Grade C And IEC Grade B 100% 3D Interference Tested: Available
Standard: Telcordia GR-326.Core Certification: ISO 9001:2015
High Light:

Single Mode LSZH Fiber Optic Splitter

,

Duplex LSZH Fiber Optic Splitter

,

Duplex LSZH Optical Splitter

Product Description

UPC Duplex Single Mode LSZH Fiber Optic Splitter For 400G Data Center

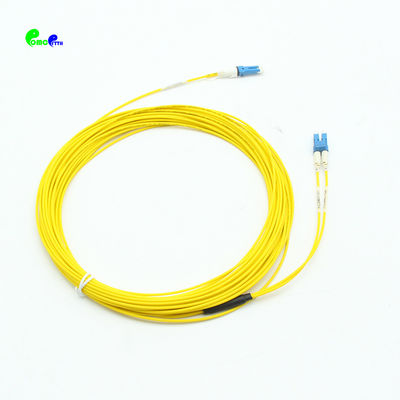

Higher Density CS - LC UPC Duplex Single mode LSZH Fiber Optic Patch Cord for 400G new generation Data Center



Senko’s new CS connector is specifically designed for Data Centre 400G optimization. To accommodate the “lightspeed” upgrades currently taking place in hyperscale DCs, the reduced size CS Connector is not only capable of delivering low insertion and high return loss comparable to existing LC connectors, but with significantly reduced footprint.

UPC Duplex Single Mode LSZH Fiber Optic Splitter For 400G Data Center 0

The CS connector is a miniature single-position plug which is characterized by duo cylindrical, spring-loaded butting ferrule(s) of a 1.25 mm typical diameter, and a push-pull coupling mechanism. The optical alignment mechanism of the connectors is a rigid bore sleeve or a resilient sleeve.



The CS connector meets the requirement for 2x100G/200G CWDM4 transceivers requiring two pairs of TX/RX. Our CS Cable Assembly support next-generation 200/400 Gbps QSFP-DD and OSFP transceivers with optimized performance.



Products Highlights

UPC Duplex Single Mode LSZH Fiber Optic Splitter For 400G Data Center 1

Applications

UPC Duplex Single Mode LSZH Fiber Optic Splitter For 400G Data Center 2

Optical Performance

Insertion loss ≤0.25dB Mean (Standard) Interchangeability ≤0.2dB
Return loss

SM UPC≥50dB

SM APC≥60dB

MM PC≥35dB

Vibration ≤0.2dB
Operating temperature -40~75°C Maximum pulling force

6N(900um cable)

70N(2.0mm cable)

100N(3.0mm cable)



Geometric Specification( if Customer requested)

Items Parameter
Polishing PC APC
ROC CS 7~ 25 5 ~ 12
Apex Offset ≤ 50
Fiber Spherical Height ±100
Angle ± 0.5 8 ± 0.5



Polishing Method

UPC Duplex Single Mode LSZH Fiber Optic Splitter For 400G Data Center 3

End-face Quality (SM)

Zone Range (μm) Scratches Defects Reference
A: Core 0 to 25 None None IEC 61300-3-35:2015
B: Cladding 25 to 115 None None
C: Adhesive 115 to 135 None None
D: Contact 135 to 250 None None
E: Rest of ferrule None None



End-face Quality (MM)

Zone Range (μm) Scratches Defects Reference
A: Core 0 to 65 None None IEC 61300-3-35:2015
B: Cladding 65 to 115 None None
C: Adhesive 115 to 135 None None
D: Contact 135 to 250 None None
E: Rest of ferrule None None



Available for



CS 2cores Pigtail (include 2.0mm,0.9mm,250um type)

UPC Duplex Single Mode LSZH Fiber Optic Splitter For 400G Data Center 4

CS-LC 2cores Patch cable (CS-FC/SC/ST/E2000 are available too)

UPC Duplex Single Mode LSZH Fiber Optic Splitter For 400G Data Center 5

MPO/MTP-CS 8/12/16/24cores fanout cables(Include fanout 0.9mm and 2.00mm OD)

UPC Duplex Single Mode LSZH Fiber Optic Splitter For 400G Data Center 6

CS-CS 2cores patch cables

UPC Duplex Single Mode LSZH Fiber Optic Splitter For 400G Data Center 7
