ADSS 24 Cores Fiber Optic Cables SM G652D Double Jackets Underground

  • ADSS 24 Cores Fiber Optic Cables SM G652D Double Jackets Underground
  • ADSS 24 Cores Fiber Optic Cables SM G652D Double Jackets Underground
  • ADSS 24 Cores Fiber Optic Cables SM G652D Double Jackets Underground
  • ADSS 24 Cores Fiber Optic Cables SM G652D Double Jackets Underground
Place of Origin China
Brand Name OMC or OEM
Certification ROHS and ISO
Model Number 24F ADSS Fiber Optic Cable
Minimum Order Quantity 1000m
Price Negotiable
Packaging Details Wooden drum
Delivery Time 3-5days
Payment Terms L/C, T/T, Western Union,Paypal
Supply Ability 20000km per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model Number 24F ADSS Fiber Optic Cable Fiber Counts 24F
Diameter 12±0.5mm Loose Tube PBT
Inner Jacket PE Inner Thickness 1.0mm
Outer Jacket PE Outer Thickness 1.7mm
Color Black Temperature -40~+70℃
High Light

ADSS Fiber Optic Cables

,

SM G652D Fiber Optic Cables

,

Direct Burial FO Cable
Leave a Message
Product Description

ADSS 24 Cores Fiber Optic Cables SM Fiber G652D Double Jackets Underground and Direct Burial FO Cable

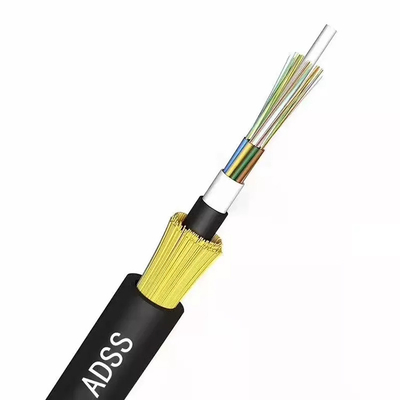

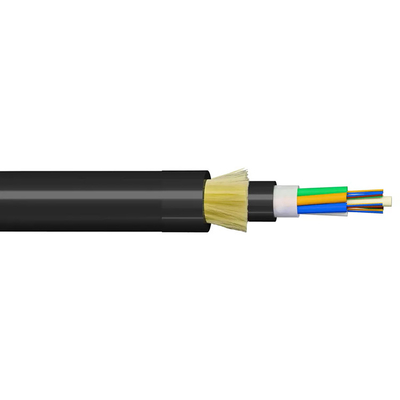

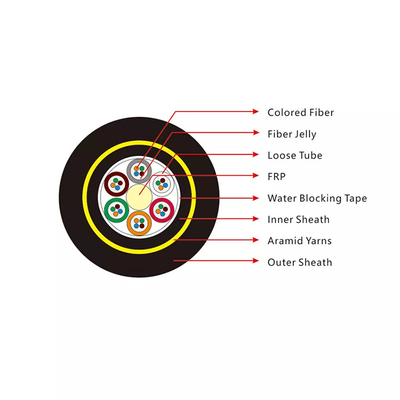

ADSS cable is loose tube stranded structure. Fibers are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.



Features



Can be installed without shutting off the power

Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops

Large span lengths and the largest span is over 1000m

Good performance of tensile strength and temperature

The design life span is 30 years



Cable Performance



Item Parameters
Loose tube Material PBT
Color Full color spectrum
Filler Material PE
Color Black
CSM Material FRP
Inner jacket Material MDPE
Color Black
Non-metal reinforced pieces Material Aramid yarn
Outer jacket Material MDPE
Color Black
Min. bending radius Static 12.5 times cable diameter
Dynamic 25 times cable diameter
Repeating bending Load: 150N; number of cycles: 30, no obvious addition attenuation, no fiber break and no cable damage.
Tensile performance Core RTS (N) MAT (N) EDS (N)
4 7200 3200 1700
6 7200 3200 1700
8 7200 3200 1700
12 7200 3200 1700
24 7200 3200 1700
36 7200 3200 1700
48 8200 3600 2000
72 8200 3600 2000
96 9400 4200 2200
Crush Short term 3000N/100mm
Torsion Load: 150N; number of cycles:10; twist angle:±180° No obvious addition attenuation, no fiber break and no cable damage.
Impact Impact energy:450g*1m; radius of hammer head: 12.5mm; number of impact: 5 No obvious addition attenuation, no fiber break and no cable damage.
Span(m) 100m

ADSS 24 Cores Fiber Optic Cables SM G652D Double Jackets Underground 0

ADSS 24 Cores Fiber Optic Cables SM G652D Double Jackets Underground 1



Company Information:



OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs

dustfree wrokshop.jpg

ADSS 24 Cores Fiber Optic Cables SM G652D Double Jackets Underground 3



FAQ:



1. Are you the real factory?

Yes, we are the real factory more than 10 years



2. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.



3. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.



4. What is your delivery time?

Within 24 hours for normal kinds of fiber optic cable;

3~5 days for fiber optic patch cords with 10000 connectors.



5. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.



6. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.



7. Payment

For large orders: T/T, L/C

For small orders: T/T,Western Union and Paypal are acceptable.
