OM1 OM2 OM3 OM4 Zipcord Duplex Armored Cable G652D G655 G657
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Fiber Type | G652D,G655,G657,OM1,OM2,OM3,OM4 | Coating Material | PVC, OFNR,OFNP,LSZH,LSOH |
|---|---|---|---|
| Armored Unit | Stainless-steel Spiral Pipe | Min Bending Radius(mm) | Dynamic 20D/Static 10D (except G657) |
| Temperature Range PVC | -20°C ~+90°C ；LSZH:-20°C ~+70°C | ||
| High Light | Zipcord Duplex Armored Cable,OM2 Fiber Optic Cable,G657 Fiber Optic Cable |
||
Product Description
Description:

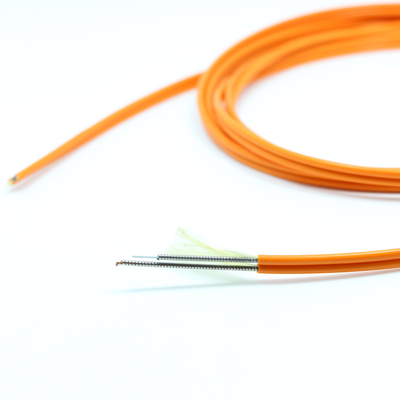

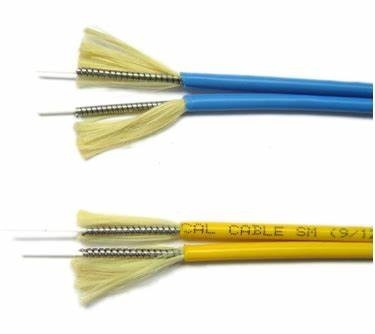

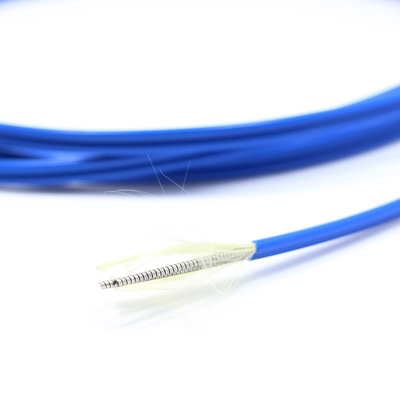

ARMORED CABLE
The armored cable is a special cable with a stainless steel tube inside the cable which could protect the fiber bite by ant, mouse related rodent animals. This cable could be used as normal electric wire.
Structure
Products detail:
| Fiber Type | G652D,G655,G657,OM1,OM2,OM3,OM4 | |||
| Coating Material | PVC, OFNR,OFNP,LSZH,LSOH | |||
| OD Optional(mm) | 2.0x4.1 | 2.4x5.9 | 3.0x6.1 | 3.0x6.1/3.3x6.7 |
| Armored unit | Stainless-steel Spiral Pipe | |||
| Max Tension (Long term/ Short term N) | 300/500 | 400/600 | 400/600 | 500/1200 |
|
Max Crushing Resistance(N/100) (Long term/ Short term ) |
1000/3000 | 1000/3000 | 1000/3000 | 2000/3000 |
| Min Bending Radius(mm) | Dynamic 20D/Static 10D (except G657) | |||
| Temperature range | PVC: -20°C ~+90°C ；LSZH:-20°C ~+70°C | |||
Features:
- High anti-tensility; High anti-pressure
- High bent Resistance; Anti-bite from rodent animals
- Small OD stainless steel protection tube
- Don’t worry about damage in project
- Easy to maintain
- USE as normal soft cable.
Application:
Armored patch cord pigtail assemblies.
Cabling installation on floor, wall corner and main communication line.
Other ODN, FTTH project.
Ideal Using of Armored Cable in FTTH.
