Toneable FTTH Flat Drop Fiber Cable 24AWG Gel MDPE 2 Fo G657A Indoor Outdoor

Place of Origin China
Brand Name OMC or OEM
Certification RoHS,SGS,ISO
Model Number 2F Toneable 24AWG Flat Drop Cable
Minimum Order Quantity 1KM
Price Negotiable
Packaging Details 75*75*55CM
Delivery Time 10-20days
Payment Terms L/C, T/T,Paypal
Supply Ability 60000KM per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 2F Toneable 24AWG Flat Drop Cable Model Number GYFXTBC8Y
Strength Member 2x1.6MM FRP Material Of Jacket Black Polyethylene (PE)
Installation Tensile 1500N Storage/Operating Temperature -40℃ To +70℃
Application Indoor/Outdoor Access Building Warranty (Year) 2
High Light

Gel MDPE Flat Drop fiber Cable

,

24AWG Flat Drop fiber Cable

,

FTTH Flat Drop fiber Cable

Leave a Message
Product Description

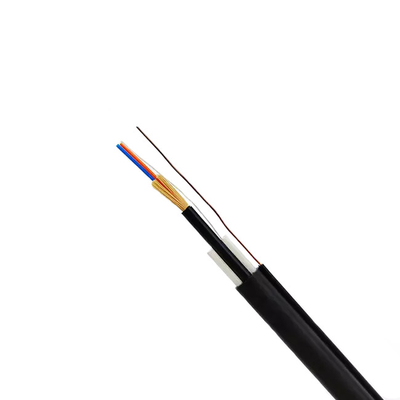

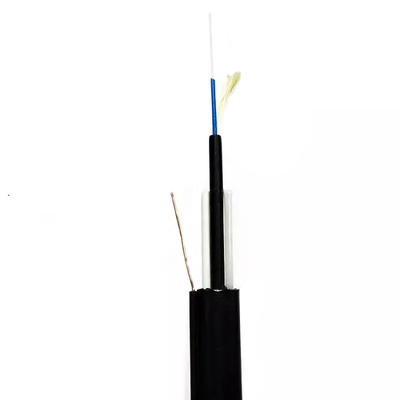

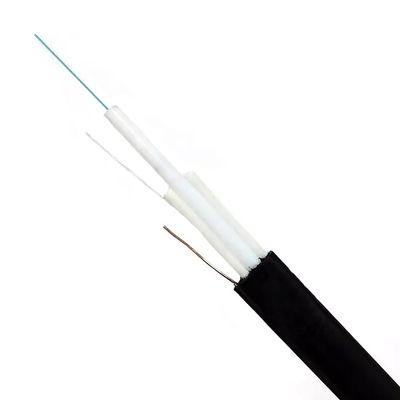

Toneable FTTH Indoor/Outdoor 24AWG Gel MDPE Cable 2 Fo G657A Flat Drop fiber Cable

Uni-Tube All Dielectric Aerial Drop cable is Especially designed for Fiber to the Subscriber applications.

It is a flat, all dielectric cable ideally suited for self-supporting drop-type installations as well as conduit builds



Features
Small size, Low cost.
Up to 24 fibers.
Uni-tube gel-filled construction for superior fiber protection.
Two parallel FRP wire and overall glass yarn to enhance tensile resistant.
And protect cable from mechanical damage.
Designed for use with inexpensive attachment hardware.
Self-supported no messenger needed.

Toneable FTTH Flat Drop Fiber Cable 24AWG Gel MDPE 2 Fo G657A Indoor Outdoor 0

Product structure parameters

1. Optical Fiber Color

Fiber NO

1

2

3

4

5

6

7

8

9

10

11

12

Color

Blue

orange

Green

brown

Grey

white

Red

black

Yellow

Purple

Pink

Aqua

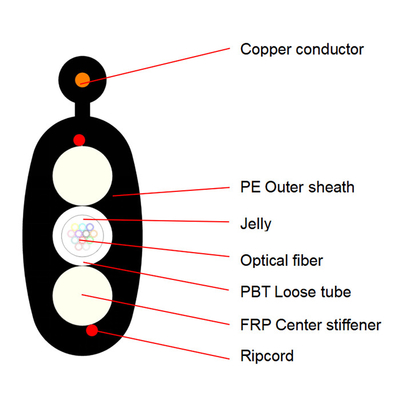

2. Structure

Project

unit

Parameter

Electrical properties





sub unit

number

1

Copper conductor

AWG

24

Insulation

material

PE

color

Black

Rated voltage

KV

0.3 / 0.5

20℃ conductor resistance

Ω/km

89.4

70℃ Insulation resistance

MΩ.km

0.014

sub unit diameter

±0.1mm

Φ1.55

Optical





Optical Fiber G.652D

Number

2-12

PBT Loose Tube

±0.05mm

2.0

Number

1

Color

White

Optical fibers in tube

Number

2-12

Cable





FRP Center Stiffener

±0.05mm

2.0

Number

2

Ripcord

Number

2*2*1000D

Color

Red

Outer sheath

Color

Black

HDPE thickness

±0.1mm

0.9

Cable Diameter

±0.1mm

4.0±0.3*10.2±0.5

Cable weight

±2Kg/km

36



Product Mechanical performance parameter

Project

unit

Parameter

Long tensile strength

N

600

Transient tension strength

N

1500

Long Flattening Force

N/100mm

1000

Short Flattening Force

N/100mm

3000

Static Bending Radius

mm

15D

Dynamic Bending Radius

mm

25D

Storage Temperature

-40~60

Install Temperature

-10~60

Run Temperature

-40~60



Cable Qualification Standards:

ITU-T G657;ANSI/ICEA S-87-640;EN 187105; IEC 60794-1;YD/T 2159-2010
