Weatherproof FTTH Optical Distribution Box 8 Cores Fiber Optic Terminal Box

Place of Origin China
Brand Name OMC or OEM
Certification RoHS,SGS,ISO
Model Number 8FO FTTH Box
Minimum Order Quantity 10
Price US $ 5-6.5
Packaging Details 54*40*35cm
Delivery Time 5-8 working days
Payment Terms L/C, T/T,Paypal
Supply Ability 100000 Piece/Pieces per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 8FO FTTH Box Material PC+ABS
PC+ABS 227*181*54.5mm Installation Method Wall Mount/ Pole Mount
Insertion Loss IL<0.2db Return Loss 50dB(PC/UPC) 60dB(APC)
Protection Grade IP66 Operating Temperature -40~+85
Atmosphere Pressure 70Kpa-106Kpa Weight 0.65kg
High Light

FTTH Optical Distribution Box

,

Weatherproof Optical Distribution Box

,

FTTH Fiber Optic Terminal Box

Leave a Message
Product Description

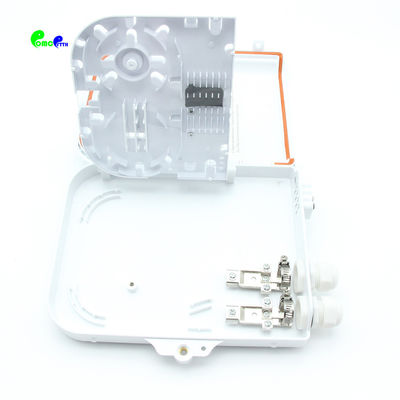

Weatherproof FTTH Optical Distribution Box 8 Cores Fiber Optic Terminal Box



ODF outdoor 8FO Weatherproof Outdoor FTTH Distribution 8 cores Fiber Optic Terminal Box



This Lockable IP65 distribution box is supplied loaded or unloaded and offers the ability to terminate 8 fibers housed in a strong robust ABS enclosure for indoor and outdoor applications. This terminal box terminates up to 8 fiber optic cables, offers spaces for splitters and up to 8-16 fusions, allocates 8 x SC Simplex adapters or LC Duplex adapters and working under both indoor and outdoor environments. It allows also fiber splitting, splicing and distribution. Provides solid protection and management for the FTTH network building

Weatherproof FTTH Optical Distribution Box 8 Cores Fiber Optic Terminal Box 0

Application

Widely used in FTTH access network.

Telecommunication Networks

CATV Networks

Data communications Networks

Local Area Networks



Features

IP 65 Rating for external use

Lockable door for added security

Integrated cable tie points for securing incoming cable

Up to 16splices &8xSC Simplex connection points or 1x4/1x8 PLC splitter

Removable splice tray for easy installation

Accepts loose tube, distribution and pre-terminated cables

Integrated bend radius protection

Removable door for ease of installation

Supplied with 8 heat shrink splice protectors

Supplied with transit tubing

Supplied with wall fixings and tie wraps

ROHS, REACH compliant

.

Specification

Model FDB-108A-6
Adapter 8pcs of SC Simplex / LC Duplex
Cable Ports 2/3
Applicable cable OD 5-12mm
Box Dimensions(mm) 243mm*195mm*55mm
Material ABS/ABS+PC
Max capacity(F) 24F Splices&Connection
Installation method Rack mount and pole mount

Weatherproof FTTH Optical Distribution Box 8 Cores Fiber Optic Terminal Box 1

Operation conditions

Temperatures: -40℃ -- 60℃

Humidity: 93% at 40℃

Air Pressure: 62kPa – 101kPa



Standard Accessories

Labeling paper, abrasive paper, self-adhesive positioning block, heat-shrink protective sleeves, nylon tie,insulation tape, fixing screws.
