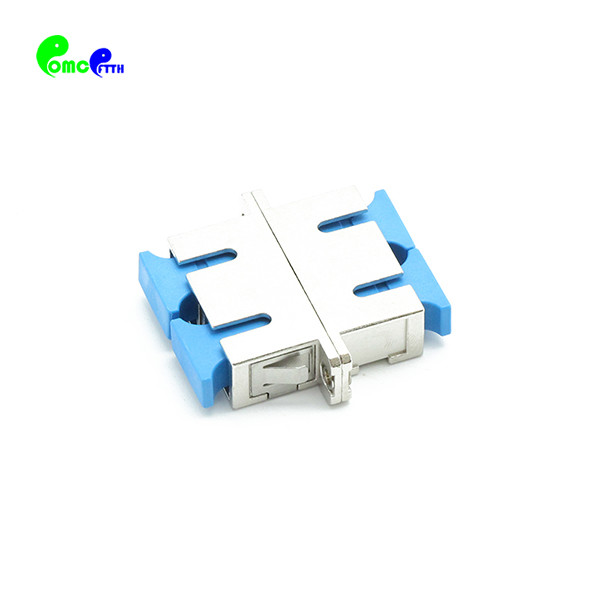

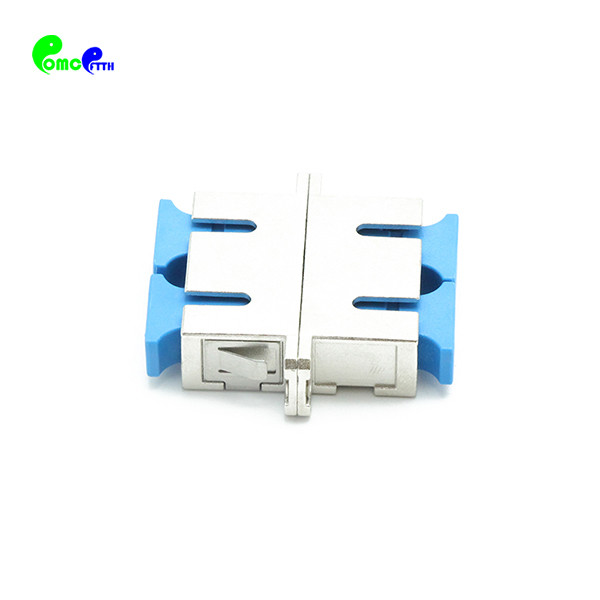

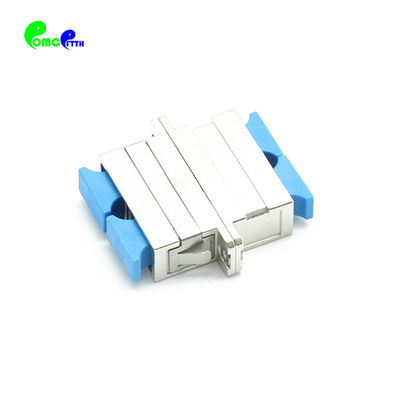

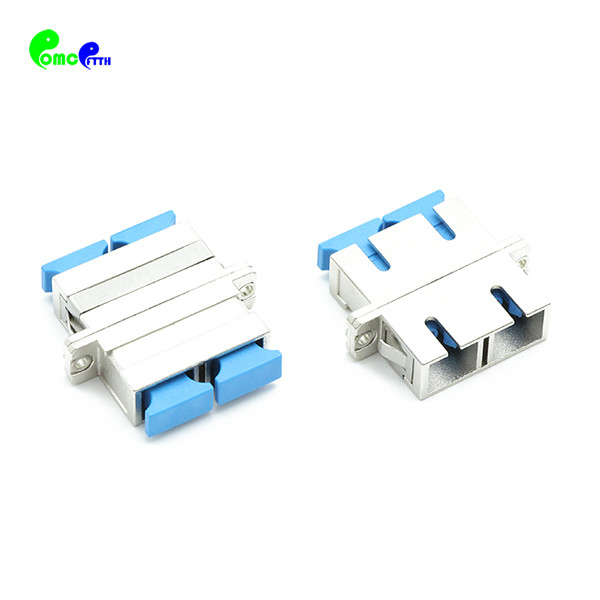

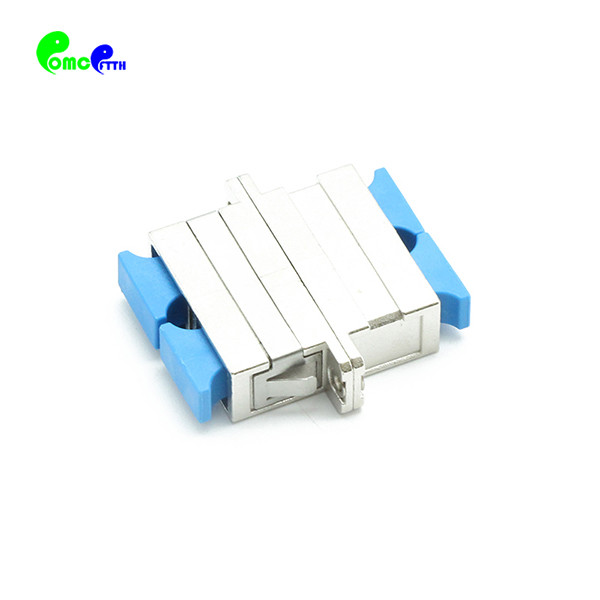

Full Flange SC UPC Duplex Fiber Optic Adapter Singlemode Metal Material

Place of Origin China
Brand Name OMC or OEM
Certification ROHS and ISO
Model Number SC UPC DX SM Fiber Adapter
Minimum Order Quantity 5pcs
Price Negotiable
Packaging Details 25 pcs in a plastic box, several boxes in a carton of 54*39*35cm
Delivery Time 3 days after payment confirmed
Payment Terms T/T, Western Union, L/C
Supply Ability 1000000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name SC Duplex Metal Fiber Optic Adapter Insertion Loss ≤0.2dB
Return Loss ≥50 DB Dust Cover Blue
Durability 0.1dB Max. Material Metal
Storage Temp -40~+85℃ Operating Temperature -40ºC To +85ºC
High Light

SC UPC Duplex Fiber Optic Adapter

,

UPC SC duplex adapter

,

SC Duplex Metal Fiber Optic Adapter

Leave a Message
Product Description

Full Flange SC UPC Duplex Fiber Optic Adapter Singlemode Metal Material



Fiber Optic Adapter SC UPC Duplex Singlemode Metal Adapter





SC Duplex Metal adapter are developed to couple and mate two SC connector plugs.



Our range of high-quality SC adapters have high precision alignment sleeves for reliability and improved reconnect ability. For single mode and multimode applications, a ceramic sleeve is supplied. The housing is available in different colors with options for flange or flangeless body, metal clips or inbuilt clips. A protective cap is provided at each end of the adapter with the same color as the adapter



OMC Adapters design, material and manufacturing process assure long life and high repeatability of optical performances even for different brand connectors mating.



sc upc duplex sm fiber optic adapter





Specifications



Test item (SM-9/125) UPC (SM-9/125) APC MM PC
Insertion Loss ≤0.2dB(Standard Grade); ≤0.1dB(Premium Grade);
Return Loss ≥50 dB ≥60 dB ≥35 dB
Durability (500 Mating) 0.1dB Max.
Withdrawal force(g/f) 2.0N ~ 5.9N (200gf ~ 600gf)
Storage Temp(℃) -40~+85



sc dx sm metal fiber optic adapter 1



Material



Parts name Material Color
Housing body Nickel-plated brass or nickel-plated zinc -
Sleeve High precision Ceramic sleeve White
Inside hook PBT/PEI Blue, Green, Beige
Metal Plate Stainless steel -
Dust Cover PE/ABS Blue/Black/Green or Customized



Environment and Mechanical



Properties Test condition Conformance Test result
Vibration 10-55Hz, 1.5mm, 60min IEC61300-2-1 ≤0.2dB
Mating Durability 1000 Mating, clean every 25 mating. IEC61300-2-2 ≤0.2dB
Impact 1.5m, 8 drops IEC61300-2-6 ≤0.2dB
Strength of Coupling Mechanism 40N, 10Min, L=22-28cm IEC61300-2-12 ≤0.2dB
Temperature Cycling 40ºC to +75ºC, 40 cycles IEC61300-2-22 ≤0.2dB
Temperature humidity cycling 40ºC, 95%, 96Hr IEC61300-2-21 ≤0.2dB
Operating Temperature -40ºC to +85ºC   ≤0.2dB
Storage Temperature -40ºC to +85ºC   ≤0.2dB



Features:



Complies with IEC 61754-4 standard

Available in Flanged and Flangeless options

Push-pull locking mechanism for easy installation

Precision connection with sleeve

SM and MM connector can be used interchangeably

Low insertion loss, High Return loss

Good interchangeability and reliability

Meet IEC and ROHS standards

High precision of mechanical dimensions Accuracy



sc dx sm metal fiber optic adapter



Available for Simplex of SM UPC, SM APC, MM OM1 62.5/125, MM OM2 50/125



Application:

Patch panels, ODF and other optical connections.

Optical networks demarcation and monitoring point
