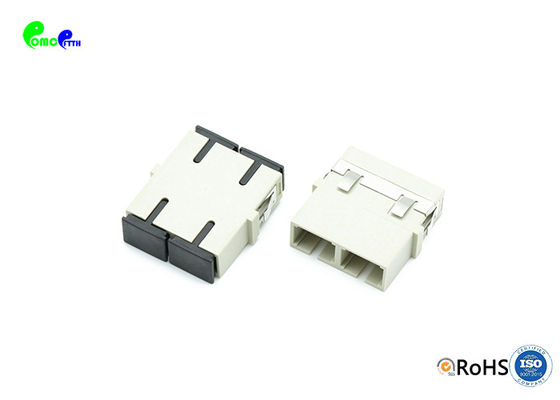

Multimode 5.9N TF SC Flangeless Fiber Optic Adapter PBT

Place of Origin China
Brand Name OMC or OEM
Certification ROHS and ISO
Model Number TF Type SC DX adapter
Minimum Order Quantity 25
Price Negotiation
Packaging Details 25pcs in a plastic box several pieces in a carton of 54*35*39cm. other size carton is available too.
Delivery Time 3-5 work days
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability 30000 per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name TF Type SC Duplex Multimode Fiber Optic Adaptor Reduced Flange Insertion Loss ≤0.1dB
Return Loss ≥35 DB Durability (500 Mating) 0.1dB Max
Withdrawal Force(g/f) 2.0N ~ 5.9N (200gf ~ 600gf) Storage Temp(℃) -40~+85
High Light

TF SC Flangeless Fiber Optic Adapter

,

5.9N Flangeless Fiber Optic Adapter

,

PBT Multimode Duplex Fibre Adapter

Leave a Message
Product Description

Product description

TF Type LC&SC Fiber Adapter are developed to couple and mate 2/4/8 SC&LC connector plugs. Each TF Type Fiber adapter have 4pcs stainless steel mounting clips/hooks allowing it to be easily snapped into rectangular cut outs and fix very well and stable.



Our range of high-quality TF Type Fiber adapters have high precision alignment sleeves for reliability and improved reconnect ability. For single mode and multimode applications, a ceramic sleeve is supplied. The housing is available in different colors with options for flange or flangeless body.





Material

Parts name Material Color
Housing body High quality PC(UL-94V0) Grey or Customized
Sleeve High precision Ceramic sleeve White
Inside hook PBT/PEI Grey or Customized
Metal Plate Stainless steel -
Dust Cover PE/ABS Grey or Customized





Specifications
Test item MM PC
Insertion Loss ≤0.1dB
Return Loss ≥35 dB
Durability (500 Mating) 0.1dB Max.
Withdrawal force (g/f) 2.0N ~ 5.9N (200gf ~ 600gf)
Storage Temp(℃) -40~+85





Features:

Complies with IEC 61754-4 standard

Available in Flanged and Flangeless options

Push-pull locking mechanism for easy installation

Precision connection with sleeve

SM and MM connector can be used interchangeably

Low insertion loss, High Return loss

Good interchangeability and reliability

Meet IEC and ROHS standards

High precision of mechanical dimensions Accuracy



Application:

Patch panels, ODF and other optical connections.
Optical networks demarcation and monitoring point

Packing & Delivery:
25 pieces in one plastic box,
Several boxes then packed in a 54*39*35 carton paper box
other size carton is available too.
