LC Fiber Optic LC Adapter SM MM Simplex Duplex APC UPC SC Footprint Zirconia Ceramic Sleeve good IL

Product Details:
Place of Origin: Shenzhen,China
Brand Name: OMC or OEM
Certification: ISO, ROHS
Model Number: LC
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: Negotiation
Packaging Details: Blister box
Delivery Time: 3 days after payment comfirmed
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 50000pcs per week

Detail Information

Product Name: LC Fiber Optic LC Adapter SM MM Simplex Duplex APC UPC SC Footprint Zirconia Ceramic Sleeve Good IL Insertion Loss: ≤0.2dB
Withdrawal Force (g/f): 200~600 Durability: <0.10 DB Typical Change, 500 Matings
Standard: GR-326, IEC, TIA/EIA Standard Compliant. Sleeve: Zirconia
Body Material: PEI Or PC Flammability: UL94 V-0
High Light:

single mode fiber adapter

,

fiber optic cable adapter

Product Description

LC Fiber Optic LC Adapter SM MM Simplex Duplex APC UPC SC Footprint Zirconia Ceramic Sleeve good IL





Optical Adaptor are developed to couple and mate two identical or two different (hybrid) connector plugs. The housing of the Adaptors of the last generation has a reference key for the right position coupling and zirconia split sleeve for high alignment.



OMC could supply standard types of Adaptors, such as FC, SC, LC, ST, MU, MTRJ, MPO/MTP etc. Hybrid is also available.

OMC Adaptors design, material and manufacturing process assure long life and high repeatability of optical performances even for different brand connectors mating.



As for LC adapter OMC can offer below types.

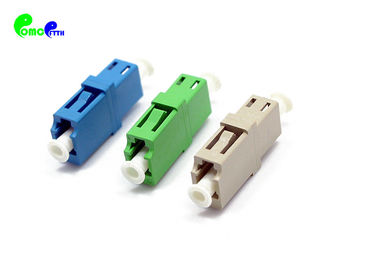

1, Simplex LC

2, Simplex LC in SC footprint structure

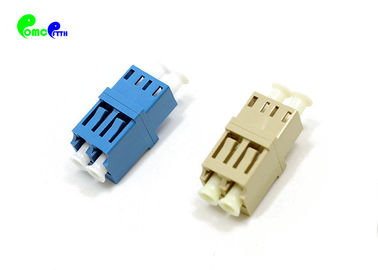

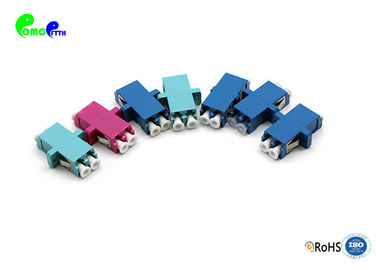

3, Duplex LC in SC footprint structure (standard flange and reduced flange)

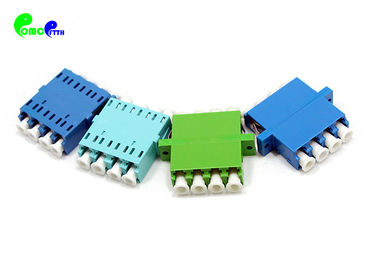

4, Quad LC

5, Metal LC Duplex in SC footprint structure

6,Metal LC Quad



Spec Performance:

  • IL: <0.2dB,
  • Withdrawal force (g/f): 200~600
  • Durability: <0.10 dB typical change, 500 matings
  • Temp.: -40°C to +80°C
  • ROHS certificated

Application:

  • Patch panels, ODF and other optical connections.
  • Optical networks demarcation and monitoring point

Competitive Advantage:



Telcordia GR-326, IEC, TIA/EIA Standard compliant.

100% Optical performance inspection.

Low Insertion Loss.

RoHS Compliance.

Customized design and production.



Parts &Material



Material Remarks Remarks
Sleeve Zirconia
Housing PC or PEI Flammability UL94 V-0
Dust cap PVC Flammability UL94 V-0
Metal Clip Stainless Steel



Optical Performance



Quality Level Premium Grade Standard Grade
Insertion Loss ≤0.1dB ≤0.2dB
Durability 1000 times 1000 times



Environment and Mechanical



Properties Test condition Conformance Test result
Vibration 10-55Hz, 1.5mm, 60min IEC61300-2-1 ≤0.2dB
Mating Durability 1000 Mating, clean every 25 mating. IEC61300-2-2 ≤0.2dB
Impact 1.5m, 8 drops IEC61300-2-6 ≤0.2dB
Strength of Coupling Mechanism 40N, 10Min, L=22-28cm IEC61300-2-12 ≤0.2dB
Temperature Cycling 40ºC to +75ºC, 40 cycles IEC61300-2-22 ≤0.2dB
Temperature humidty cycling 40ºC, 95%, 96Hr IEC61300-2-21 ≤0.2dB
Operating Temperature -40ºC to +85ºC   ≤0.2dB
Storage Temperature -40ºC to +85ºC   ≤0.2dB



Products family



LC Fiber Optic LC Adapter SM MM Simplex Duplex APC UPC SC Footprint Zirconia Ceramic Sleeve good IL 0

LC Fiber Optic LC Adapter SM MM Simplex Duplex APC UPC SC Footprint Zirconia Ceramic Sleeve good IL 1

LC Fiber Optic LC Adapter SM MM Simplex Duplex APC UPC SC Footprint Zirconia Ceramic Sleeve good IL 2

LC Fiber Optic LC Adapter SM MM Simplex Duplex APC UPC SC Footprint Zirconia Ceramic Sleeve good IL 3

LC Fiber Optic LC Adapter SM MM Simplex Duplex APC UPC SC Footprint Zirconia Ceramic Sleeve good IL 4

LC Fiber Optic LC Adapter SM MM Simplex Duplex APC UPC SC Footprint Zirconia Ceramic Sleeve good IL 5

LC Fiber Optic LC Adapter SM MM Simplex Duplex APC UPC SC Footprint Zirconia Ceramic Sleeve good IL 6

LC Fiber Optic LC Adapter SM MM Simplex Duplex APC UPC SC Footprint Zirconia Ceramic Sleeve good IL 7

LC Fiber Optic LC Adapter SM MM Simplex Duplex APC UPC SC Footprint Zirconia Ceramic Sleeve good IL 8



Company Information:



OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.



LC Fiber Optic LC Adapter SM MM Simplex Duplex APC UPC SC Footprint Zirconia Ceramic Sleeve good IL 9

LC Fiber Optic LC Adapter SM MM Simplex Duplex APC UPC SC Footprint Zirconia Ceramic Sleeve good IL 10

LC Fiber Optic LC Adapter SM MM Simplex Duplex APC UPC SC Footprint Zirconia Ceramic Sleeve good IL 11


LC Fiber Optic LC Adapter SM MM Simplex Duplex APC UPC SC Footprint Zirconia Ceramic Sleeve good IL 13

LC Fiber Optic LC Adapter SM MM Simplex Duplex APC UPC SC Footprint Zirconia Ceramic Sleeve good IL 14


FAQ:



1. Are you the real factory?

Yes,we are the real factory more than 10 years



2. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.



3. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.



4. What is your delivery time?

Within 24 hours for normal kinds of fiber optic cable;

3~5 days for fiber optic patch cords with 10000 connectors.



5. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.



6. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.



7. Payment

For large orders: T/T, L/C

For small orders: T/T,Western Union and Paypal are acceptable
