Duplex Multimode Fiber Optic Patch Cord 62.5 / 125 OM1 LC UPC - LC UPC

Place of Origin China
Brand Name OMC or OEM
Certification RoHS
Model Number OM1
Minimum Order Quantity 10pcs
Price Negotiation
Packaging Details PE bag and Carton
Delivery Time 5-8 working days
Payment Terms L/C, T/T, Western Union
Supply Ability 100000pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name LC- LC OM1 62.5/125um Patch Cord Connector Type LC To LC
Polish Type UPC To UPC Fiber Mode OM1 62.5/125μm
Insertion Loss ≤0.3dB Return Loss ≥30dB
High Light

OM1 Multimode Fiber Optic Cable

,

Duplex Multimode Fiber Optic Patch Cord

,

Duplex Multimode Fiber Optic Cable

Leave a Message
Product Description

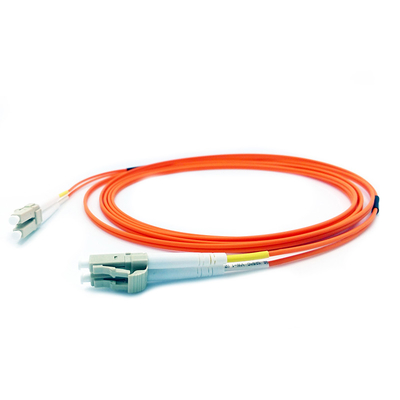

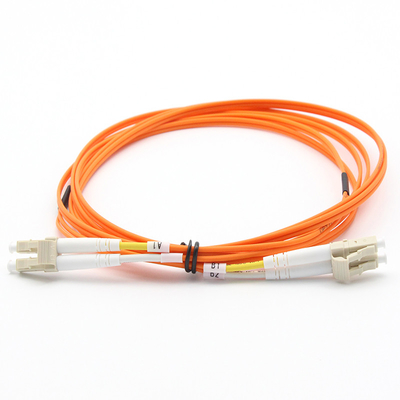

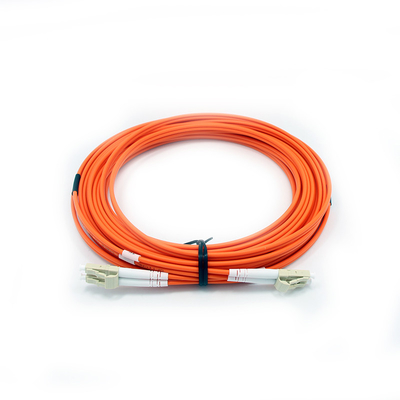

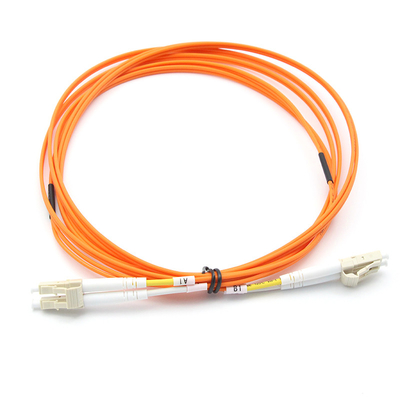

62.5/125 OM1 LC UPC- LC UPC Duplex Multimode Fiber Optic Patch Cord





The 62.5/125μm OM1 multimode fiber optic cable is suitable for fast Ethernet, gigabit Ethernet and fiber channel applications, such as in data center, telecom room, server farms, cloud storage networks, and any place fiber jumper cables are needed.


This 62.5/125 OM1 multimode fiber optic cable is ideal for connecting 100/1000BASE-SX transceivers etc. for fast Ethernet, gigabit Ethernet and fiber channel applications.

patch cord

Specification:

Connector Type LC to LC Polish Type UPC to UPC
Fiber Count Duplex Fiber Mode OM1 62.5/125μm
Wavelength 850/1300nm 1G Ethernet Distance 280m at 850nm
Insertion Loss ≤0.3dB Return Loss ≥30dB
Fiber Grade G.651 Minimum Bend Radius 15mm
Attenuation at 850nm 3.0 dB/km Attenuation at 1300nm 1.0 dB/km
Cable Jacket PVC Cable Diameter 2.0mm
Polarity A(Tx) to B(Rx) Operating Temperature -20~70°C



Quality features:

YOFC G.651 optic fiber

15.0mm minimum bend radius

Insertion loss and return loss testing

End-face inspection

3D interferometer test





Company Information:



OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.



Fiber Optic Adapter SC APC Polish Type Couple Simplex 9 / 125μm With Full Flange Green Color

Fiber Optic Adapter SC APC Polish Type Couple Simplex 9 / 125μm With Full Flange Green Color

Fiber Optic Adapter SC APC Polish Type Couple Simplex 9 / 125μm With Full Flange Green Color


Fiber Optic Adapter SC APC Polish Type Couple Simplex 9 / 125μm With Full Flange Green Color

Fiber Optic Adapter SC APC Polish Type Couple Simplex 9 / 125μm With Full Flange Green Color



FAQ:



1. Are you the real factory?

Yes,we are the real factory more than 10 years



2. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.



3. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.



4. What is your delivery time?

Within 24 hours for normal kinds of fiber optic cable;

3~5 days for fiber optic patch cords with 10000 connectors.



5. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.



6. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.



7. Payment

For large orders: T/T, L/C

For small orders: T/T,Western Union and Paypal are acceptable
