270Hz Fiber Optic Tools Optical Multimeter FTTH Test Instrument
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | FHS2 Series Optical Laser Source | Output Wavelength | 1310 & 1550nm & 850 & 1300nm |
|---|---|---|---|
| Spectral Width | 5nm | Output Power | -5dBm±0.5dB |
| Auto Power-off | Yes | Dimension | 160mmL*76mmW*45mmH |
| Net Weight | 270g | Operating Temperature | -10 To +50°C |
| High Light | 270 Hz Fiber Optic Tools,FTTH Fiber Optic Tools,FTTH Optical Multimeter |
||
Product Description
270Hz Fiber Optic Tools Optical Multimeter FTTH Test Instrument
Optical fiber multiMeter laser fiber optical light source power meter handheld FTTH test instrument
Description
FHS2 Series Optical Laser Source is an advanced version of Laser Sources, with better features and more functions.
Auto-wavelength Recognition
FHS2 Series Optical Laser Source transmits with a wavelength-identification digital encrypted protocol, enabling FHP2 Series Optical Power Meter to automatically use the proper calibration wavelength. This feature reduces the need for communication between the two technicians and decreases the possibility of making mistakes.
FHS2 Series Optical Laser Source offers excellent stability and portability for accurate fiber optic testing.
Single output port provides stable laser power at dual wavelengths. The compact unit operates in either continuous wave (CW) mode or modulated mode. A low battery indicator reminds the user of replacing the battery.
Features
Easy-to-use, straight forward operation
Eye-catching handheld appearance
LCD backlight for easy operation in dark environment
±3dB adjustable output
Rechargeable battery inside
850 & 1300nm available for multimode testing
One-year warranty and recommended calibration interval
Specification
| Type | FHS2D02 | FHS2D02F | FHS2D03 | FHS2D03F | |
| Output Wavelength | 1310 & 1550nm | 850 & 1300nm | |||
| Emitter Type | LD | ||||
| Output Stability |
short term (15min): <±0.05dB@1310, 1550nm; ±0.1dB@850&1300 long term (5hours):<±0.1dB@1310, 1550nm; ±0.2dB@850&1300 |
||||
| Central Wavelength | 1310±20nm & 1550±20nm | 850±10nm & 1300±20nm | |||
| Spectral Width | 5nm | ||||
| Output Frequency(Hz) | 270Hz, 1kHz, 2kHz | ||||
| Output Power | -5dBm±0.5dB | ||||
| Adjustable Range | ±3dB,0.1dB/step | N/A | ±3dB,0.1dB/step | N/A | |
| Auto Power-off | Yes | ||||
| Back-light | Yes | ||||
| Operating Temperature | -10 to +50°C | ||||
| Storage Temperature | -20 to +70°C | ||||
| Power supply | 2pcs*Ni-MH AA (2500mAh) | ||||
| Dimension | 160mmL*76mmW*45mmH | ||||
| Net Weight | 270g | ||||

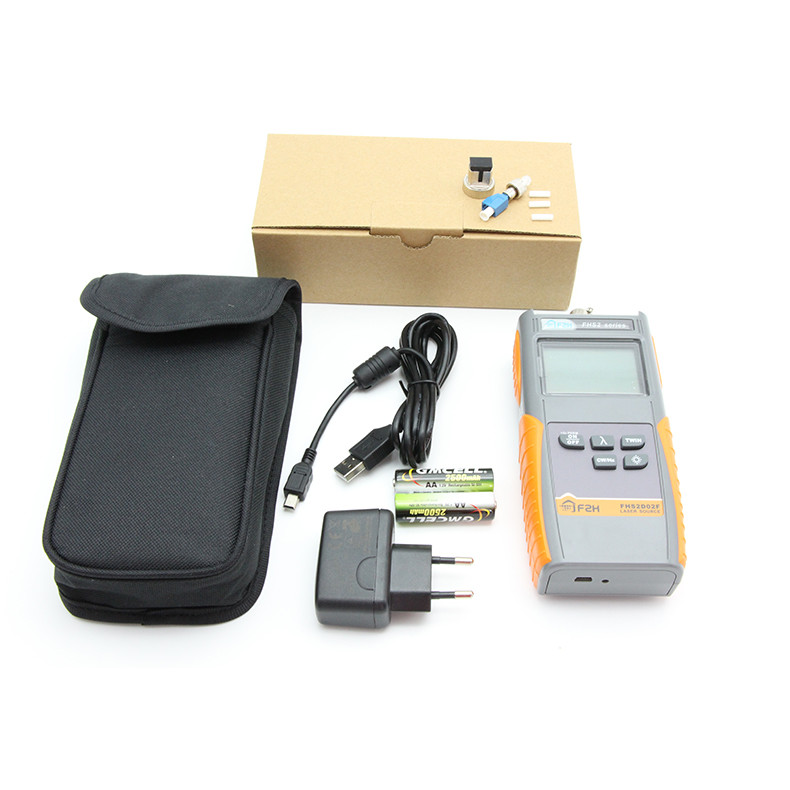

| Standard Accessories: | |||||
| FC/PC adapter, SC/PC adapter, 3*ceramic sleeves, 2*AA rechargeable batteries, AC/DC charger, carrying bag, user manual, test report | |||||
| Optional Accessories: | |||||
|
ST adapter (model: N000500); Male FC to female LC adapter for LC connector (model: HD078) |
|||||
| Customization: | |||||
| APC laser launcher | |||||
Note
FHS2D02: -8~0dBm Output Power is optional. (-3dBm±3dB, 0dBm max.)
FHS2D02F: -8~0dBm Output Power is optional. (0dBm max.)
