RoHS All In One FTTH Fiber Optic Tools Power Meter Optical Cable Tester

Place of Origin China
Brand Name OMC or OEM
Certification ISO RoHS
Model Number Handhold Power meter&VFL
Minimum Order Quantity 1
Price USD35-50
Packaging Details Box
Delivery Time 3-7 workdays
Payment Terms Western Union, L/C, T/T, Paypal
Supply Ability 1000000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model KF563 Power Meter&VFL Measurement Range -70~+10/-50~+26
Type Of Probe InGaAs Calibrated Wavelengths 850,1300,1310,1490,1550,1625 Nm
Uncertainty ±5% Power Supply Rechargeable Lithium Battery
Working Temperature (℃) -10~+60 Storage Temperature (℃) -25~+70
Dimensions (mm) 160x75x10mm Weight(g) 250
High Light

RoHS FTTH Fiber Optic Tools

,

1625nm Fiber Optic Tools

,

InGaAs Optical Cable Tester

Leave a Message
Product Description

RoHS All In One FTTH Fiber Optic Tools Power Meter Optical Cable Tester



All-in-one FTTH Fiber Optic Power Meter Cable Tester Handhold Visual Fault Locator Multifunction Power Meter



This portable optical power meter with red light source is an accurate portable instrument with long service time specially designed for the installation, operation and maintenance of fiber-optical network. It features fine appearance, controllable backlight display,automatic power off, supper wide testing range for optical power, high accuracy, self-calibration and universal interface. What’s more, the linearity index(mW) and nonlinear index (dBm) will be displayed in a same screen. The optical power meter can be used alone for saving power.





Power Meter Features:

Self Calibration

Set the Auto Off

Wavelength Memory function after turn off the tester

High Accuracy, high ,High sensitivity, high linearity-

Stable VFL Output

USB Charge port

FC,SC Connector

18650Li-ion Battery

Lower power consumption design, long standby time

Rubber Outshell, increased the protective properties for field work



Specification:



Optical Power Meter Detector Type InGaAs
Optical Connector ST/SC/FC & 2.5mm Universal
Calibrated Wavelengths 850,1300,1310,1490,1550,1625 nm
Measurement Range +6 ~ -70 dBm
Accuracy ±0.2 dB
Power Measurement Linearity ±0.1 dB
Display Resolution ±0.01 dB
Power Display Units dBm,mW,uW
Visual Fault Locator Output power 1mw/10MW/20mw/30mw
Range 12-km@SM
Connector ST/SC/FC & 2.5mm Universal
Laser safety rating Class 2
Wavelength 650nm±20nm
Output modes Continuous (CW),2 Hz pulsed
Reverse battery protection Yes
Others Power Supply 18650mAh Li-con battery
Auto Off 10 minutes
Working time >200hours(only OPM Work)
≥50(10mWVFL & OPM Work meanwhile)
Working Temperature -10~+45
Weight 250g
Dimensions 160x75x10mm







Application:



1. Maintenance Telecom





2. Maintenance CATV





3. Test Lab of Fiber Optic





4. Optical fiber sensors

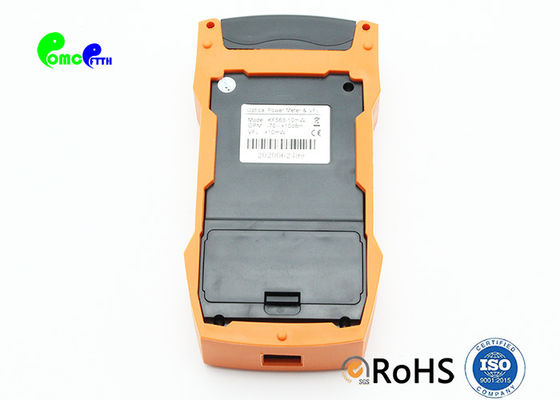

RoHS All In One FTTH Fiber Optic Tools Power Meter Optical Cable Tester 0

RoHS All In One FTTH Fiber Optic Tools Power Meter Optical Cable Tester 1RoHS All In One FTTH Fiber Optic Tools Power Meter Optical Cable Tester 2
