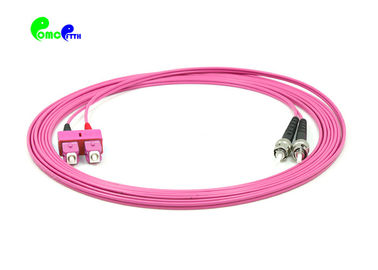

Duplex Multimode Fiber Optic Patch Cord 1M SC-ST OM4 50 / 125um Figure 8 3.0mm

Place of Origin China
Brand Name OMC or OEM
Certification ROHS and ISO
Model Number SC-ST DX OM4
Minimum Order Quantity 1pcs
Price Negotiable
Packaging Details one peace in box, several pieces in cartoon
Delivery Time 3-7 work days
Payment Terms L/C, T/T, Western Union, Paypal
Supply Ability 20000 per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name SC-ST DX OM4 Optical Patch Cord Connector Type SC-ST
Fiber Mode 50/125um Wavelength 850nm
Insertion Loss ≤0.3dB Return Loss PC≥30dB
Fiber Grade OM4 Fiber Count Duplex
Cable Diameter 2.0/0.9/3.0mm Cable Jacket PVC/LSZH/OFNP
High Light

fiber optic patch cord

,

fiber optic jumpers

Leave a Message
Product Description

1M SC-ST OM4 Duplex Multimode Fiber Optic Patch Cord 50/125um Figure 8 Fiber Patch Cable 3.0mm





Patch Cords are used to provide optical connection for fiber optic electronics. The use of the patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices. The patch cord can be used in interconnect or cross-connect path connecting the incoming fibers to the electronic equipment and providing patching within the fiber paths. Patch Cords include simplex, duplex and Multi-fibers assemblies.



OMC’s Patch cables are manufactured and tested in compliance with TIA 604 (FOCIS), IEC 61754 and YD/T industry standards. OM1, OM2, OM3, OM4, OM5 or OS2 fiber types to meet the demand of Gigabit Ethernet, 10 Gigabit Ethernet and high speed Fiber Channel. Every termination through rigorous parameter test to ensure the highest in network performance.



Connector’s Standard:



SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973.



ST: TIA/EIA, FOCIS2, GR-326. IEC61754-2 and JIS C5973 Etc.



Optical Specifications



Connector SC,ST Jacket OD(mm) 2.0x4.1
Fiber Mode 50/125μm Jacket Color OM4:Aqua/Violet/ Magenta
Polish PC Wavelength MM:850nm
Cable Type Zip-cord Duplex (Fig 8 Duplex) Jacket Material LSZH/PVC/OFNR/OFNP
Insertion loss ≤0.3dB(IEC Grade C) Insertion loss ≤0.12dB(IEC Grade B)
Return loss



MM P ≥ 35dB(min)

Interchangeability &Vibration ≤0.2dB
Operating temperature -40~75°C Storage temperature -45~85°C



End-face Quality (MM)



Zone Range (μm) Scratches Defects Reference
A: Core 0 to 65 None None IEC 61300-3-35:2015
B: Cladding 65 to 115 None None
C: Adhesive 115 to 135 None None
D: Contact 135 to 250 None None
E: Rest of ferrule None None



Length Tolerance



Overall Length(L)(m) length of tolerance(cm)
0<L<1 +5/-0
1<L<10 +10/-0
10<L<40 +15/-0
40<L +0.5% x L/-0



Product Highlights



Premium Performance Fiber Optic Cable

Fiber optic cables are used for connections to data center, CATV, fiber test equipment, LAN, telecommunication networks, FTTx, communication rooms, fiber optic communication system, defense combat readiness, etc.

2 (1).png



package-patch cord



Company Information

OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.

13



High Quality Fibre Optic Cable Guarantee



Comprehensive performance testing makes sure the cable work more securely and data transmission more reliable and stable in your network.

Quality contorl.jpg


Certification:

Our products are confirmed by these certifications

Duplex Multimode Fiber Optic Patch Cord 1M SC-ST OM4 50 / 125um Figure 8 3.0mm 5





Duplex Multimode Fiber Optic Patch Cord 1M SC-ST OM4 50 / 125um Figure 8 3.0mm 7
