High Precision Ceramic Sleeve Fiber Optic Adapter Meet IEC / ROHS Standards

Place of Origin China
Brand Name OMC or OEM
Certification ISO, ROHS
Model Number LC Duplex Adapter with internal shutter- Reduced flange SC footprint
Minimum Order Quantity 50pcs
Price Negotiation
Packaging Details Blister box
Delivery Time 3 days after payment comfirmed
Payment Terms L/C, T/T, Western Union, Paypal
Supply Ability 50000pcs per week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Products LC Duplex Adapter With Internal Shutter- Reduced Flange Fiber Optic Adapter Insertion Loss ≤0.2dB
Withdrawal Force (g/f) 200~600 Durability <0.10 DB Typical Change, 500 Matings
Standard GR-326, IEC, TIA/EIA Standard Compliant. Sleeve Zirconia Ceramic 1.25mm Split Sleeve
Body Material PC Flammability UL94 V-0
High Light

single mode fiber adapter

,

fiber optic connector adapters

Leave a Message
Product Description

LC Duplex Fiber Optic LC Adapter with internal shutter- Reduced flange SC footprint available for SM,MM , OM3 , OM4





LC Duplex with internal shutter-reduced flange SC footprint type adapter is a one-piece design adapter. The shutter is 100% automatic and requires no physical handling of the shutter door. You can actuate this integrated, retractable shutter inside the adapter body by inserting the LC connector into the adapter. The shutter automatically opens as you insert the LC connector, and closes as you extract it. Due to the special design of the shutter, it will not touch the ferrule end face when you insert a connector, thus preventing end face damage. The internal shutter prevents eye exposure to lasers and provides protection from dust and other contaminants.



With increasingly high-powered active devices being used in today’s networking and telecommunication platforms, Eye safety and connector cleanliness are an absolute necessity. OMC’s LC adapter with Internal shutter has been designed to meet this growing need.



Products details:



Reduced Flange type Drawing

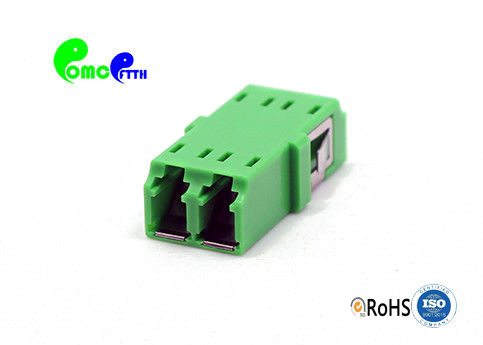

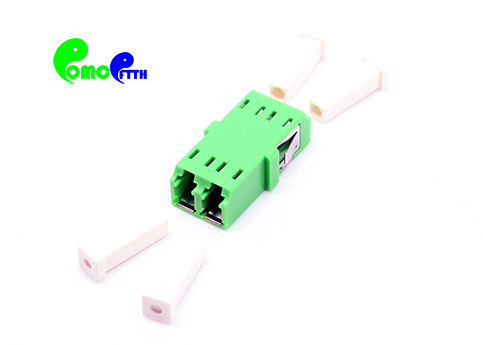

High Precision Ceramic Sleeve Fiber Optic Adapter Meet IEC / ROHS Standards 0 High Precision Ceramic Sleeve Fiber Optic Adapter Meet IEC / ROHS Standards 1



Features:



TIA/EIA-604 FOCIS-10 compatible; exceeds TIA/EIA-568-B.3 requirements

Complies with IEC 61754-4, Flammability UL94 V-0 standard

Available in Flanged and Flangeless options

Precision connection with sleeve

Low insertion loss, High Return loss

Good interchangeability and reliability

Meet IEC and ROHS standards

High precision of mechanical dimensions Accuracy



Material



Parts name Material Color
Housing body PC Blue, Green Customized
Sleeve High precision Ceramic sleeve White
Inside hook PC Blue, Green Customized
Metal Plate Bronze bronze -
Inner shutter SUS304 -
Dust Cover PVC Black



Specifications



Test item (SM-9/125) UPC (SM-9/125) APC MM PC
Insertion Loss ≤0.2dB(Standard Grade); ≤0.1dB(Premium Grade);
Return Loss ≥50 dB ≥60 dB ≥35 dB
Durability (1000 Mating) 0.1dB Max.
Withdrawal force(g/f) 2.0N ~ 5.9N (200gf ~ 600gf)
Storage Temp(℃) -40~+85



Environment and Mechanical



Properties Test condition Conformance Test result
Vibration 10-55Hz, 1.5mm, 60min IEC61300-2-1 ≤0.2dB
Mating Durability 1000 Mating, clean every 25 mating. IEC61300-2-2 ≤0.2dB
Impact 1.5m, 8 drops IEC61300-2-6 ≤0.2dB
Strength of Coupling Mechanism 40N, 10Min, L=22-28cm IEC61300-2-12 ≤0.2dB
Temperature Cycling 40ºC to +75ºC, 40 cycles IEC61300-2-22 ≤0.2dB
Temperature humidity cycling 40ºC, 95%, 96Hr IEC61300-2-21 ≤0.2dB
Operating Temperature -40ºC to +85ºC   ≤0.2dB
Storage Temperature -40ºC to +85ºC   ≤0.2dB



Application:



Patch panels, ODF and other optical connections.

Optical networks demarcation and monitoring point



Hight light

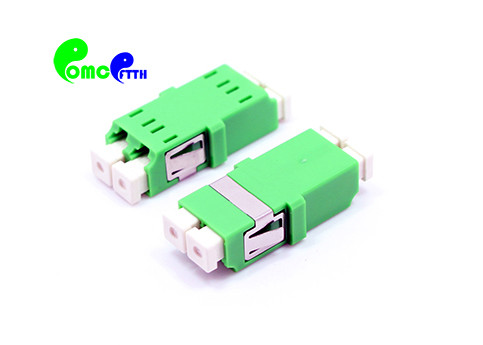

High Precision Ceramic Sleeve Fiber Optic Adapter Meet IEC / ROHS Standards 2



Company Information:



OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.



High Precision Ceramic Sleeve Fiber Optic Adapter Meet IEC / ROHS Standards 3

High Precision Ceramic Sleeve Fiber Optic Adapter Meet IEC / ROHS Standards 4

High Precision Ceramic Sleeve Fiber Optic Adapter Meet IEC / ROHS Standards 5


High Precision Ceramic Sleeve Fiber Optic Adapter Meet IEC / ROHS Standards 7

High Precision Ceramic Sleeve Fiber Optic Adapter Meet IEC / ROHS Standards 8


FAQ:



1. Are you the real factory?

Yes,we are the real factory more than 10 years



2. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.



3. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.



4. What is your delivery time?

Within 24 hours for normal kinds of fiber optic cable;

3~5 days for fiber optic patch cords with 10000 connectors.



5. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.



6. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.



7. Payment

For large orders: T/T, L/C

For small orders: T/T,Western Union and Paypal are acceptable
