Fiber Optic Adapter ST - SC Hybrid Simplex Single Mode Metal Mating Sleeve Female To Female SC Footprint Coupler

Place of Origin China
Brand Name OMC or OEM
Certification ROHS and ISO
Model Number ST-SC Hybrid Simplex Adapter
Minimum Order Quantity 5
Price Negotiable
Packaging Details PE bag
Delivery Time 3-7 workday
Payment Terms T/T, Western Union, Paypal
Supply Ability 1000000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Products Fiber Optic Adapter ST - SC Hybrid Simplex Single Mode Metal Mating Sleeve Female To Female SC Footprint Coupler Connector 1 ST Female
Connector 2 SC Female Fiber Mode Singlemode/Multimode
Insertion Loss ≤0.2dB Return Loss UPC≥50db, APC≥60db
Durability 1000 Times Operating/Storage Temperature -40~85°C
High Light

single mode fiber adapter

,

fiber optic connector adapters

Leave a Message
Product Description

Fiber Optic Adapter ST - SC Hybrid Simplex Single Mode Metal Mating Sleeve Female To Female SC Footprint Coupler





Female to Female Hybrid Adapter are developed to couple and mate two different (hybrid) connector plugs. The housing of the Adapters of the last generation has a reference key for the right position coupling and zirconia or phosphorus bronze split sleeve for high alignment.



This ST(Female) to SC(Female) SC Footprint type fiber optic hybrid metal adapter, Converting FC connector to SC Connector. Variable FC interface conversion SC interface. Provided a simple and reliable solution for connecting two different optic fiber transmission joints.



OMC Adapters design, material and manufacturing process assure long life and high repeatability of optical performances even for different brand connectors mating.



Features:



Precision connection with sleeve

SM and MM connector can be used interchangeably

Low insertion loss, High Return loss

Good interchangeability and reliability

Meet IEC and ROHS standards

High precision of mechanical dimensions Accuracy




Specification



Test item (SM-9/125) UPC (SM-9/125) APC MM PC
Insertion Loss ≤0.2dB ≤0.2dB ≤0.2dB
Return Loss ≥50 dB ≥60 dB ≥35 dB
Durability (500 Mating) 0.1dB Max.
Withdrawal force(g/f) 200~600
Storage Temp -40~+85


Material



Parts name Material Color
Housing body Zinc alloy -
Sleeve High precision Ceramic sleeve White
Inside hook PBT/PPS Blue/Green
Metal Plate Stainless Steel -
Dust Cover ABS/Rubber Black/Red/Yellow/Black/Green






Application:



Patch panels, ODF and other optical connections.

Optical networks demarcation and monitoring point



Available for Simplex of SM UPC, SM APC, MM OM1 62.5/125, MM OM2 50/125




Description



ST-SC Hybrid Simplex Female to Female Fibre Adapter

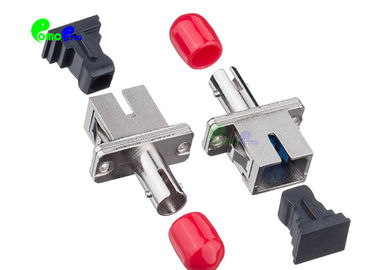

Fiber Optic Adapter ST - SC Hybrid Simplex Single Mode Metal Mating Sleeve Female To Female SC Footprint Coupler 0

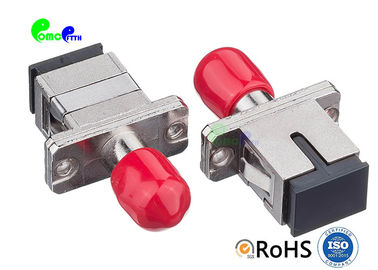

Fiber Optic Adapter ST - SC Hybrid Simplex Single Mode Metal Mating Sleeve Female To Female SC Footprint Coupler 1


Packaging & Shipping



Several piece in one plastic box,
Several boxes then packed in a 54*39*35 carton paper box

Other size carton is available too


Company Information:



OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.

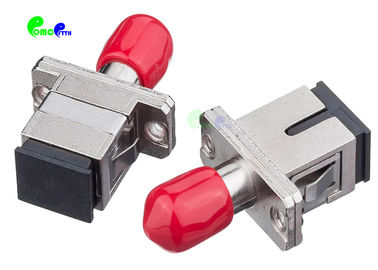

Fiber Optic Adapter ST - SC Hybrid Simplex Single Mode Metal Mating Sleeve Female To Female SC Footprint Coupler 2

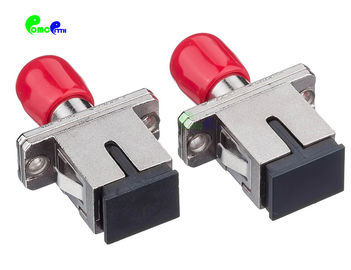

Fiber Optic Adapter ST - SC Hybrid Simplex Single Mode Metal Mating Sleeve Female To Female SC Footprint Coupler 3

Fiber Optic Adapter ST - SC Hybrid Simplex Single Mode Metal Mating Sleeve Female To Female SC Footprint Coupler 4


Fiber Optic Adapter ST - SC Hybrid Simplex Single Mode Metal Mating Sleeve Female To Female SC Footprint Coupler 6

Fiber Optic Adapter ST - SC Hybrid Simplex Single Mode Metal Mating Sleeve Female To Female SC Footprint Coupler 7
