SC Female - FC Female Simplex Hybrid Fiber Optic Adapter Ceramic Sleeve Red Cup With Metal Material

Place of Origin China
Brand Name OMC
Certification ROHS and ISO
Model Number SC Female - FC Female Simplex Hybrid
Minimum Order Quantity 50pcs
Price Negotiable
Packaging Details 20pcs/bag
Delivery Time 3-5days
Payment Terms T/T, Western Union
Supply Ability 50000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name SC Female - FC Female Simplex Hybrid Fiber Optic Adapter Ceramic Sleeve Red Cup With Metal Material Insertion Loss <0.2dB
Durability <0.10 DB Typical Change, 1000 Matings Material Metal
Temperature -40°C To +80°C Withdrawal Force (g/f) 200~600
High Light

single mode fiber adapter

,

fiber optic connector adapters

Leave a Message
Product Description

SC Female - FC Female Simplex Hybrid Fiber Optic Adapter Ceramic Sleeve Red Cup With Metal Material





Female to Female hybrid Adaptor

Hybrid adaptors are used for mating 2 different styles of connector. Our hybrid adaptors conform to international standards, are quality tested, and are available in singlemode, multimode and many different connector-type configurations.



Optical Adaptor are developed to couple and mate two identical or two different (hybrid) connector plugs. The housing of the Adaptors of the last generation has a reference key for the right position coupling and zirconia or phosphorus bronze split sleeve for high alignment.



OMC could supply standard types of Adaptors, such as SC-FC, SC-ST, FC-ST, SC-LC, FC-LC and ST-LC etc. Hybrid adaptor.



OMC Adaptors design, material and manufacturing process assure long life and high repeatability of optical performances even for different brand connectors mating.



Features:



Precision connection with sleeve

SM and MM connector can be used interchangeably

Low insertion loss, High Return loss

Good interchangeability and reliability

Meet IEC and ROHS standards

High precision of mechanical dimensions Accuracy



Specifications



Test item (SM-9/125) UPC (SM-9/125) APC MM PC
Insertion Loss ≤0.2dB ≤0.2dB ≤0.2dB
Return Loss ≥50 dB ≥60 dB ≥35 dB
Durability (500 Mating) 0.1dB Max.
Withdrawal force(g/f) 200~600
Storage Temp -40~+85



Material



Parts name Material Color
Housing body Zinc alloy -
Sleeve High precision Ceramic sleeve White
Inside hook PBT/PPS Blue/Green
Metal Plate Stainless steel -
Dust Cover ABS/Rubber Blue/Green/Black



Available for Simplex of SM UPC, SM APC, MM OM1 62.5/125, MM OM2 50/125



Application:

  • Patch panels, ODF and other optical connections.
  • Optical networks demarcation and monitoring point

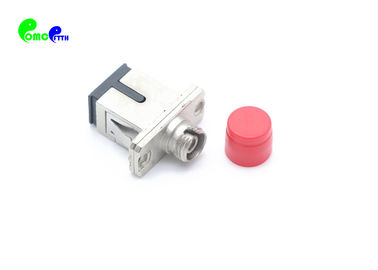

SC Female - FC Female Simplex Hybrid Fiber Optic Adapter Ceramic Sleeve Red Cup With Metal Material 0



Product Details:

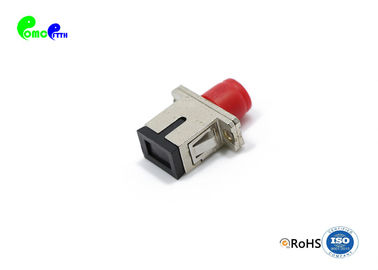

SC Female - FC Female Simplex Hybrid Fiber Optic Adapter Ceramic Sleeve Red Cup With Metal Material 1



Package method:



Several piece in one plastic box,
Several boxes then packed in a 54*39*35 carton paper box

Other size carton is available too.

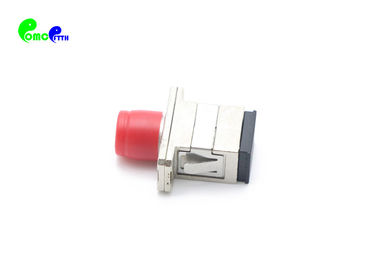

SC Female - FC Female Simplex Hybrid Fiber Optic Adapter Ceramic Sleeve Red Cup With Metal Material 2



Company Information:



OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.

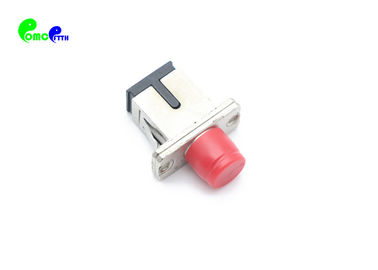

SC Female - FC Female Simplex Hybrid Fiber Optic Adapter Ceramic Sleeve Red Cup With Metal Material 3

SC Female - FC Female Simplex Hybrid Fiber Optic Adapter Ceramic Sleeve Red Cup With Metal Material 4

SC Female - FC Female Simplex Hybrid Fiber Optic Adapter Ceramic Sleeve Red Cup With Metal Material 5


SC Female - FC Female Simplex Hybrid Fiber Optic Adapter Ceramic Sleeve Red Cup With Metal Material 7

SC Female - FC Female Simplex Hybrid Fiber Optic Adapter Ceramic Sleeve Red Cup With Metal Material 8
