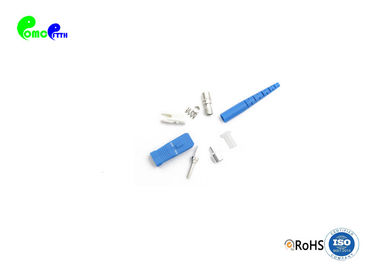

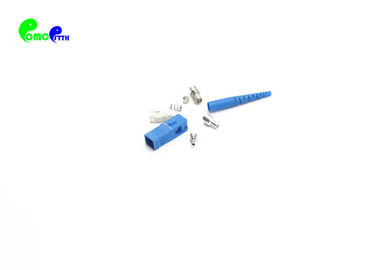

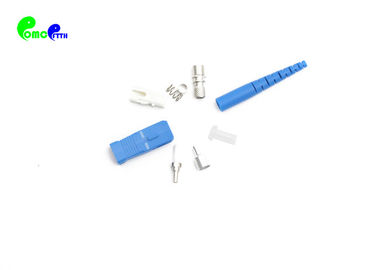

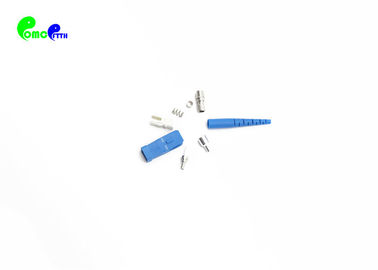

SC UPC Simplex 2.0mm Blue Fiber Optic Connectors Meet UL94-V0 Flammability Requirements

SC UPC Simplex 2.0mm Blue Fiber Optic Connectors Meet UL94-V0 Flammability Requirements

An optical fiber connector terminates the end of an optical fiber and enablequicker connection and disconnection than
splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors
lose very little light due to reflection or misalignment of the fibers.

The SC was developed by the laboratories at Nippon Telegraph and Telephone (NTT) in the mid-eighties, and was one
of the first connectors to hit the market following the advent of ceramic ferrules. Sometimes referred to as the ‘square
connector’ the SC has a push-pull coupling end face with a spring loaded ceramic ferrule. Initially intended for Gigabit
Ethernet networking, it was standardized into the telecommunications specification TIA-568-A in 1991 and slowly grew
in popularity as manufacturing costs came down. Due to its excellent performance it dominated fiber optics for over a
decade with only the ST rivalling it. Thirty years on, it remains the second most common connector for polarization
maintaining applications. The SC is ideally suited for datacoms and telecoms applications including point to point and
passive optical networking.

OMC manufactures many sorts of fiber connectors. Such as SC,LC,ST,FC,MU,MTRJ,E2000 ,MPO,MTP,SMA,DIN,D4 etc.

Industrial Standard:

SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973.

Products Details

Environmental Performance:

Operating Environment: -40°C ~ + 80°C

Meets UL94-V0 Flammability Requirements

ROHS compliant

Optical Performance:

Meets Telcordia GR-326-Core issue

IL(Typical):SM<0.3dB; MM <0.3dB:

RL(Typical):SM >50dB; MM >35dB:

Mechanical Performance:

Connection Durability: 500 Matings cycles

Connector Repeatability: MM<0.2dB; SM <0.1dB

Ferrule of SC

Connector drawing

Clip for SC

Why we should use Long ferrule hold for SC connector?
