Fiber Optic Adapter ST PC to ST PC SM Bulkhead Simplex Adapter IL< 0.2dB
| Place of Origin | China |
|---|---|
| Brand Name | OMC or OEM or No brand |
| Certification | ROHS and ISO |
| Model Number | ST PC to ST PC Bulkhead Simplex |
| Minimum Order Quantity | 50pcs |
| Price | Negotiable |
| Packaging Details | blister box |
| Delivery Time | 2-3 working days |
| Payment Terms | MoneyGram, Western Union, T/T, alipay, credit card, paypal |
| Supply Ability | 10000pcs per week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Fiber Optic Adapter ST PC To ST PC SM Bulkhead Simplex Adapter IL< 0.2dB | Connector Port1 | ST UPC |
|---|---|---|---|
| Connector Port 2 | ST UPC | Sleeve | Ceramic 2.5mm IDsleeve |
| Insertion Loss | <0.2dB | Connector Ports | Simplex |
| Temp | -40°C To + 80°C | Free Samples | Is Available |
| High Light | single mode fiber adapter,fiber optic cable adapter |
||
Product Description

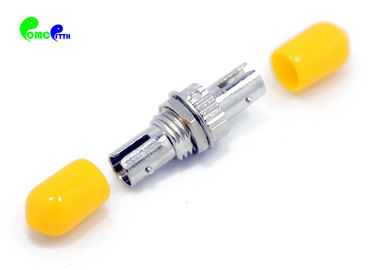

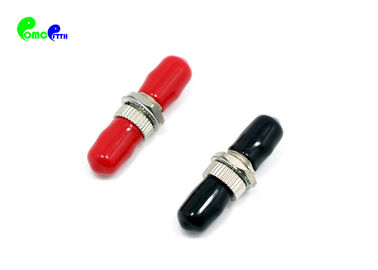

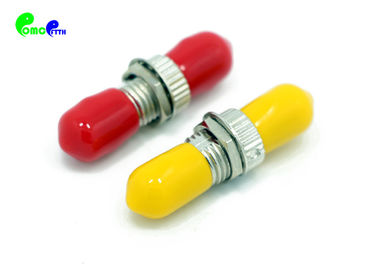

Fiber Optic Adapter ST PC to ST PC SM Bulkhead Simplex Adapter IL< 0.2dB
ST Simplex fiber adapter are developed to couple and mate two ST connector plugs. The housing of the Adapters of the last generation has a reference key for the right position coupling and zirconia or phosphorus bronze split sleeve for high alignment.
Our Adapters design, material and manufacturing process assure long life and high repeatability of optical performances even for different brand connectors mating.
Spec Performance
| Connector Type | ST-ST | Polish Type | UPC |
| Fiber Counts | Simplex | Fiber Mode | Singlemode |
| Insertion Loss | ≤0.2dB | Durability | ≤0.1dB |
| Flammability Rate | UL94-V0 | Working Temperature | -25~70°C |
Application
Patch panels, ODF and other optical connections.
Optical networks demarcation and monitoring point
Features:
Corrosion resistant housing
Precision connection with sleeve
SM and MM connector can be used interchangeably
Low insertion loss, High Return loss
Good interchangeability and reliability
Meet IEC and ROHS standards
High precision of mechanical dimensions Accuracy
Material
|
Parts name |
Material | Color |
| Housing body | nickel-plated zinc | - |
| Sleeve | High precision Ceramic sleeve | - |
| Nut | Brass | - |
| Washer | Brass | - |
| Ring | Brass | - |
| Dust Cover | Rubber | Red/Black/Yellow |
Products drawing.
Products details
Company Information:
OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.
FAQ:
1. Are you the real factory?
Yes,we are the real factory more than 10 years
2. What is your main products?
Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;
Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.
3. Do you have certificate for raw material?
We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.
4. What is your delivery time?
Within 24 hours for normal kinds of fiber optic cable;
3~5 days for fiber optic patch cords with 10000 connectors.
5. MOQ: what is your minimum quantity?
MOQ for fiber optic cables: 1KM
There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.
6. Do you have distributor in other country or domestic?
Until now, we sell our products to customers directly. And factory price could be offered.
7. Payment
For large orders: T/T, L/C
For small orders: T/T,Western Union and Paypal are acceptable
