Fiber Optic Connectors 2.0mm FC UPC Simplex MM Black For Patch Cord And Pigtail

Place of Origin China
Brand Name OMC or OEM
Certification ROHS and ISO
Model Number FC UPC MM Simplex 2mm
Minimum Order Quantity 200 pcs
Price Negotiable
Packaging Details 200 pcs per plastic bag, This easy to take and well-protected fiber optical cable package has been labelled and marked by OMC as default.
Delivery Time 3 days
Payment Terms T/T, Western Union, alipay, paypal, credit card, , MoneyGram, L/C
Supply Ability 1000000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Products Fiber Optic Connectors 2.0mm FC UPC MM Simplex Black For Patch Cord And Pigtail Boot Size&color 2.0mm Black
Insertion Loss <0.3dB Return Loss >35dB
Fiber Mode MM Match With Cable OD 1.2mm, 1.6mm, 2.0mm, And 2.8mm
High Light

fiber optic cable connectors

,

simplex fiber optic connector

Leave a Message
Product Description

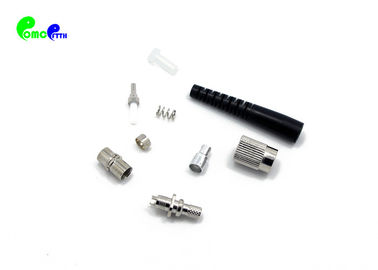

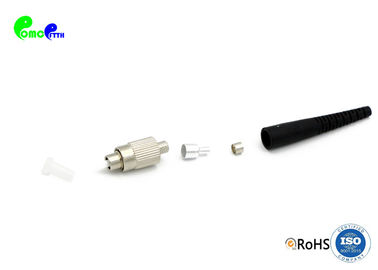

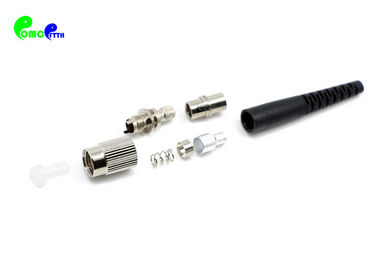

Fiber Optic Connectors 2.0mm FC UPC Simplex MM Black For Patch Cord And Pigtail





Optical Connector is a reusable passive component which could be applied in fiber and Cable connection. They are widely used in ODF, ODN,PON etc.

OMC manufactures many sorts of fiber connectors. Such as SC,LC,ST,FC,MU,MTRJ,E2000 ,MPO,MTP,SMA,DIN,D4 etc.



Industrial Standard:



FC: EIA /TIA-604-04, FOCIS4, NTT-FC, GR-326. IEC61754-13 and JIS C5973



Products Details



Fiber Connector FC Ceramic Material Zirconia Ceramic
Housing

Metal



Boot Size

0.9mm,

2.0mm,

3.0mm

Operating Temp Range -40~80°C Boot color

SM: Blue/Black/white

MM: Black/red

APC: Green

Suit Cable 0.6-3.0mm OD cable Available for

Not assembled Multi-Piece

Pre-assembled one piece



Environmental Performance:



Operating Environment: -40°C ~ + 80°C

Meets UL94-V0 Flammability Requirements

ROHS compliant



Optical Performance:



Meets Telcordia GR-326-Core issue

IL(Typical):SM<0.3dB; MM <0.3dB:

RL(Typical):SM >50dB; MM >35dB:



Mechanical Performance:



Connection Durability: 500 Matings cycles

Connector Repeatability: MM<0.2dB; SM <0.1dB



Application



Patch cord&pigtail produce&Manufacture



Connector drawing



Fiber Optic Connectors 2.0mm FC UPC Simplex MM Black For Patch Cord And Pigtail 0



Ferrule of SC



Fiber Optic Connectors 2.0mm FC UPC Simplex MM Black For Patch Cord And Pigtail 1



Company Information:



OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.




Fiber Optic Connectors 2.0mm FC UPC Simplex MM Black For Patch Cord And Pigtail 3

Fiber Optic Connectors 2.0mm FC UPC Simplex MM Black For Patch Cord And Pigtail 4



FAQ:



1. Are you the real factory?

Yes,we are the real factory more than 10 years



2. What is your main products?

Outdoor fiber optic cables; indoor fiber optic cables;FTTH Drop cables;

Indoor armored patch cords fiber cable; Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.



3. Do you have certificate for raw material?

We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers.



4. What is your delivery time?

Within 24 hours for normal kinds of fiber optic cable;

3~5 days for fiber optic patch cords with 10000 connectors.



5. MOQ: what is your minimum quantity?

MOQ for fiber optic cables: 1KM

There is no MOQ required for fiber optic patch cords,as there’s stock for normal kinds.



6. Do you have distributor in other country or domestic?

Until now, we sell our products to customers directly. And factory price could be offered.



7. Payment

For large orders: T/T, L/C

For small orders: T/T,Western Union and Paypal are acceptable
