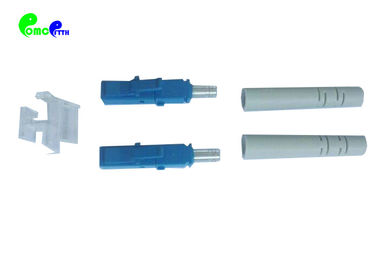

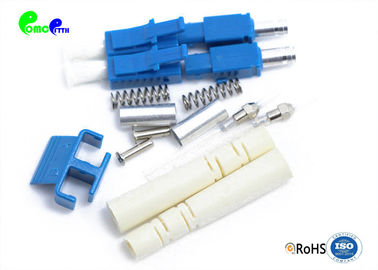

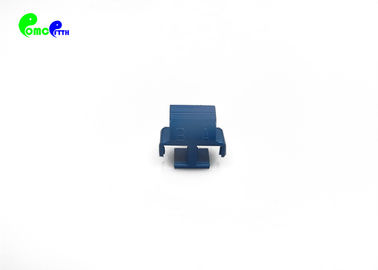

Low Insertion Loss LC UPC Duplex SM Connector 2.0mm Boot Match With 1.6mm / 2.0mm Cable

Place of Origin China
Brand Name OEM or OMC
Certification ROHS and ISO
Model Number LC UPC Duplex SM 2.0mm Red And Black Boot
Minimum Order Quantity 10 set
Price Negotiable
Packaging Details 200 pcs per plastic bag, This easy to take and well-protected fiber optical cable package has been labelled and marked by OMC as default.
Delivery Time 3 days
Payment Terms T/T, Western Union, alipay, paypal, credit card, , MoneyGram, L/C
Supply Ability 1000000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Products Low Insertion Loss LC UPC Duplex SM Connector 2.0mm Boot Match With 1.6mm / 2.0mm Cable Different Boot Shorter Boot, 45degree, 90degree,135degree Boot Are Available
Fiber Mode SM Match With Cable OD 1.6mm, 2.0mm
IL <0.3dB RL >50dB
High Light

fiber optic cable connectors

,

quick connect fiber optic connectors

Leave a Message
Product Description

Low Insertion Loss LC UPC Duplex SM Connector 2.0mm Boot Match With 1.6mm / 2.0mm Cable





Optical Connector is a reusable passive component which could be applied in fiber and Cable connection. They are widely used in ODF, ODN,PON etc.



Considered by some to be the modern replacement of the SC connector; its introduction was less successful, in part due to initially high license fees from inventor Lucent Corporation. Also a push-pull connector, the LC utilizes a latch as opposed to the SC locking tab and with a smaller ferrule it is known as a small form factor connector. Having half the footprint of the SC connector gives it huge popularity in datacoms and other high-density patch applications, as its combination of small size and latch feature make it ideal for densely populated racks/panels. With the introduction of LC compatible transceivers and active networking components, its steady growth in the FTTH arena is likely to continue.



OMC manufactures many sorts of fiber connectors. Such as SC,LC,ST,FC,MU,MTRJ,E2000 ,MPO,MTP,SMA,DIN,D4 etc.



Industrial Standard:



LC: TIA/EIA, FOCIS10, GR-326 EIA/TIA-604-10, IEC61754-20 and JIS C5973.



Products Details



Fiber Connector LC Ceramic Material Zirconia Ceramic
Housing

SM:Blue

MM:Beige

APC:Green



Boot Size

0.9mm,

2.0mm,

3.0mm

Operating Temp Range -40~80°C Boot color

SM: Blue /white/red

MM: Black/Beige/white

APC: Green

Suit Cable 0.6-3.0mm OD cable Available for

Not assembled Multi-Piece

Pre-assembled one piece



Environmental Performance:



Operating Environment: -40°C ~ + 80°C

Meets UL94-V0 Flammability Requirements

ROHS compliant



Optical Performance:



Meets Telcordia GR-326-Core issue

IL(Typical):SM<0.3dB; MM <0.3dB:

RL(Typical):SM >50dB; MM >35dB:



Mechanical Performance:



Connection Durability: 500 Matings cycles

Connector Repeatability: MM<0.2dB; SM <0.1dB



Ferrule for LC Connector



Low Insertion Loss LC UPC Duplex SM Connector 2.0mm Boot Match With 1.6mm / 2.0mm Cable 0

Low Insertion Loss LC UPC Duplex SM Connector 2.0mm Boot Match With 1.6mm / 2.0mm Cable 1



Drawing



LC 2.0mm Boot Simplex Connector Drawing



Low Insertion Loss LC UPC Duplex SM Connector 2.0mm Boot Match With 1.6mm / 2.0mm Cable 2



LC 2.0mm Boot Duplex Connector Drawing



Low Insertion Loss LC UPC Duplex SM Connector 2.0mm Boot Match With 1.6mm / 2.0mm Cable 3
