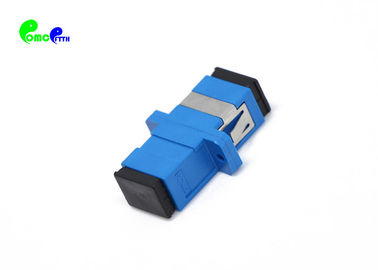

High Repeatability SC Simplex Single Mode Fiber Optic Adapter 9 / 125μm With Full Flange Blue Color

Place of Origin China
Brand Name OMC or OEM
Certification ROHS and ISO
Model Number SC Simplex Blue Plastic 9 / 125μm
Minimum Order Quantity 1 piece
Price Negotiable
Packaging Details 25 pcs in a plastic box, several boxes in a carton of 54*39*35cm
Delivery Time 3 days after payment confirmed
Payment Terms T/T, Western Union, L/C
Supply Ability 1000000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name High Repeatability SC Simplex Single Mode Fiber Optic Adapter 9 / 125μm With Full Flange Blue Color IL <0.2dB
Return Loss >50dB Durability 1000 Times
Temp -40°C To +80°C Certification ISO9001:2008,ROHS
Sleeve Ceramic SC 2.5mm Sleeve Material Plastic,metal
Withdrawal Force (g/f) 200~600 Application Patch Panels, ODF And Other Optical Connections
High Light

single mode fiber adapter

,

fiber optic cable adapter

Leave a Message
Product Description

High Repeatability SC Simplex Single Mode Fiber Optic Adapter 9 / 125μm With Full Flange Blue Color





Our range of high quality SC adapters have high precision alignment sleeves for reliability and improved reconnectability. A ceramic sleeve is supplied to ensure a high precision alignment. The housing is available in different colors with options for flange or flangeless body, metal clips or inbuilt clips. A protective cap is provided at each end of the adaptor with the same color as the adaptor.



Optical Adapter are developed to couple and mate two identical or two different (hybrid) connector plugs. The housing of the Adaptors of the last generation has a reference key for the right position coupling and zirconia or phosphorus bronze split sleeve for high alignment.



OMC could supply standard types of Adaptors, such as FC, SC, LC, ST, MU, MTRJ, MPO/MTP etc. Hybrid is also available.

OMC Adaptors design, material and manufacturing process assure long life and high repeatability of optical performances even for different brand connectors mating.



Spec Performance:



Connector Type SC-SC Polish Type UPC
Fiber Counts Simplex Fiber Mode Singlemode
Insertion Loss ≤0.2dB Durability ≤0.1dB
Flammability Rate UL94-V0 Working Temperature -25~70°C



Material



Parts name Material Color
Housing body PC/PBT+GF/PEI Blue, Green, Beige, Aqua, Magenta or Customized
Sleeve High precision Ceramic sleeve White
Inside hook PBT/PEI Blue, Green, Beige, Aqua, Magenta or Customized
Metal Plate Stainless steel -
Dust Cover PE/ABS Black or Customized



Product Details



High Repeatability SC Simplex Single Mode Fiber Optic Adapter 9 / 125μm With Full Flange Blue Color 0

High Repeatability SC Simplex Single Mode Fiber Optic Adapter 9 / 125μm With Full Flange Blue Color 1



Application:



1. Patch panels, ODF and other optical connections.

2. Optical networks demarcation and monitoring point



Drawing:



High Repeatability SC Simplex Single Mode Fiber Optic Adapter 9 / 125μm With Full Flange Blue Color 2



Packaging & Shipping



Several piece in one plastic box,
Several boxes then packed in a 54*39*35 carton paper box

Other size carton is available too.



High Repeatability SC Simplex Single Mode Fiber Optic Adapter 9 / 125μm With Full Flange Blue Color 3



Company Information:



OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.



High Repeatability SC Simplex Single Mode Fiber Optic Adapter 9 / 125μm With Full Flange Blue Color 4

High Repeatability SC Simplex Single Mode Fiber Optic Adapter 9 / 125μm With Full Flange Blue Color 5

High Repeatability SC Simplex Single Mode Fiber Optic Adapter 9 / 125μm With Full Flange Blue Color 6


High Repeatability SC Simplex Single Mode Fiber Optic Adapter 9 / 125μm With Full Flange Blue Color 8

High Repeatability SC Simplex Single Mode Fiber Optic Adapter 9 / 125μm With Full Flange Blue Color 9
