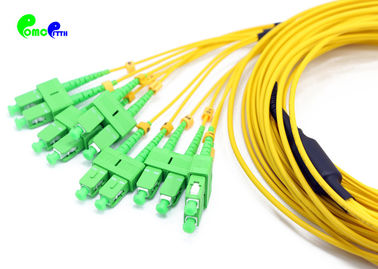

MTP Trunk Cable Breakout 2.0mm 12F SM MTP Female to SC APC Duplex 3.0mm Jacket OD Yellow Elite Loss Type B 0.5m

Place of Origin China
Brand Name USconec
Certification ROHS and ISO
Model Number Breakout 2.0mm 12F SM MTP Female to SC APC Duplex
Minimum Order Quantity 1 pcs
Price Negotiable
Packaging Details 1 piece in a plastic bag, several pieces in a master bag, then packed in a carton of 54*39*35cm
Delivery Time 1 week
Payment Terms Western Union, T/T, alipay, paypal,credit card
Supply Ability 100000 pcs per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Products MTP Trunk Cable Breakout 2.0mm 12F SM MTP Female To SC APC Duplex 3.0mm Jacket OD Yellow Elite Loss Type B 0.5m Fiber Mode OS2 SMF 9/125μm
MTP Connector IL 0.35dB Max(0.15dB Typ.) MTP Connector RL ≥60dB
Jacket OD 3.0mm Fan-Out Diameter 2.0mm
Tensile Strength >70N Application Data Center Of FTTH FTTB FTTX Network
Operating Temperature -40 To + 85°C Interchangeability ≤0.35dB
High Light

mtp breakout cable

,

mtp patch cable

Leave a Message
Product Description

MTP Trunk Cable Breakout 2.0mm 12F SM MTP Female to SC APC Duplex 3.0mm Jacket OD Yellow Elite Loss Type B 0.5m





MTP- SC SM 12F harness cables provide a transition from multi-fiber cables to individual fibers or duplex connectors. Known as MTP breakout cable or MTP fan-out cable as well, it has a single MTP connector on one end that breaks out into 6 or 12 connectors, and these connector types can be LC, SC, ST, etc. It’s available in 4, 6, 8, or 12 fiber ribbon configurations with lengths about 10, 20, 30 meters and other customized lengths. MTP harness cable provides a reliable, cost-effective cabling system for migrating from legacy 10G to higher speed 40G/100G Ethernet. The following are the advantages of MTP/MPO harness cable:

- Space saving—The active equipment and backbone cable are good for saving space.
- Easy deployment—Factory terminated system saves installation and network reconfiguration time.
- Reliability—High standard components are used in the manufacturing process to guarantee the product quality.

MPO-SC Fiber Patch Cord are terminated with MTP and SC/ connector on both end. All of OMC’s MTP Connectors are from USconec directly.

MTP products’ Standard:

- Meets IEC Standard IEC-61754-7; JIS C5982; TIA-604-5(FOCIS5); Telcordia GR-1435-CORE compliant
- Structured cabling per TIA-568-C

Other connectors’ Industrial Standard:

SC: TIA/EIA, FOCIS3, GR-326.NTT-SC IEC61754-4 and JIS C5973.

MTP patch cord’s Specification:



Connector A MTP APC 8degree 12F Connector B SC UPC Duplex
Fiber Mode OS2 SMF 9/125μm Wavelength 1310/1550nm
MTP Connector IL 0.35dB Max(0.15dB Typ.) SC Connector IL ≤0.2dB
MTP Connector RL ≥60dB SC Connector RL ≥60dB
Attenuation at 1310nm ≤0.32dB/km Attenuation at 1550nm ≤0.18dB/km
Jacket OD 3.0mm Fan-Out Diameter 2.0mm
Installation Tensile Load 100 N Long-Term Tensile Load 50 N
Storage Temperature -40°C to +85°C Operating Temperature -10°C to +70°C
Cable Jacket LSZH Fiber Count 12 Fibers



 Features:


- Low insertion loss, high return loss
- MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
- Economical solution for mass-termination of fiber
- Designed for low loss and standard loss SM and MM applications
- Ruggedized round cable, oval cable and bare ribbon options available
- Color coded housings available to differentiate fiber type, polish type and/or connector grade
- Good in repeatability and exchangeability

AVAILABILITY:

- Ribbon and bundle cable available;
- Patch cord, pigtail cable assemblies available.
- MT-MT ribbon patch cord is available.
- MPO Loopback available



 MTP Trunk Cable Breakout 2.0mm 12F SM MTP Female to SC APC Duplex 3.0mm Jacket OD Yellow Elite Loss Type B 0.5m 0

 MTP Trunk Cable Breakout 2.0mm 12F SM MTP Female to SC APC Duplex 3.0mm Jacket OD Yellow Elite Loss Type B 0.5m 1


High Quality MTP Cable Guarantee

1. High-performance polishing machine, and complemented by precision plates holders designed for MT ferrules.
2. 3D interferometer provides verification of MTP/MPO polishing process, and making all parameters of the polished MT ferrule complies and exceeds industry standards.
3. The flexibility of the tester provides the complete spectrum of optical testing required for complex and high fiber count cable assemblies.


MTP Trunk Cable Breakout 2.0mm 12F SM MTP Female to SC APC Duplex 3.0mm Jacket OD Yellow Elite Loss Type B 0.5m 2


MTP Connector Types

MTP Trunk Cable Breakout 2.0mm 12F SM MTP Female to SC APC Duplex 3.0mm Jacket OD Yellow Elite Loss Type B 0.5m 3

Two other clearly visible features are the noses and guide grooves (keys) on the top side.
(Note: Female connector need to connect with male connector type.)





Length Tolerance



MTP Trunk Cable Breakout 2.0mm 12F SM MTP Female to SC APC Duplex 3.0mm Jacket OD Yellow Elite Loss Type B 0.5m 4



Overall Length(L)(m) length of tolerance(cm)
0<L<1 +5/-0
1<L<10 +10/-0
10<L<40 +15/-0
40<L +0.5% x L/-0



Company Information:



OMC industry co., limited, which was founded by an expert team, has been exporting FTTX passive products since 2007. We focus on providing innovative and integrated FTTX solutions for a variety of applications/Networks. Our capabilities include product/solution design, development, enhancement and integration. Our products are among the highest performing in the industry and truly represent the best values in the industry. We also offer training, pre and post-sales support. We help you select the right products for your Optical network's needs.



dustfree wrokshop.jpg

MTP Trunk Cable Breakout 2.0mm 12F SM MTP Female to SC APC Duplex 3.0mm Jacket OD Yellow Elite Loss Type B 0.5m 6

MTP Trunk Cable Breakout 2.0mm 12F SM MTP Female to SC APC Duplex 3.0mm Jacket OD Yellow Elite Loss Type B 0.5m 7

MTP Trunk Cable Breakout 2.0mm 12F SM MTP Female to SC APC Duplex 3.0mm Jacket OD Yellow Elite Loss Type B 0.5m 8

MTP Trunk Cable Breakout 2.0mm 12F SM MTP Female to SC APC Duplex 3.0mm Jacket OD Yellow Elite Loss Type B 0.5m 9


MTP Trunk Cable Breakout 2.0mm 12F SM MTP Female to SC APC Duplex 3.0mm Jacket OD Yellow Elite Loss Type B 0.5m 11

MTP Trunk Cable Breakout 2.0mm 12F SM MTP Female to SC APC Duplex 3.0mm Jacket OD Yellow Elite Loss Type B 0.5m 12
